GE8061Si16.05A955

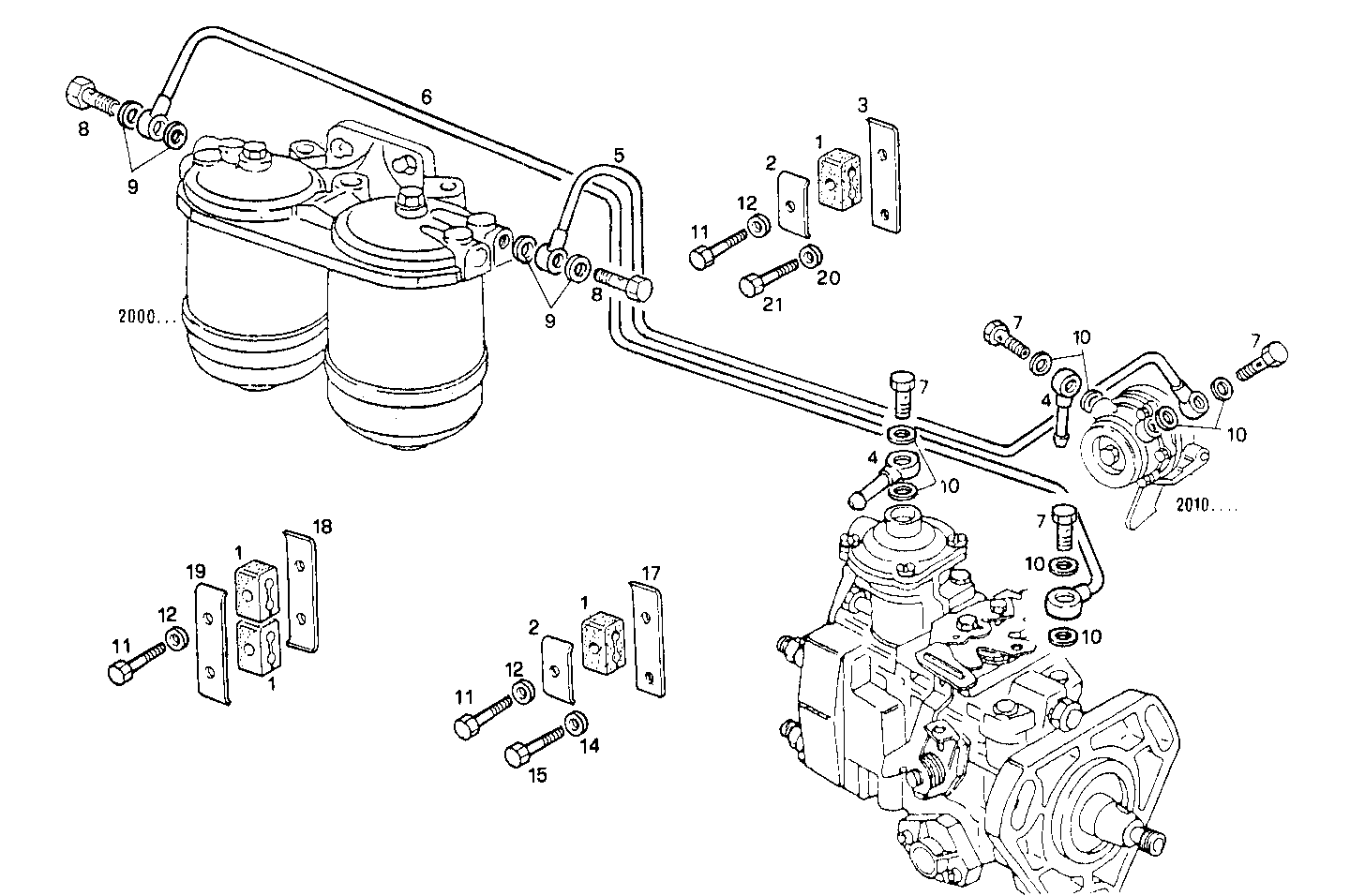

2030.071 FUEL LINES

Iveco/FPT FUEL LINES

Item Part number Description
1 4659217 DOWEL
2 4659218 CLIP
3 98458261 PLATE
4 98416591 SWIVEL COUPLING
5 8018089 FUEL LINE
6 8018090 FUEL LINE
7 4864082 BANJO BOLT M12X1,5X25 MM
8 4864083 SCREW CONNECTOR M14X1,5X30 MM
9 98474308 SEAL GASKET Ø14X22 MM
10 4858607 WASHER Ø12X17 MM SP=1,5 MM
11 10978221 HEXAGON BOLT M5X25 MM
12 17494631 SPRING WASHER Ø5 MM
14 17091071 SPRING WASHER Ø12X24 SP=2,8 MM
15 15970524 HEXAGON BOLT M10X1,25X20
17 4747020 PLATE
18 4747018 PLATE
19 4747019 PLATE
20 17090274 WASHER Ø10X20 MM
21 16609824 HEXAGON BOLT M12X1,75X25 MM
