GE8061Si16.05A955

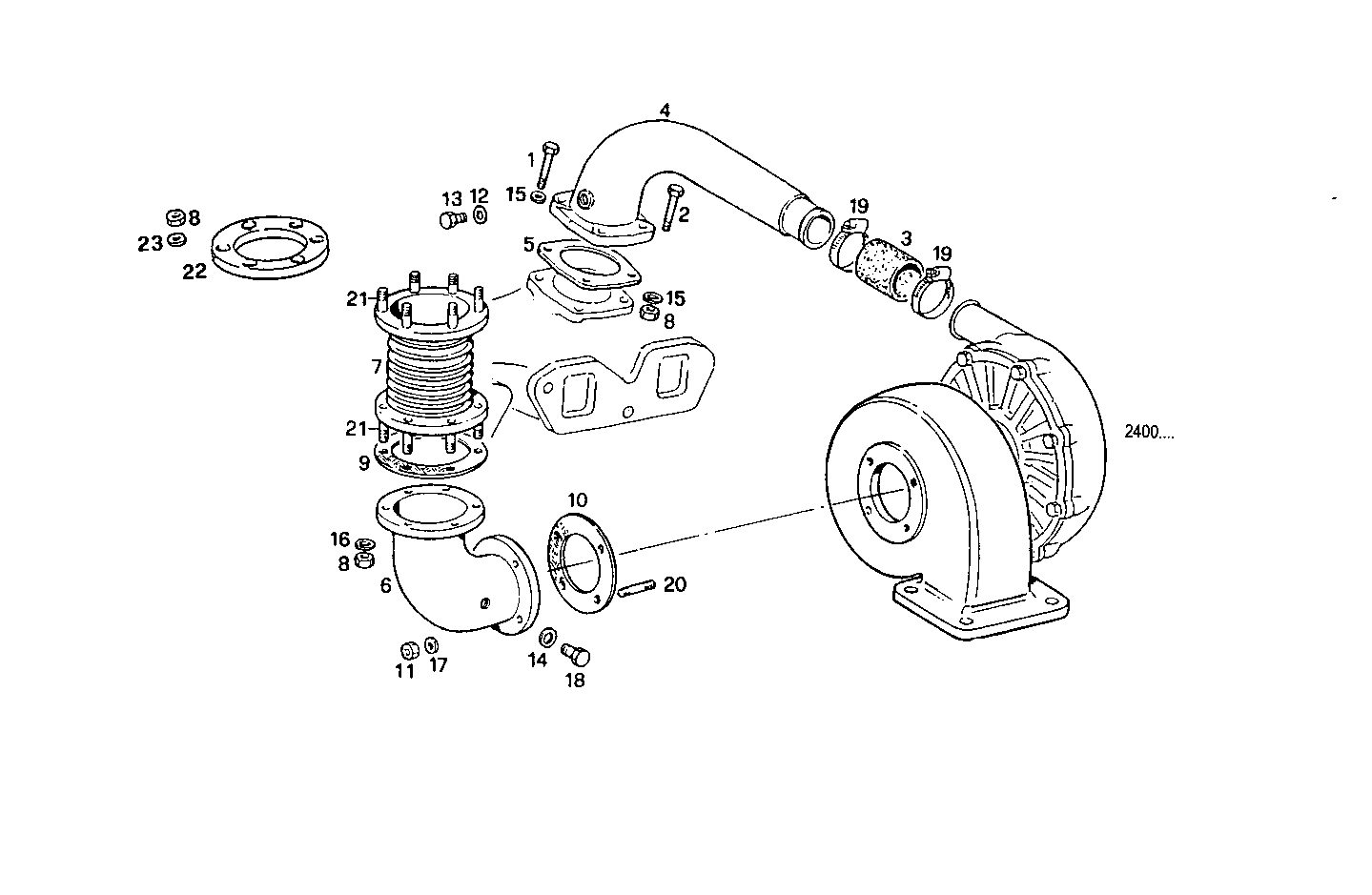

2420.071 SUPERCHARGING LINES

Iveco/FPT SUPERCHARGING LINES

Item Part number Description
1 16605734 HEXAGON BOLT M8X30 MM
2 16605924 SCREW M8X40 MM
3 98448211 TURBOCHARGER HOSE M16X55 MM
4 4754495 INTAKE ELBOW
5 98400790 FLAT ENGINE GASKET
6 8105001 EXHAUST ELBOW
7 4935378 EXHAUST BELLOWS
8 17037931 HEXAGON NUT M8X1,25
9 8009606 GASKET
10 4734747 GASKET
11 17038121 HEXAGON NUT M10
12 16508460 WASHER 22x27x1,5
13 16992611 THREADED PLUG M22X1,5
14 4858607 WASHER Ø12X17 MM SP=1,5 MM
15 17094914 WASHER 8x16
16 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
17 17090174 SPRING WASHER Ø10X20 MM
18 16992211 THREADED PLUG M12X1,5
19 4788416 CLIP
20 16731224 STUD M10X25 MM
21 13516921 STUD M8X12X22 MM
22 4919183 FLANGE
23 16665514 WASHER Ø8 MM
