GE8061Si16.05A955

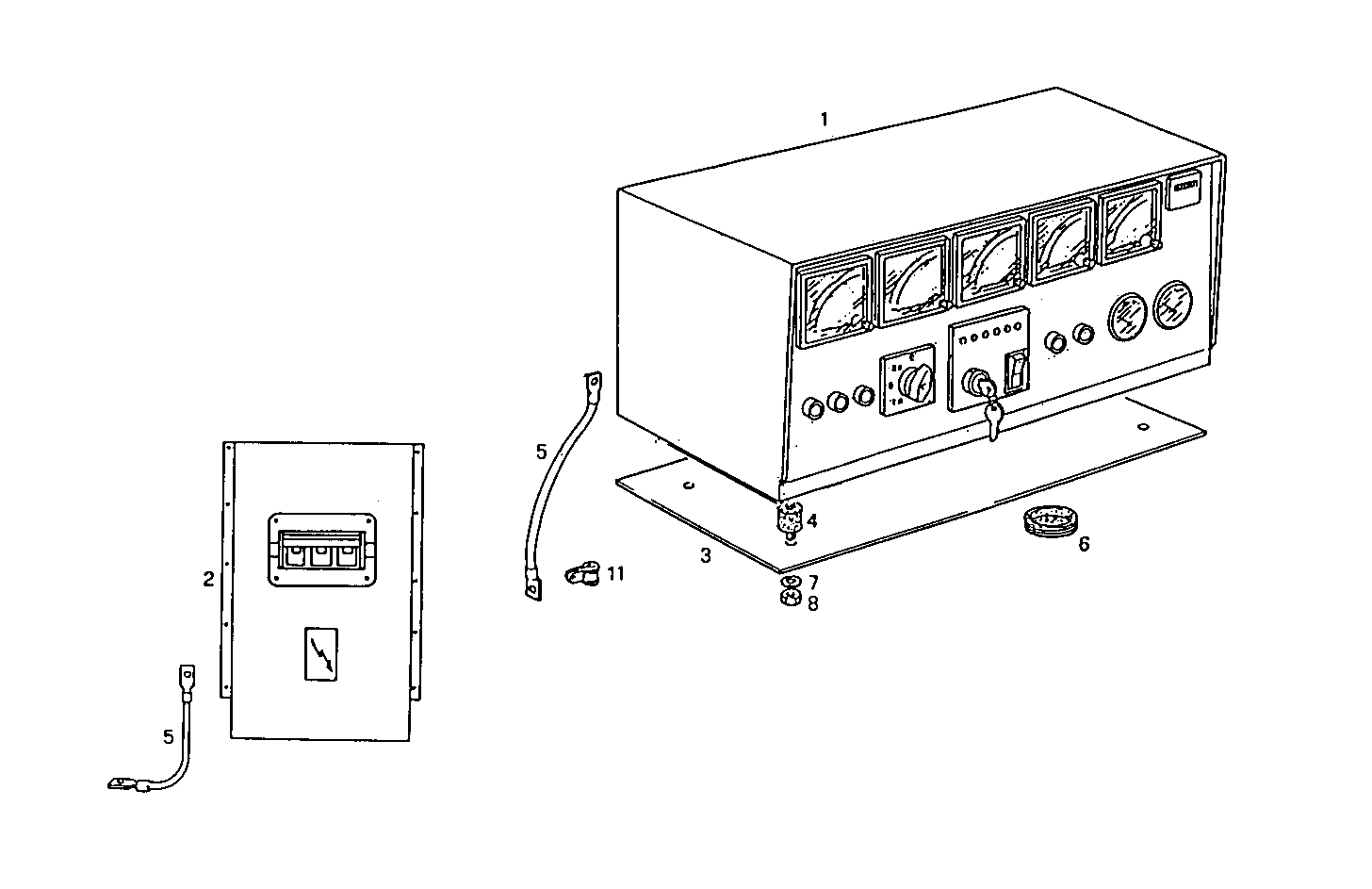

A60330002 MANUAL CONTROL BOARD FOR ELECT. MACHINE - MARELLI

Iveco/FPT MANUAL CONTROL BOARD FOR ELECT. MACHINE

Item Part number Description
1 8019302 CONTROL BOARD ASSY 380V 50-60HZ
2 8010116 SWITCH 125A
3 8019140 COVER
4 8104155 DOWEL
5 8110852 EARTH WIRE
6 8113214 INSULATING RING
7 17088474 WASHER Ø6X12 MM
8 17037821 HEXAGON NUT M6X1
11 17314890 CLIP
