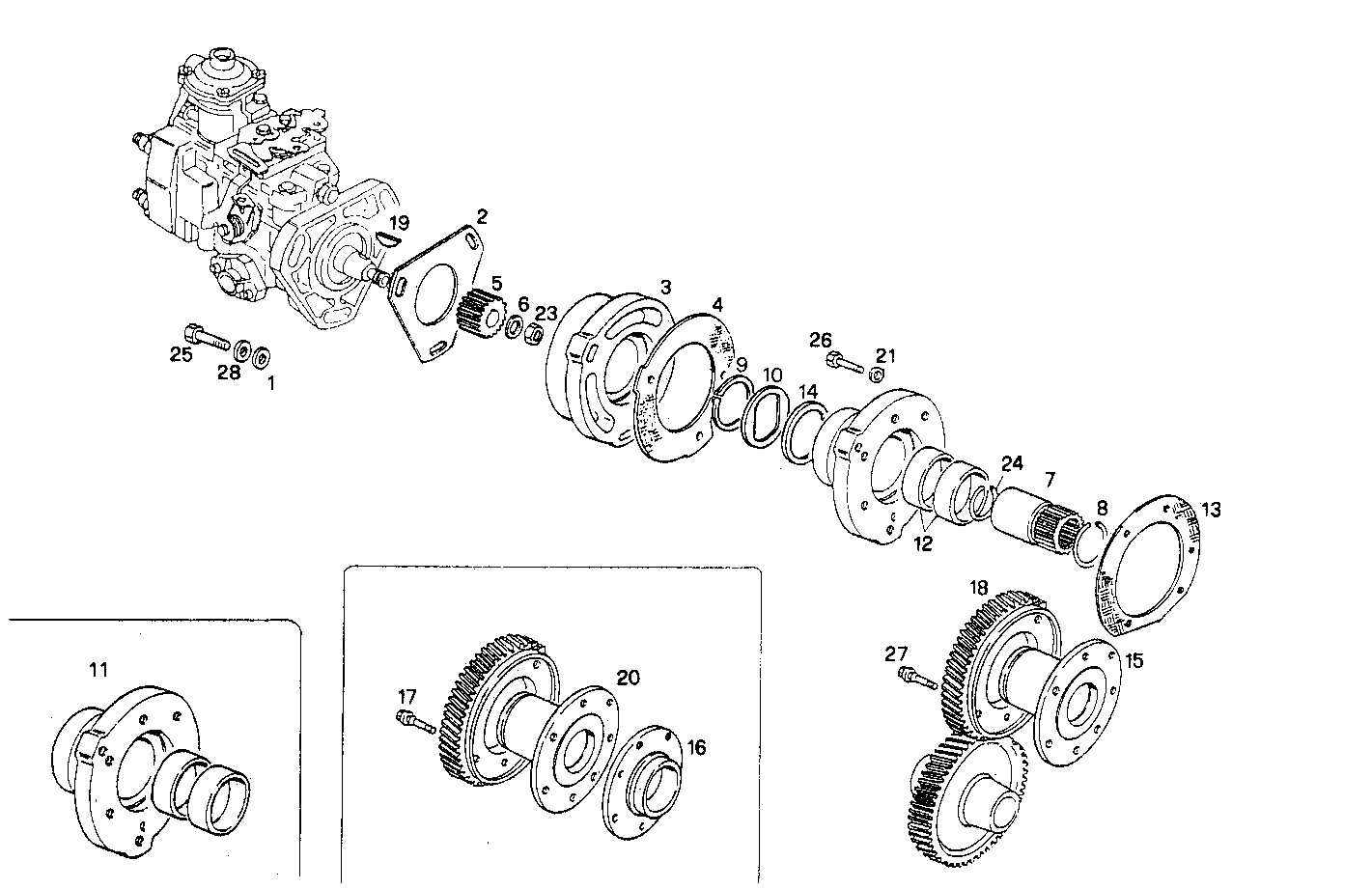

1410.052 INJECTION PUMP DRIVE

Iveco/FPT INJECTION PUMP DRIVE

Item Part number Description
1 12647124 WASHER Ø8X20 MM
2 4851923 FLAT ENGINE GASKET
3 4799016 SPACING BAR
4 4851922 FLAT ENGINE GASKET
5 4807014 INJECT.PUMP BUSH 71° 18'
6 4799086 SPRING WASHER
7 4849360 CONNECTOR SLEEVE
8 4770452 CIRCLIP
9 4708213 CIRCLIP
10 4667498 WASHER
11 4769710 SUPPORT ASSY
12 4769427 BUSH VANDERVELL
13 4849996 FLAT ENGINE GASKET
14 4809425 WASHER Ø50 MM
15 97496177 INJECT.PUMP SPIND [from 737249]
16 4788909 INJECT.PUMP SLEEVE
17 4798844 SCREW
18 4769596 INJ.PUMP DRIV.GEA
19 17221020 KEY M12X110 MM
20 4849363 INJECT.PUMP SPIND [up to 737248]
21 17094914 WASHER 8x16
23 17038821 HEXAGON NUT M14
24 17085376 CIRCLIP Ø30 MM
25 16605824 HEXAGON BOLT M8X35 MM
26 16605624 HEXAGON BOLT M8X25 MM (8.8)
27 98401723 HEXAGON BOLT M8X1,25X12 MM
28 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
