GE8061Si16.06A957

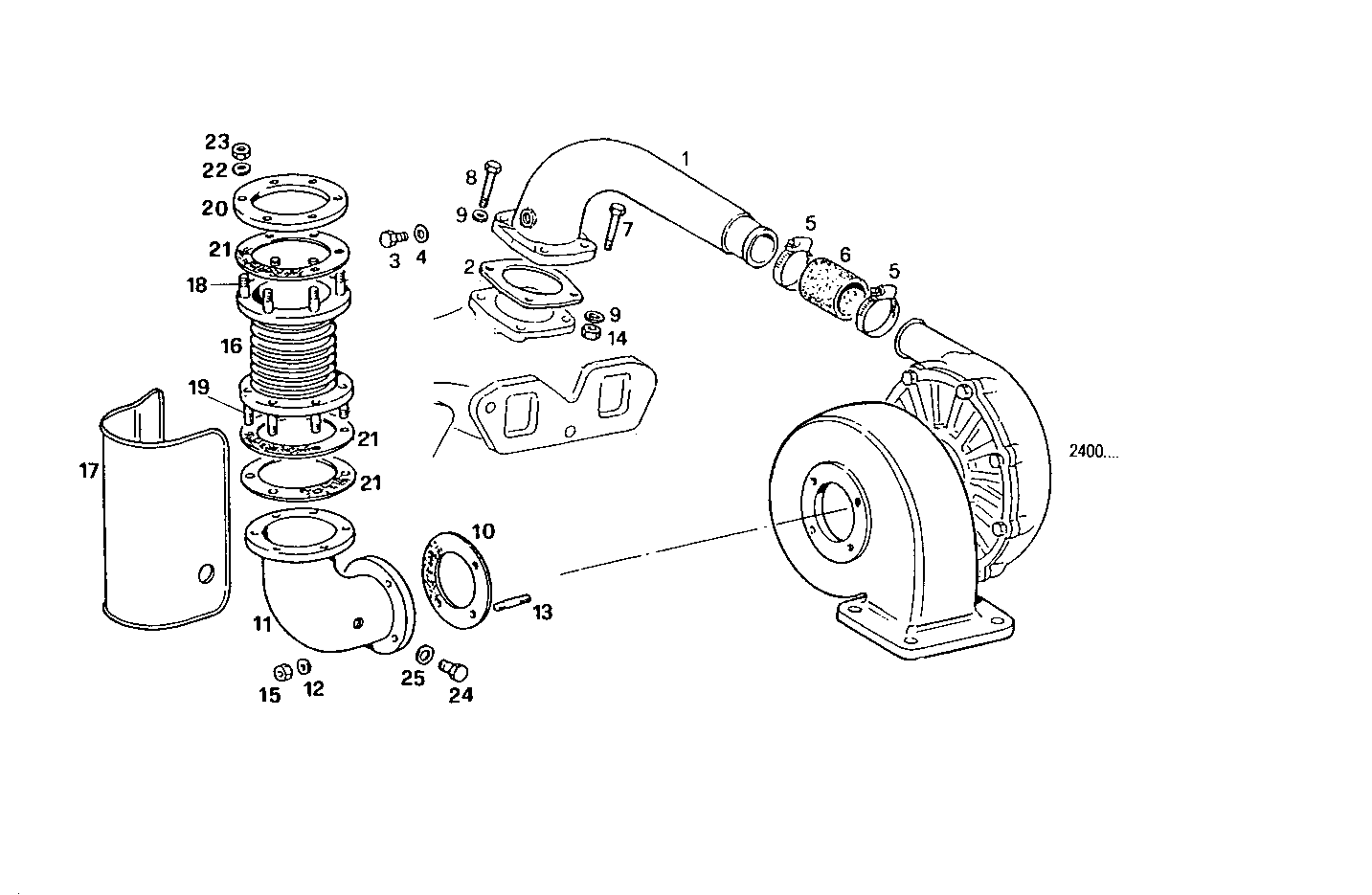

2420.100 SUPERCHARGING LINES

Iveco/FPT SUPERCHARGING LINES

Item Part number Description
1 4755495 AIR PIPE/DUCT
2 98400790 FLAT ENGINE GASKET
3 10305171 PLUG M22X1,5
4 10279560 SEAL GASKET Ø22,2 MM
5 98490783 CLIP Ø55-65 MM
6 98448211 TURBOCHARGER HOSE M16X55 MM
7 16605924 SCREW M8X40 MM
8 16605624 HEXAGON BOLT M8X25 MM (8.8)
9 17094914 WASHER 8x16
10 4734747 GASKET
11 8077189 EXHAUST ELBOW
12 17038121 HEXAGON NUT M10
13 16731224 STUD M10X25 MM
14 17037931 HEXAGON NUT M8X1,25
15 17090174 SPRING WASHER Ø10X20 MM
16 4935378 EXHAUST BELLOWS
17 8008237 PROTECTION
18 13516921 STUD M8X12X22 MM
19 13517221 STUD M8X12X30 MM
20 4919183 FLANGE
21 8009606 GASKET
22 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
24 16992211 THREADED PLUG M12X1,5
25 4858607 WASHER Ø12X17 MM SP=1,5 MM
