GE8061Si16.06A957

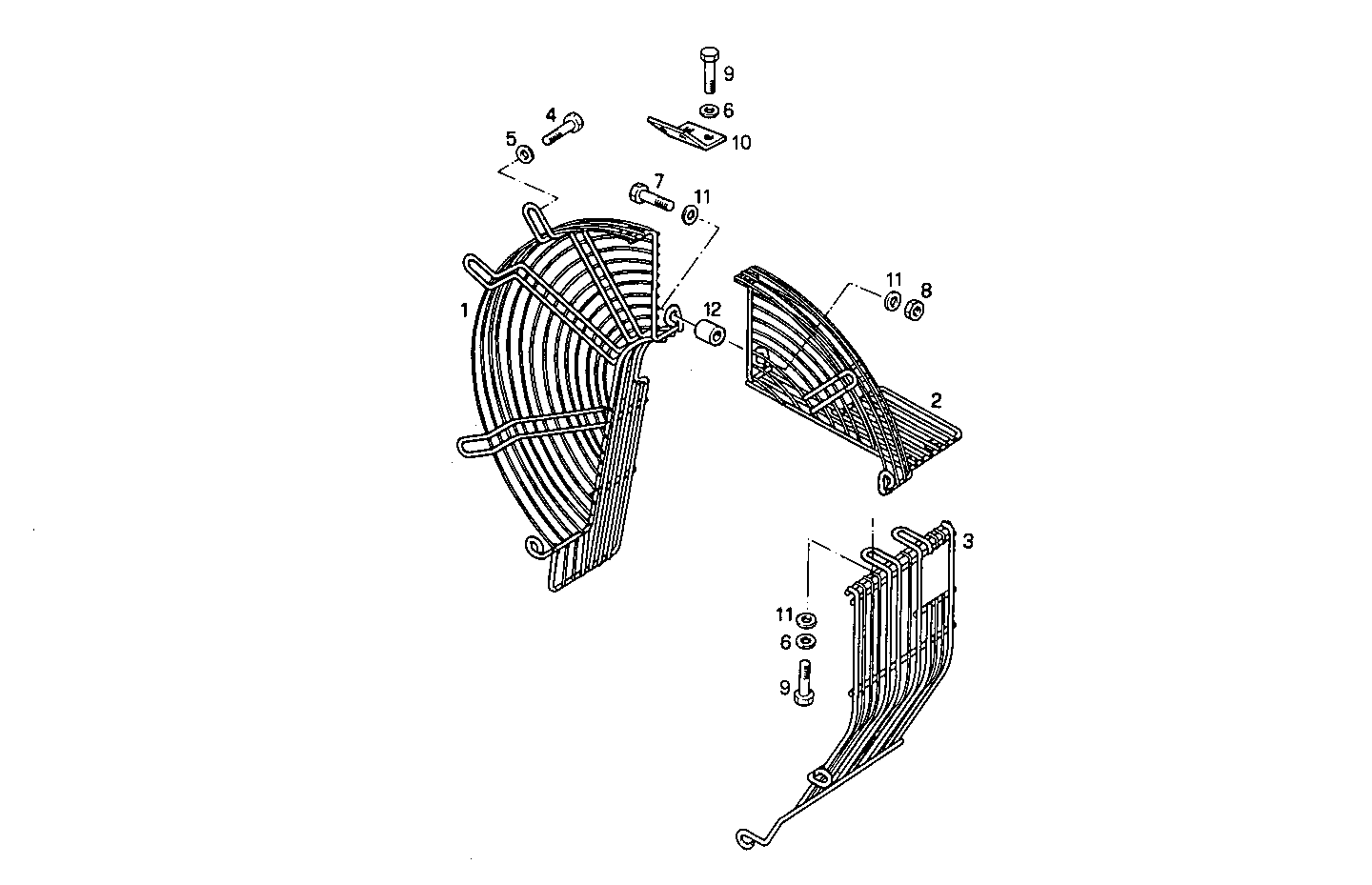

A48060018 GUARD - for fan
| Item | Part number | Description |
|---|---|---|
| 1 | 8008666 | PROTECTION |
| 2 | 8008665 | PROTECTION |
| 3 | 8008406 | PROTECTION |
| 4 | 16605524 | HEXAGON BOLT M8X20 MM |
| 5 | 17089774 | SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
| 6 | 17088474 | WASHER Ø6X12 MM |
| 7 | 16605734 | HEXAGON BOLT M8X30 MM |
| 8 | 17037931 | HEXAGON NUT M8X1,25 |
| 9 | 16603724 | HEXAGON BOLT M6X20 MM (8.8) |
| 10 | 8009454 | RETAINER |
| 11 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 12 | 8105569 | SPACING BAR [up to ...] |
