GE8061Si16.06A958

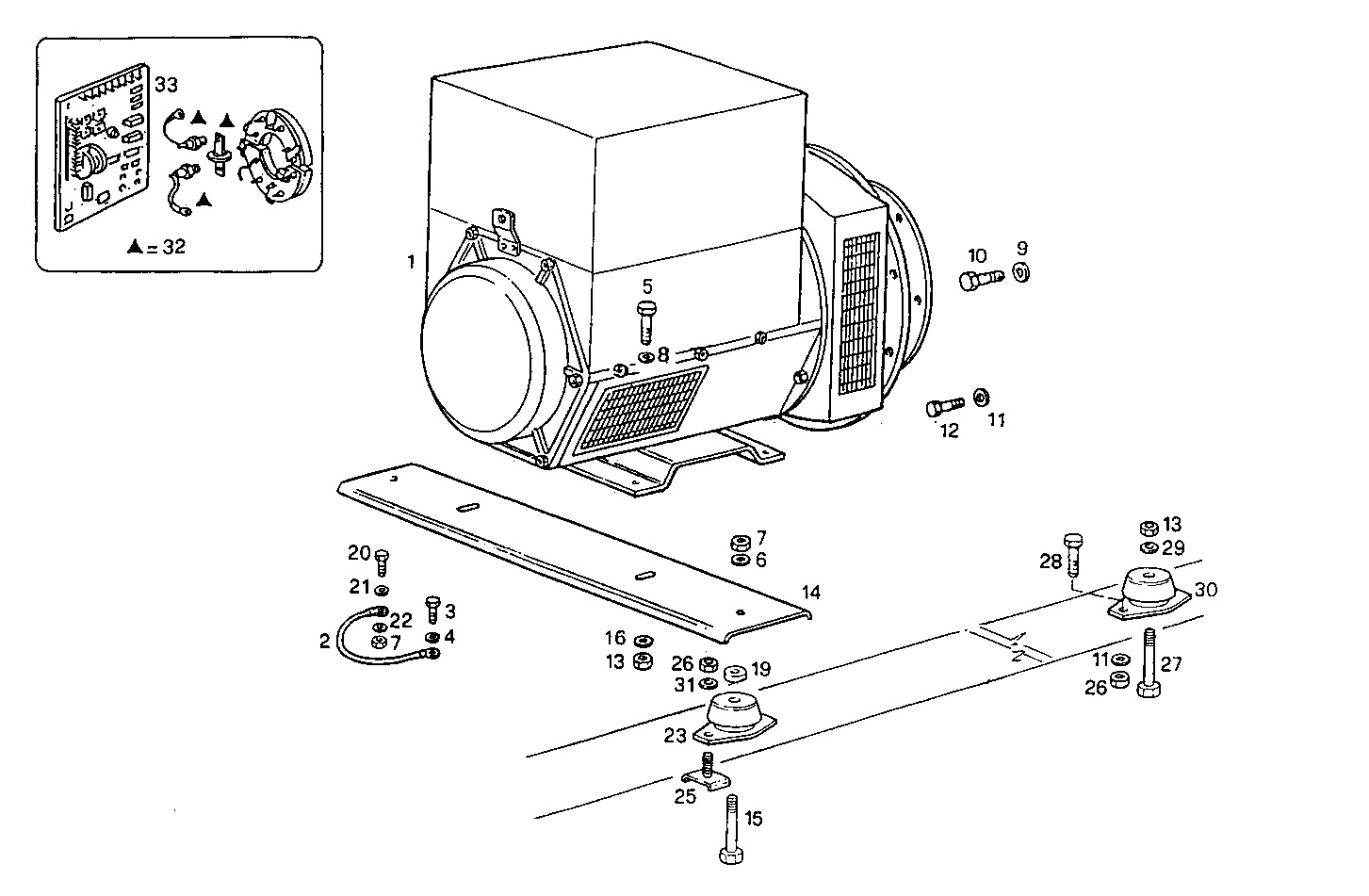

A37010045 SINGLE BEARING ELECTRIC MACHINE - STAMFORD

Iveco/FPT SINGLE BEARING ELECTRIC MACHINE

Item Part number Description
1 8015606 ELECTRIC MACHINE UCI 274 C 14 50-60HZ
2 8110852 EARTH WIRE
3 16043124 SCREW M8X14 MM
4 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
5 16614824 SCREW M16X50
6 17093174 WASHER Ø24X46X5,4 MM
7 17039721 HEXAGON NUT M24
8 17092174 SPRING WASHER Ø16X32X3,4
9 17494934 WASHER Ø10X18,1X2,2 MM
10 15970521 HEXAGON BOLT M10X20 MM
11 17090174 SPRING WASHER Ø10X20 MM
12 15970921 HEXAGON BOLT M10X1,25X35 MM
13 17038921 NUT M16X2
14 8015167 SUPPORT
15 16620624 SCREW M24X130
16 4929369 WASHER
19 8016025 SPACING BAR
20 16605624 HEXAGON BOLT M8X25 MM (8.8)
21 17094714 WASHER Ø6,4X12 MM
22 17710174 WASHER Ø6X11 MM
23 4955094 RUBBER PAD
25 8015168 SCREW
26 17037821 HEXAGON NUT M6X1
27 16614624 HEXAGON BOLT M16X40 MM
28 16607624 SCREW M10X25
29 17092374 SPRING WASHER Ø16X34X3,6 MM
30 4911960 RUBBER PAD
31 17091674 WASHER Ø14X27X3,0 MM
32 8092769 KIT-GENERATOR Stamford
33 8106738 EL.MACHINE VOLTAGE REGUL. Stamford
