GE8061SRi25.05A955

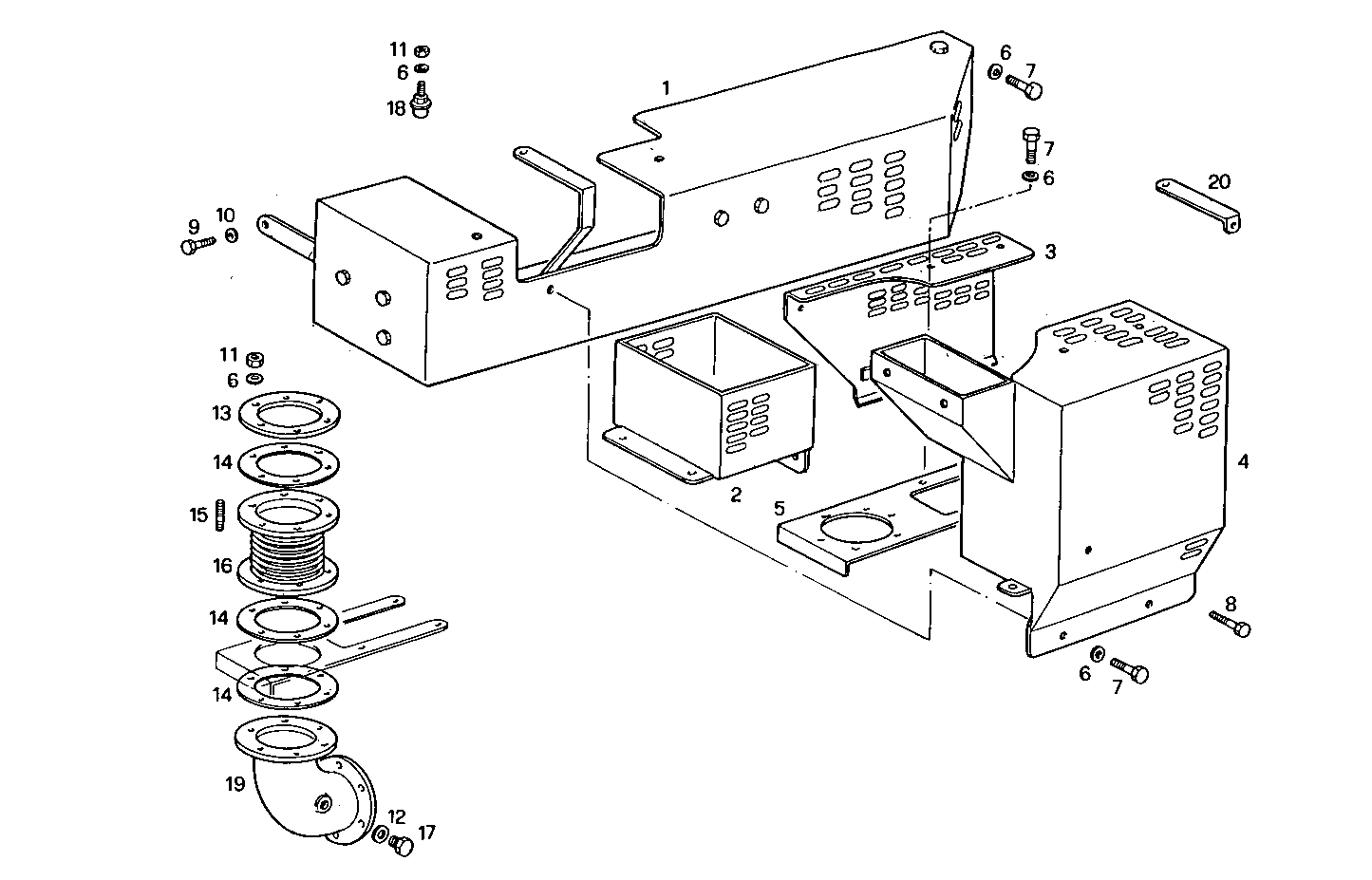

A48040011 GUARD - for exhaust manifold [D 09-1995] [from09-1995]

Iveco/FPT GUARD

Item Part number Description
1 8020535 PROTECTION
2 8020721 PROTECTION
3 8020757 PROTECTION
4 8025417 PROTECTION
5 8020793 SUPPORT
6 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
7 16605424 SCREW M8X16 MM (8.8)
8 11306921 SCREW M10X1,25X30
9 15970521 HEXAGON BOLT M10X20 MM
10 17090174 SPRING WASHER Ø10X20 MM
11 17037931 HEXAGON NUT M8X1,25
12 4858607 WASHER Ø12X17 MM SP=1,5 MM
13 4919183 FLANGE
14 8009606 GASKET
15 16729524 STUD M8X1,25X30
16 4935378 EXHAUST BELLOWS
17 16992211 THREADED PLUG M12X1,5
18 8009967 NUT
19 8105001 EXHAUST ELBOW
20 8011585 RETAINER
