GE8061SRi27.05A956

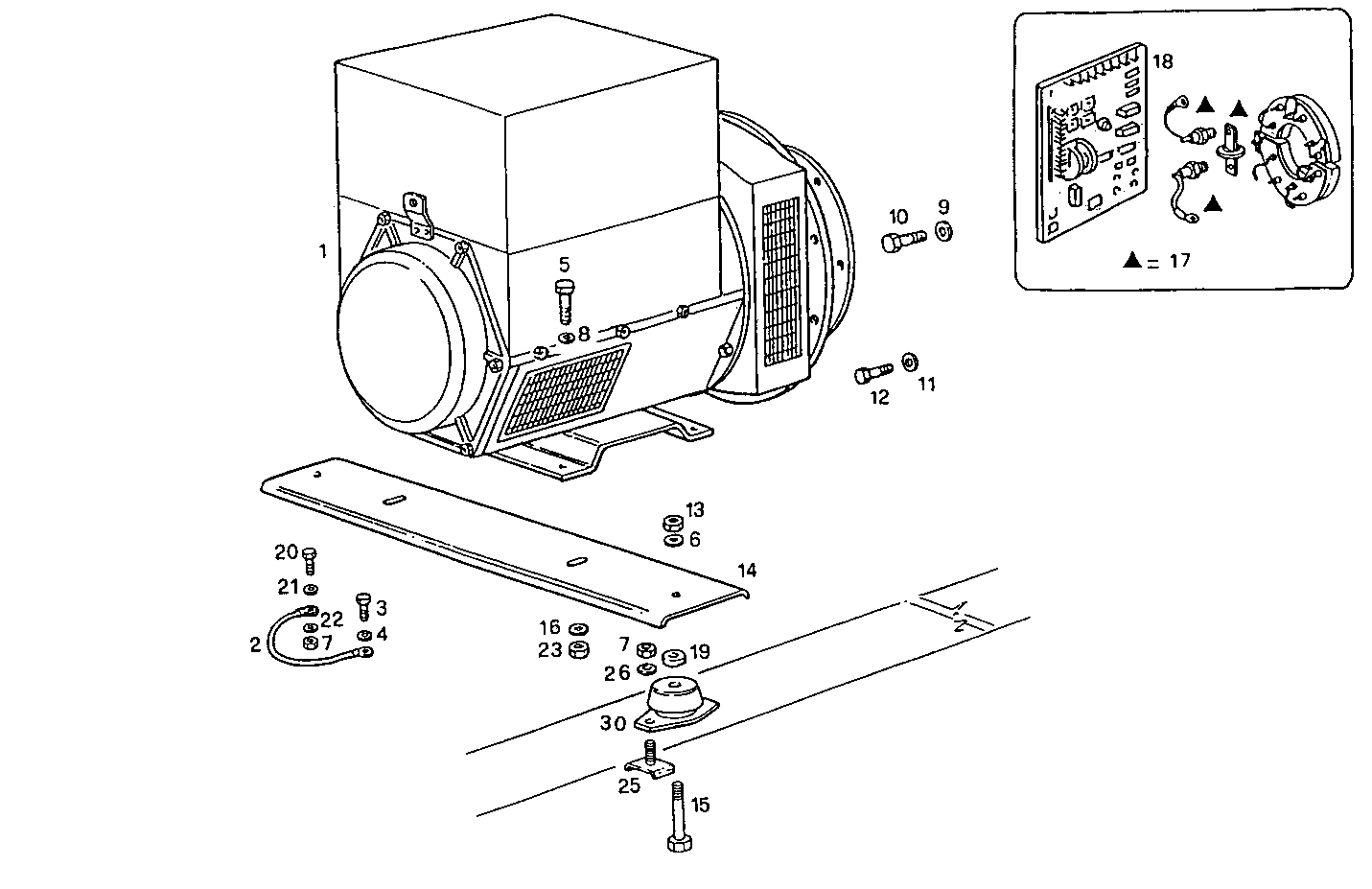

A37010075 SINGLE BEARING ELECTRIC MACHINE - STAMFORD

Iveco/FPT SINGLE BEARING ELECTRIC MACHINE

Item Part number Description
1 8005809 ELECTRIC MACHINE UCI 274 F 50-60HZ
2 8110852 EARTH WIRE
3 16043124 SCREW M8X14 MM
4 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
5 16617224 SCREW M20X50
6 17092374 SPRING WASHER Ø16X34X3,6 MM
7 17038121 HEXAGON NUT M10
8 4279447 WASHER
9 17494934 WASHER Ø10X18,1X2,2 MM
10 15970521 HEXAGON BOLT M10X20 MM
11 17090174 SPRING WASHER Ø10X20 MM
12 16607824 HEXAGON BOLT M10X35 MM (8.8)
13 17038921 NUT M16X2
14 8015167 SUPPORT
15 16615224 HEXAGON BOLT M16X70 MM
16 17092774 WASHER Ø20X38X4,6 MM
17 8092769 KIT-GENERATOR Stamford
18 8106738 EL.MACHINE VOLTAGE REGUL. Stamford
19 8010712 SPACING BAR
20 16607724 HEXAGON BOLT M10X1,5X30 MM (8.8)
21 17095004 WASHER Ø10X18X2 MM
22 17710274 WASHER
23 17039321 NUT M20X2,5
25 8016024 SCREW
26 17090974 SPRING WASHER Ø12X24 MM
30 4911960 RUBBER PAD
