GE8061SRi27.05A956

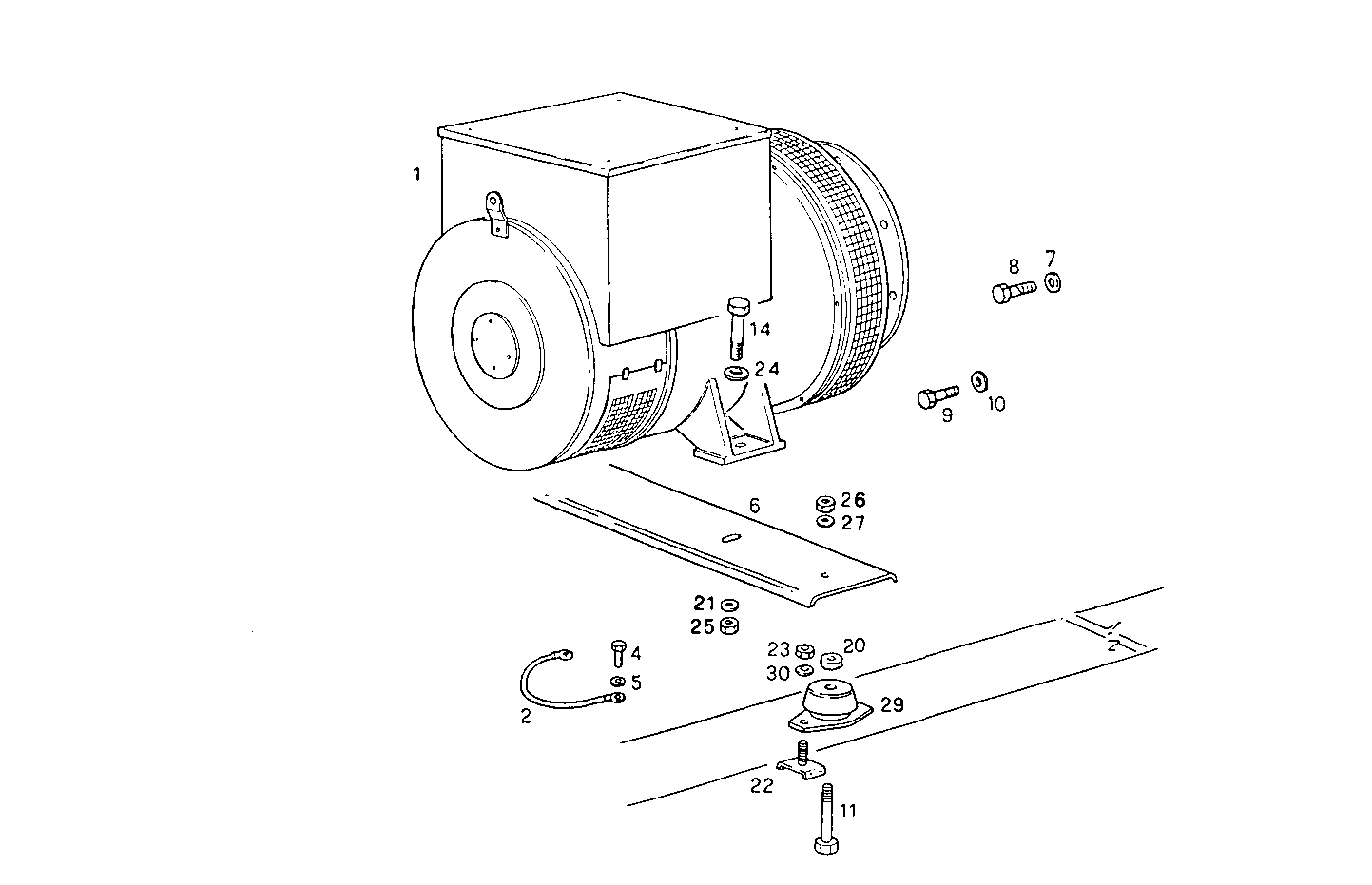

A37110083 SINGLE BEARING ELECTRIC MACHINE - LEROY

Iveco/FPT SINGLE BEARING ELECTRIC MACHINE

Item Part number Description
1 8027687 ELECTRIC MACHINE LSA 442 L11 50-60HZ
2 8110852 EARTH WIRE
4 16605424 SCREW M8X16 MM (8.8)
5 17089471 SPRING WASHER Ø16X8 MM SP=1,4 MM
6 8015167 SUPPORT
7 17494934 WASHER Ø10X18,1X2,2 MM
8 15970521 HEXAGON BOLT M10X20 MM
9 16607824 HEXAGON BOLT M10X35 MM (8.8)
10 17090174 SPRING WASHER Ø10X20 MM
11 16615024 SCREW M16
14 16617424 SCREW M20X60
20 8103400 SPACING BAR
21 17092774 WASHER Ø20X38X4,6 MM
22 8016024 SCREW
23 17038121 HEXAGON NUT M10
24 4279447 WASHER
25 17039321 NUT M20X2,5
26 17038921 NUT M16X2
27 17092374 SPRING WASHER Ø16X34X3,6 MM
29 4911960 RUBBER PAD
30 17090974 SPRING WASHER Ø12X24 MM
