GE8061SRi27.05A956

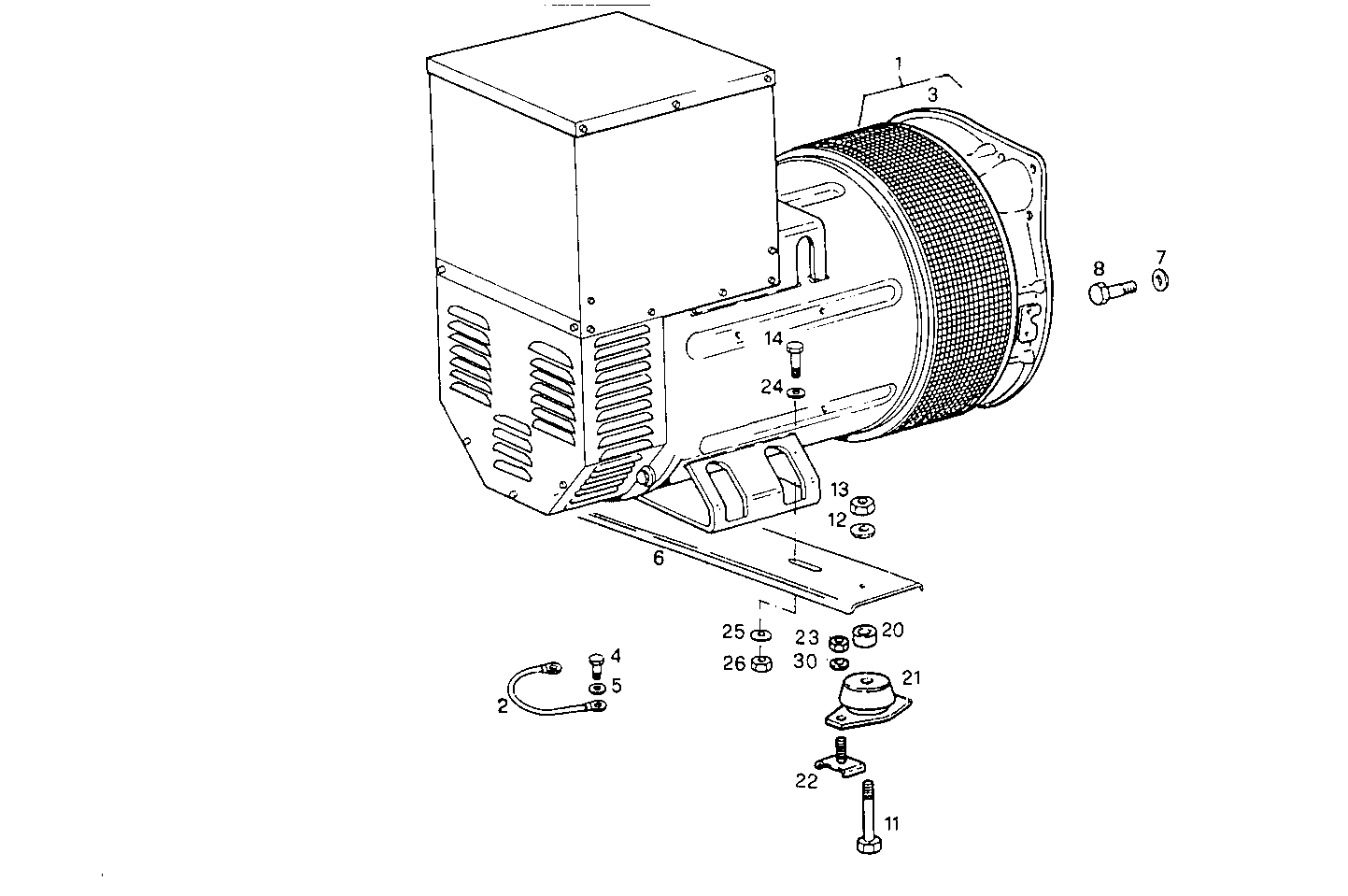

A37410054 SINGLE BEARING ELECTRIC MACHINE - MECC-ALTE [D 04-1999] [from04-1999]

Iveco/FPT SINGLE BEARING ELECTRIC MACHINE

Item Part number Description
1 8028054 ELECTRIC MACHINE ECO 342 L/4 50-60 HZ
2 8110852 EARTH WIRE
3 8026953 COUPLING BELL
4 16043124 SCREW M8X14 MM
5 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
6 8015167 SUPPORT
7 17494934 WASHER Ø10X18,1X2,2 MM
8 15970521 HEXAGON BOLT M10X20 MM
11 16614924 SCREW M16X55
12 17092374 SPRING WASHER Ø16X34X3,6 MM
13 17038921 NUT M16X2
14 16614724 SCREW M16X45
20 8005402 SPACING BAR 35MM
21 4911960 RUBBER PAD
22 8016024 SCREW
23 17038121 HEXAGON NUT M10
24 4929369 WASHER
25 17092174 SPRING WASHER Ø16X32X3,4
30 17090974 SPRING WASHER Ø12X24 MM
31 8026983 COUPLING BELL
