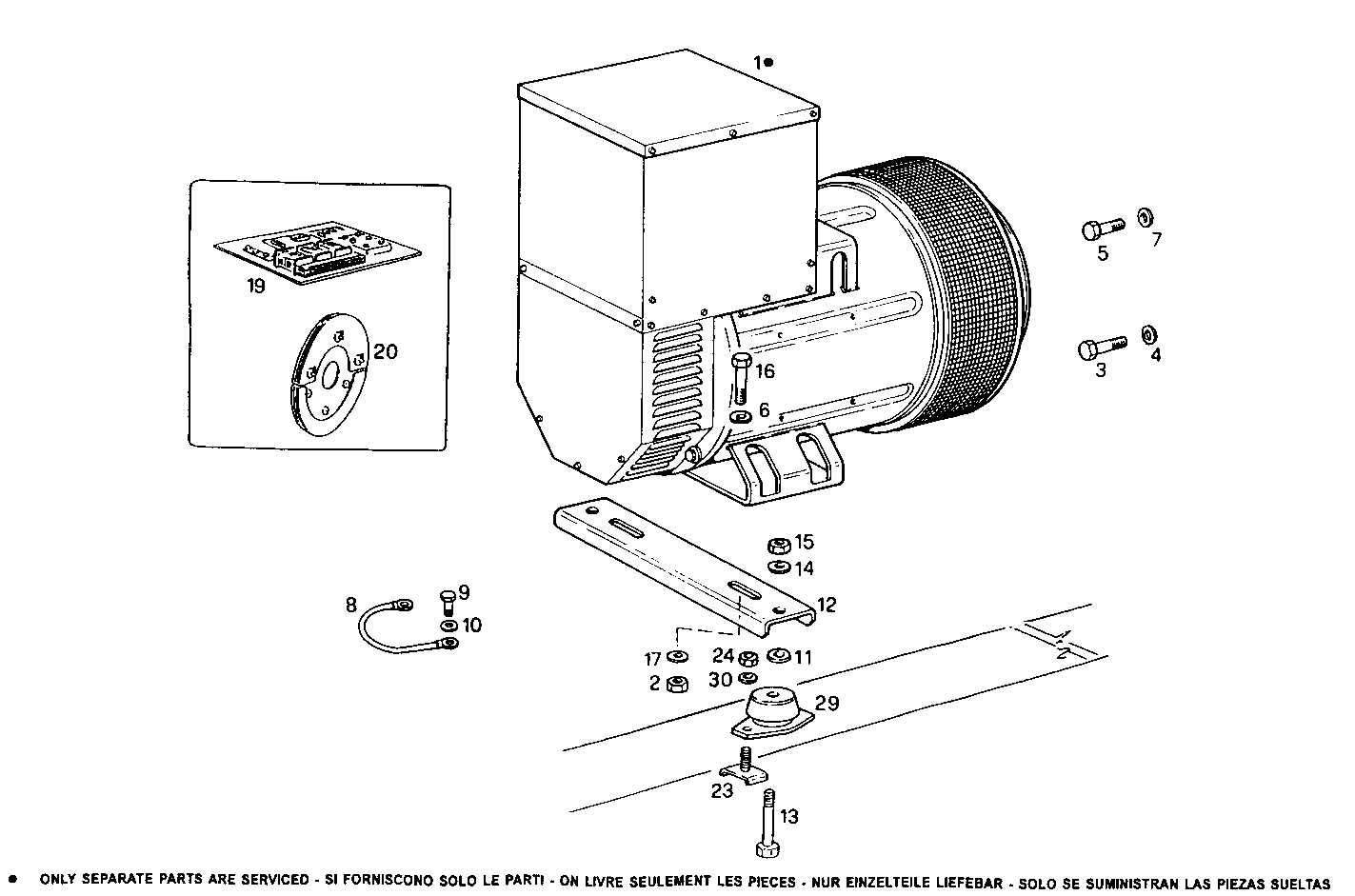

| Item |
Part number |
Description |
|
1 |
8015003 |
ELECTRIC MACHINE ECN 37 SB/4 50-60HZ |
|
2 |
17038321 |
NUT |
|
3 |
16608424 |
SCREW M10X1,25X65 |
|
4 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
5 |
15004021 |
HEXAGON BOLT M10X1,25X25 MM |
|
6 |
4279447 |
WASHER |
|
7 |
17494934 |
WASHER Ø10X18,1X2,2 MM |
|
8 |
8110852 |
EARTH WIRE |
|
9 |
16043124 |
SCREW M8X14 MM |
|
10 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
11 |
4929369 |
WASHER |
|
12 |
8015167 |
SUPPORT |
|
13 |
16615024 |
SCREW M16 |
|
14 |
17092374 |
SPRING WASHER Ø16X34X3,6 MM |
|
15 |
17038921 |
NUT M16X2 |
|
16 |
16617224 |
SCREW M20X50 |
|
17 |
17092774 |
WASHER Ø20X38X4,6 MM |
|
19 |
8091776 |
EL.MACHINE VOLTAGE REGUL. MECC-ALTE |
|
20 |
8090799 |
EL.MACHINE DIODE MECC-ALTE |
|
23 |
8016024 |
SCREW |
|
24 |
17038121 |
HEXAGON NUT M10 |
|
28 |
16614624 |
HEXAGON BOLT M16X40 MM |
|
29 |
4911960 |
RUBBER PAD |
|
30 |
17090974 |
SPRING WASHER Ø12X24 MM |
