GE8061SRi27.05A956

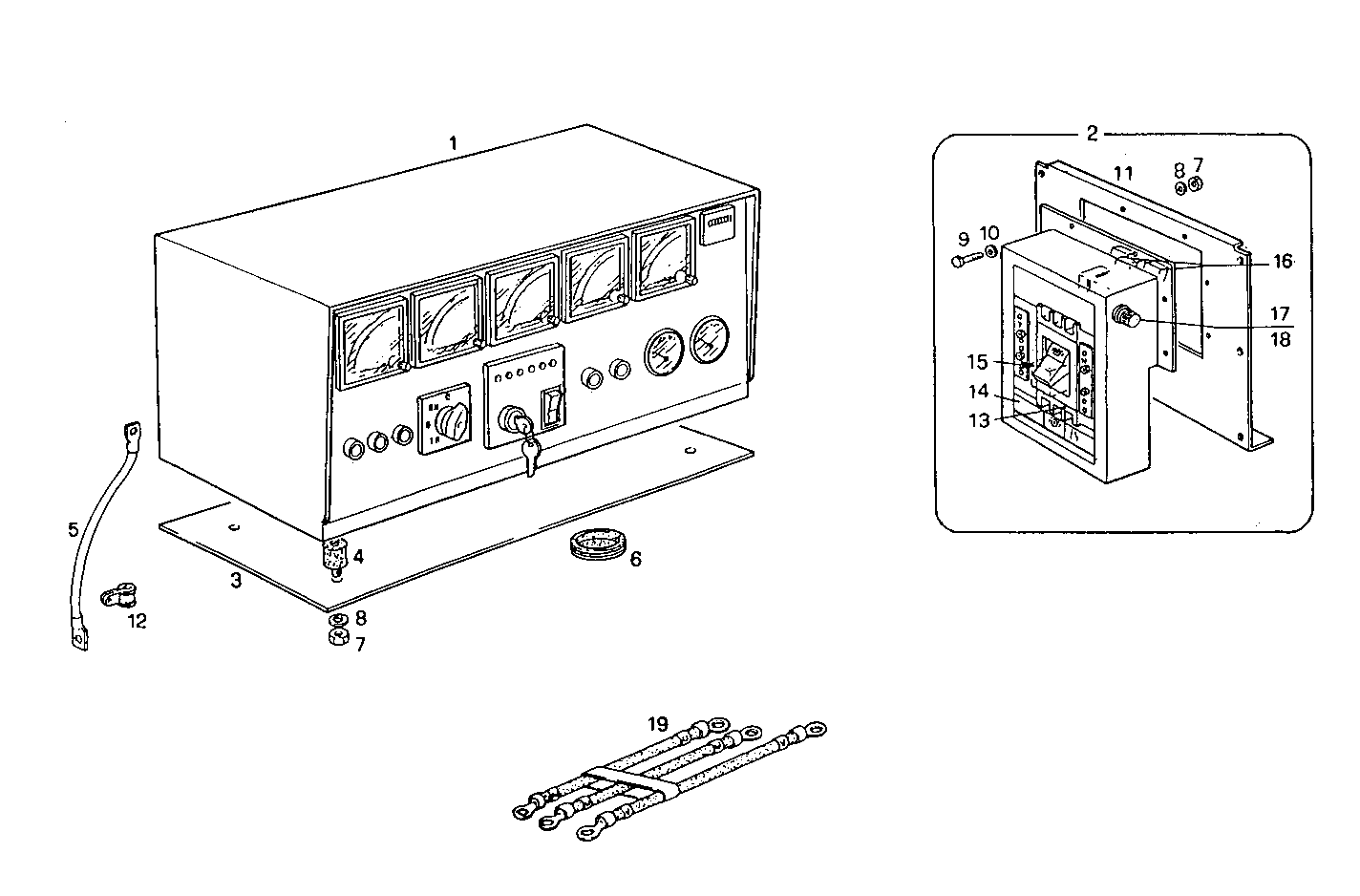

A63320005 MANUAL CONTROL BOARD FOR ELECT. MACHINE - LEROY (GAC-HUGLI)

Iveco/FPT MANUAL CONTROL BOARD FOR ELECT. MACHINE

Item Part number Description
1 8022395 CONTROL BOARD ASSY 220V/380V 50-60HZ
2 8020590 SWITCH 400A
3 8019254 COVER
4 8104155 DOWEL
5 8110852 EARTH WIRE
6 8113214 INSULATING RING
7 17037821 HEXAGON NUT M6X1
8 17088474 WASHER Ø6X12 MM
9 16603524 SCREW M6X12 MM (8.8)
10 17094714 WASHER Ø6,4X12 MM
11 8021237 COVER
12 17314890 CLIP
13 8021332 THERMOSWITCH
14 8021329 SWITCH
15 8021328 MINIMUN TENSION COIL
16 8090286 TRANSFORMATOR
17 8105267 FUSE BOX 2A
18 8105216 FUSE 10A
19 8020690 WIRE/CABLE
