GE8061SRi27.05R970

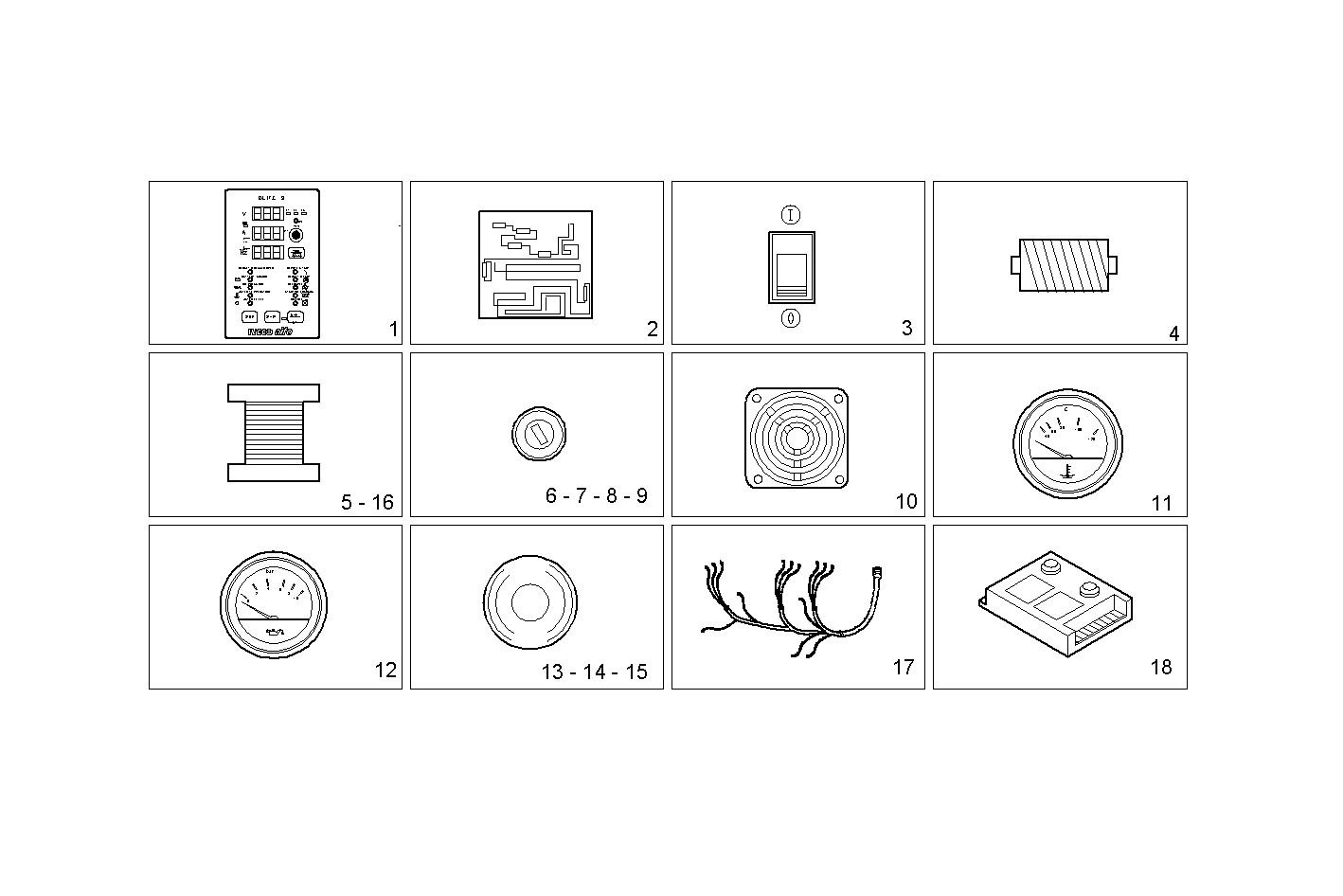

Q0000099 DIGITAL INSTRUMENT PANEL 24V - (components)
Item | Part number | Description |
---|---|---|
1 | 8094618 | ELECTRONIC CARD |
2 | 8093794 | ELECTRONIC CARD |
3 | 8094603 | THERMOSWITCH |
4 | 8094661 | MINIMUN TENSION COIL |
5 | 8094668 | AMMETER TRANSFORMATOR |
6 | 8094598 | FUSE BOX |
7 | 8094599 | FUSE 2A |
8 | 8094621 | FUSE 15A |
9 | 8094620 | FUSE 10 A |
10 | 8094601 | ACOUSTIC HORN |
11 | 8094640 | THERMOMETER |
12 | 8094638 | PRESSURE GAUGE |
13 | 8094664 | PUSH BUTTON |
14 | 8094663 | SPRING CONTACT |
15 | 8094662 | SPRING CONTACT |
16 | 8094605 | SPRING CONTACT |
17 | 8094690 | ENGINE HARNESS |
18 | 8017472 | SPEED CONTROL GAC-HUGLI 12V |
