GE8065M12.01A63S

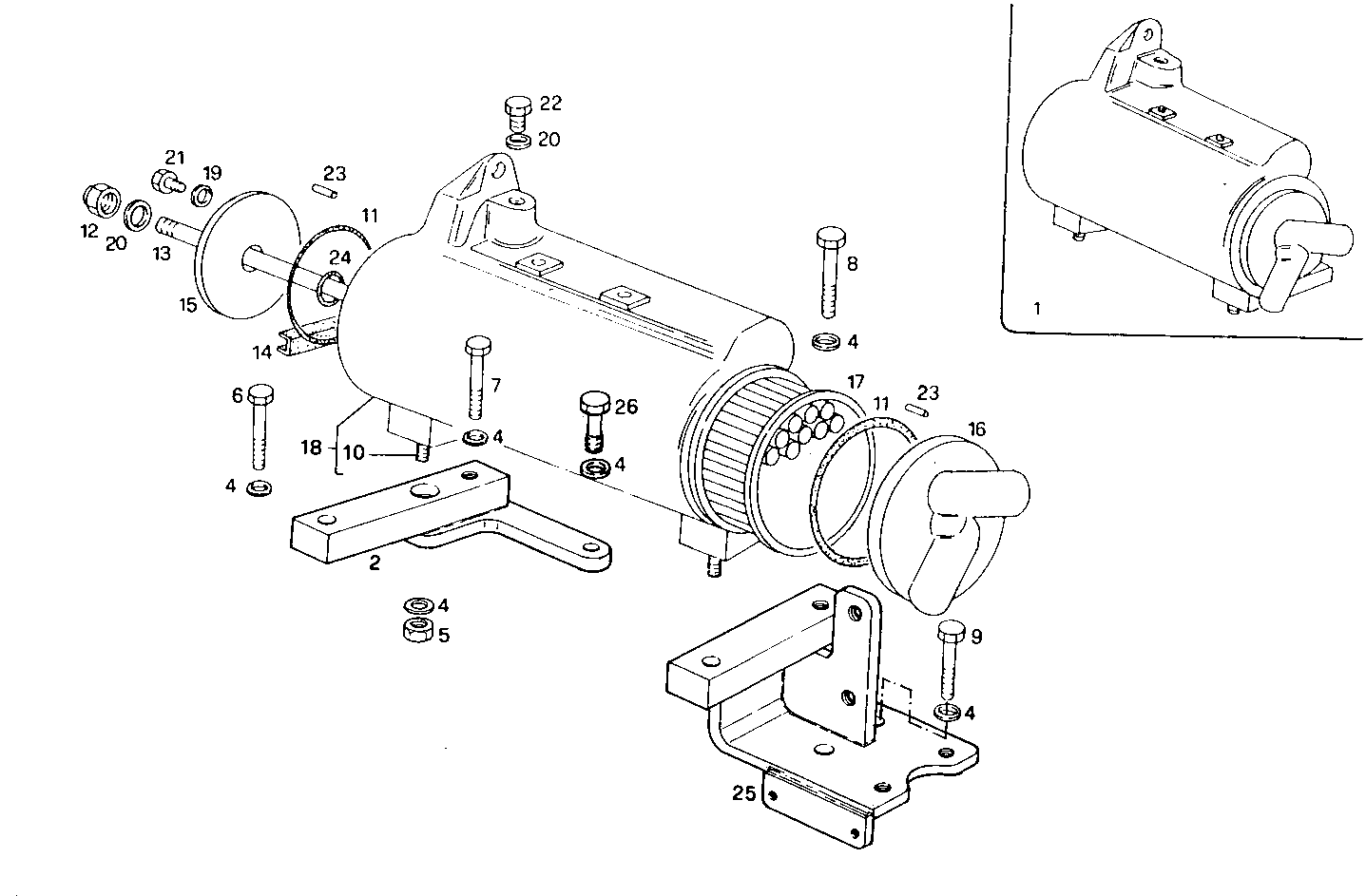

3370.005 FRESH WATER - SEA WATER HEAT EXCHANGER

Iveco/FPT FRESH WATER - SEA WATER HEAT EXCHANGER

Item Part number Description
1 4933765 WATER/SEA WATER HEAT EXCH ASSY
2 8020106 SUPPORT
4 17090174 SPRING WASHER Ø10X20 MM
5 17038221 HEXAGON NUT M10
6 11306921 SCREW M10X1,25X30
7 16608324 HEXAGON BOLT M10X1,5X60 MM
8 16608724 HEXAGON BOLT M10X90 MM
9 15004021 HEXAGON BOLT M10X1,25X25 MM
10 13449824 STUD M10X1,25X15 MM
11 4918846 O-RING
12 14056240 NUT M12X1,25
13 4919239 TIE ROD
14 4927193 GASKET
15 4927723 HEAT EXCHANG.COVER FRONT
16 4927722 HEAT EXCHANG.COVER REAR
17 4927719 TUBE STACK
18 4933758 HEAT EXANGER BODY
19 10284460 SEAL GASKET Ø10X16 MM
20 4858607 WASHER Ø12X17 MM SP=1,5 MM
21 11903140 PLUG M10X1,25
22 16992240 THREADED PLUG M12X1,5
23 14158570 DOWEL PIN Ø2,3 MM
24 17281681 O-RING Ø13,9 MM SP=2,6 MM
25 8020107 SUPPORT
26 15970921 HEXAGON BOLT M10X1,25X35 MM
