GE8065M12.01A63S

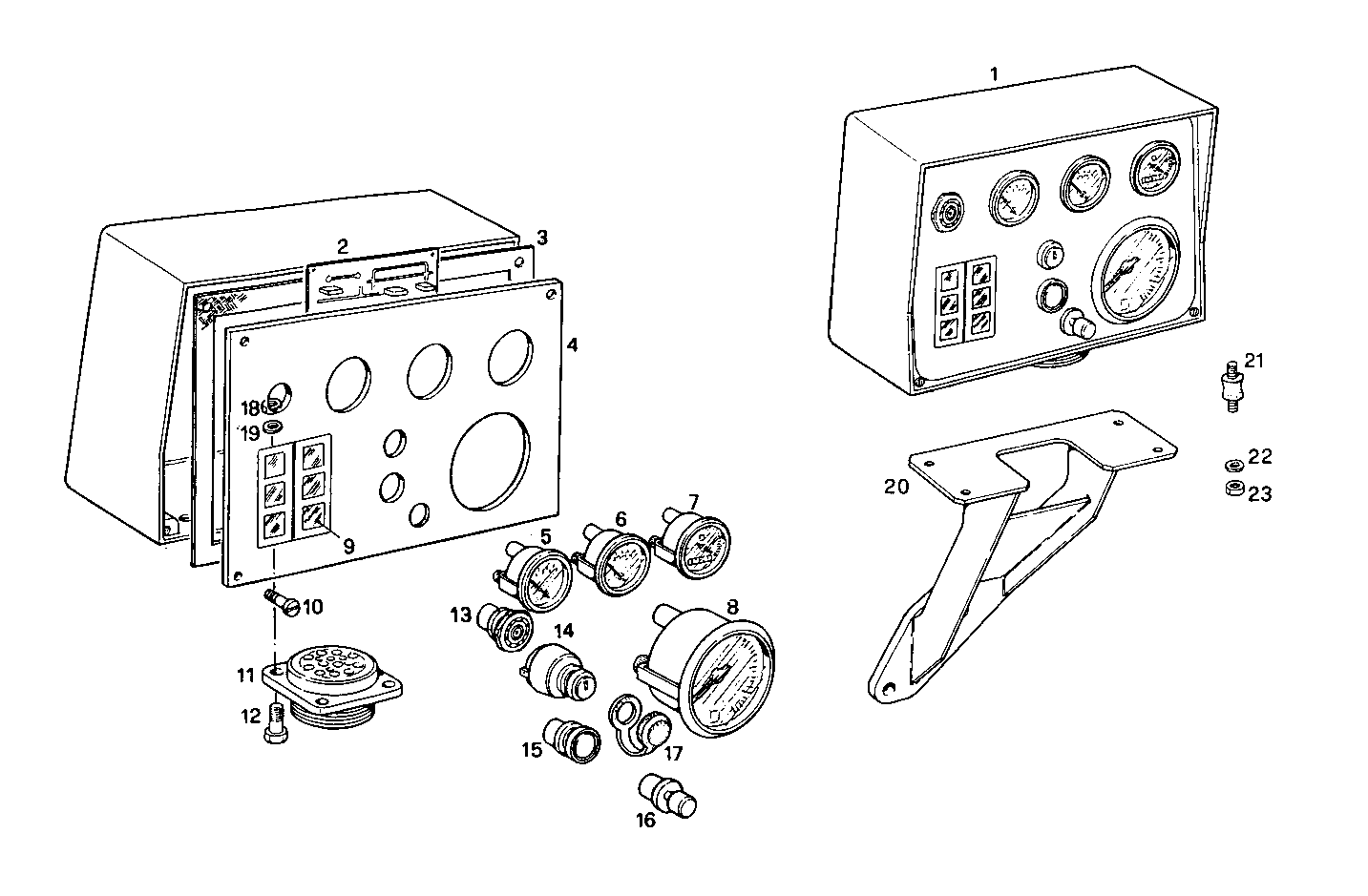

5630.009 PANEL WITH ELECTRICAL INSTRUMENTS
| Item |
Part number |
Description |
|
1 |
8029527 |
CONTROL BOARD ASSY 24V |
|
2 |
8029549 |
ELECTRONIC CARD |
|
3 |
8100350 |
GASKET |
|
4 |
8110225 |
PLATE |
|
5 |
8030615 |
PRESSURE GAUGE 10 BAR |
|
6 |
8030614 |
THERMOMETER |
|
7 |
8030616 |
VOLTMETER |
|
8 |
8030617 |
REVOLUTION COUNTER |
|
9 |
8110229 |
WARNING LIGHT |
|
10 |
8103662 |
SCREW M4X10 |
|
11 |
8105629 |
CONNECTION |
|
12 |
17129714 |
SCREW |
|
13 |
8110230 |
ACOUSTIC HORN |
|
14 |
8103708 |
SWITCH |
|
15 |
8025024 |
PUSH BUTTON STOP |
|
17 |
8110226 |
CAP |
|
18 |
17037521 |
NUT M3 |
|
19 |
17094004 |
WASHER Ø3 MM |
|
20 |
8023228 |
SUPPORT |
|
21 |
4910949 |
RUBBER LUG |
|
22 |
17088474 |
WASHER Ø6X12 MM |
|
23 |
17037821 |
HEXAGON NUT M6X1 |
