GE8210G75.10A70M
1600.014 POWERING

Iveco/FPT POWERING

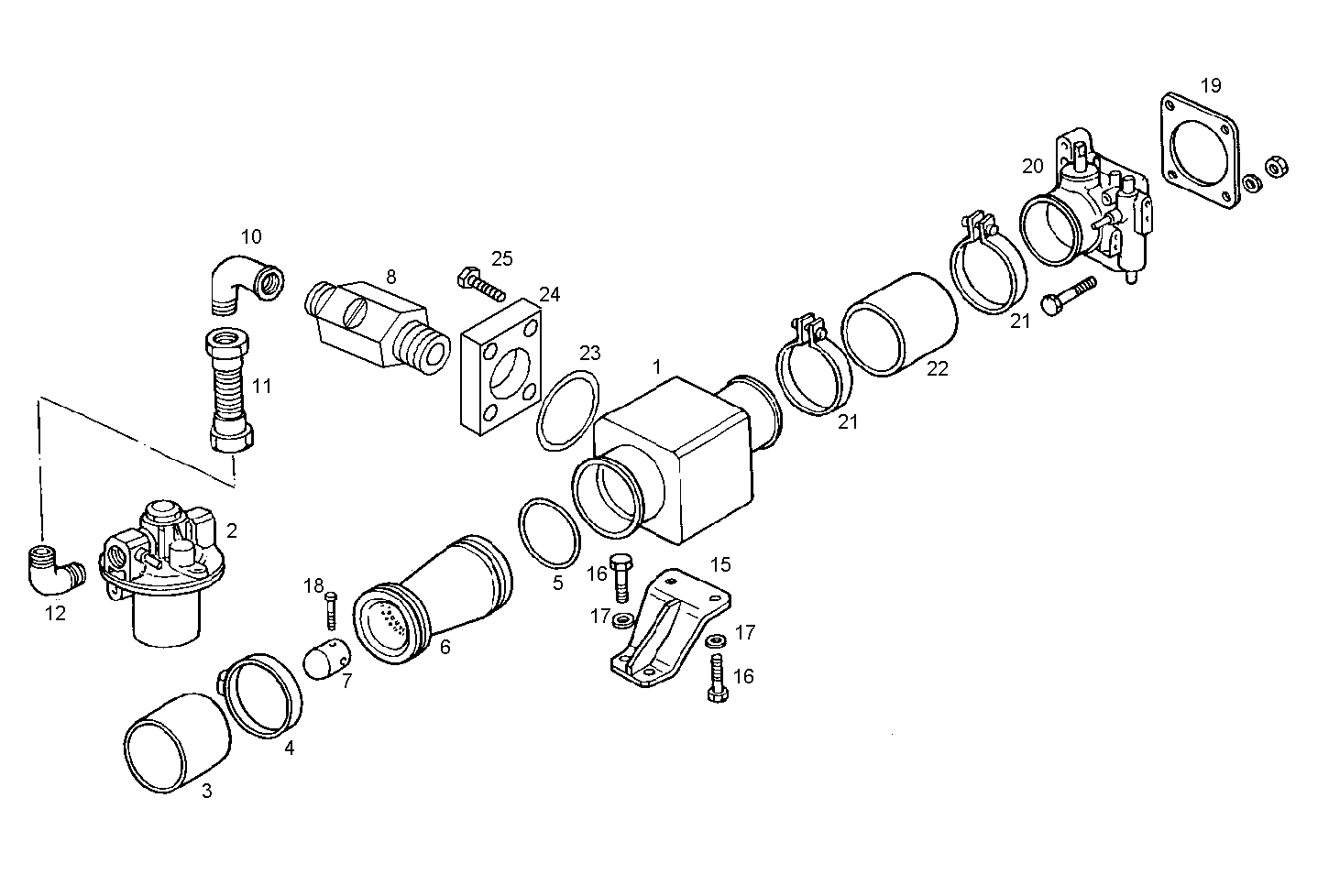

Item Part number Description
1 8031483 GAS ENGINE CARBURETTOR
2 8025790 VALVE
3 42070016 WATER HOSE
4 17765391 CLIP Ø90/110 MM
5 17290581 O-RING Ø72,63X3,53 MM
6 8025990 VENTURI HOUSING
7 8026231 CONE
8 8025991 HAND M.A.S.
10 8026151 PIPE SOCKET
11 8025035 HOSE
12 8025999 PIPE SOCKET
15 8025922 FUEL LINE
16 16605524 HEXAGON BOLT M8X20 MM
17 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
18 17131170 SCREW
19 8024244 GASKET
20 8024228 THROTTLE
21 4788410 CLIP Ø92/98 MM
22 8025445 RUBBER SLEEVE
23 17280181 O-RING Ø53,70X1,78 MM
24 8031765 FLANGE
25 16689124 CYLIND-HEAD SCREW M6X16 MM
