GE8210G75.10A70M

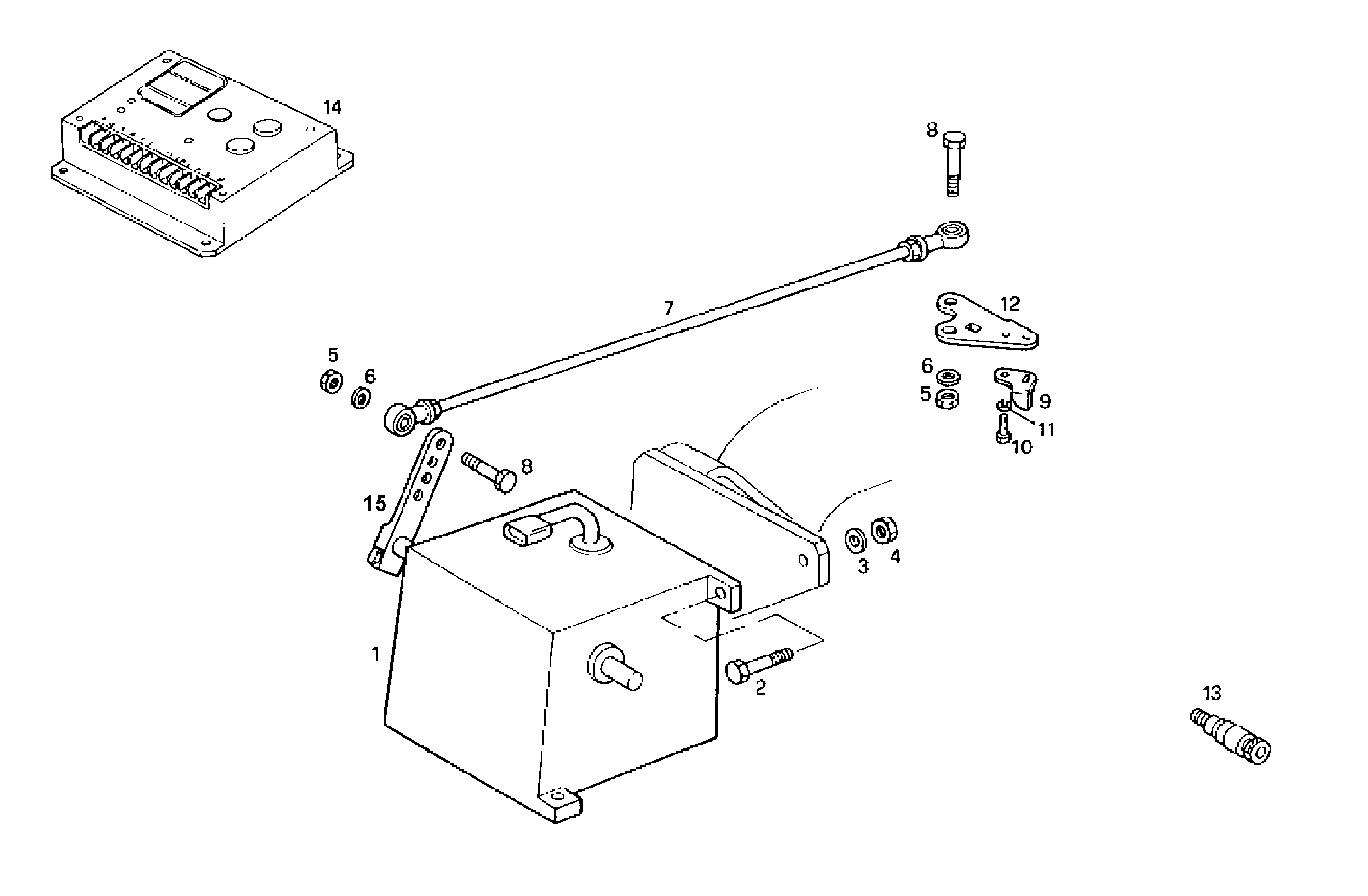

2600.010 ELECTRONIC SPEED GOVERNOR
Item | Part number | Description |
---|---|---|
1 | 8021744 | ENGINE ACTUATOR ASSY |
2 | 16586324 | HEXAGON BOLT M8X1,25X20 MM |
3 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
4 | 17037931 | HEXAGON NUT M8X1,25 |
5 | 17037821 | HEXAGON NUT M6X1 |
6 | 17088474 | WASHER Ø6X12 MM |
7 | 8026008 | TIE ROD |
8 | 16603724 | HEXAGON BOLT M6X20 MM (8.8) |
9 | 8025621 | RETAINER |
10 | 8025675 | SCREW |
11 | 17800174 | WASHER |
12 | 8026007 | LEVER |
13 | 8018673 | PICK-UP |
14 | 8017472 | SPEED CONTROL GAC-HUGLI 12V |
15 | 8031536 | LEVER |
