GE8210G75.10A70M

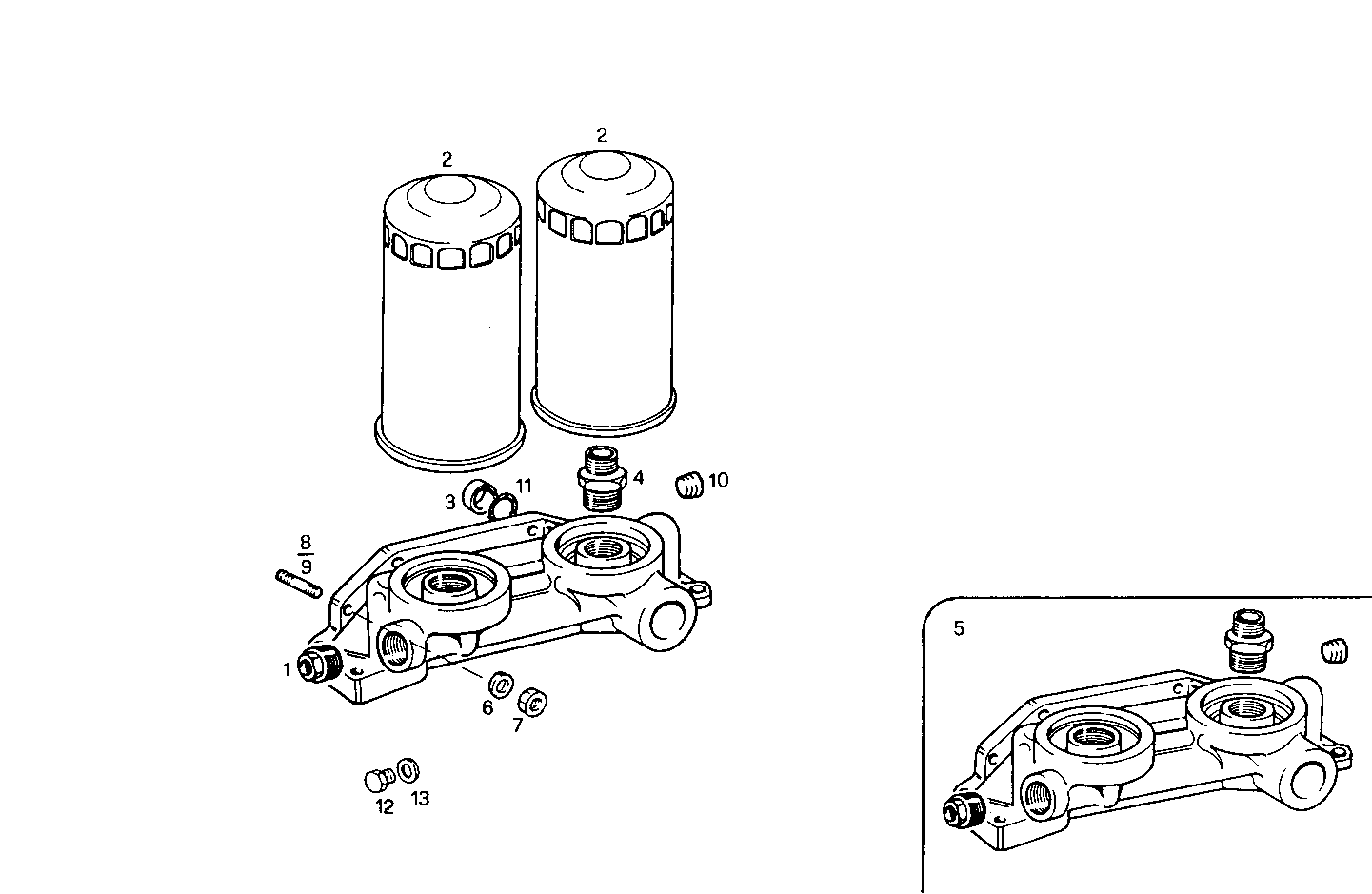

3020.045 OIL FILTERS
Item | Part number | Description |
---|---|---|
1 | 573251 | THREADED PLUG |
2 | 1907570 | OIL FILTER CARTRIDGE |
3 | 4538571 | CENTERING BUSH |
4 | 4657869 | BULKHEAD STR.COUPL |
5 | 4984991 | SUPPORT ASSY |
6 | 11198371 | SPRING WASHER Ø10X20 MM |
7 | 17038221 | HEXAGON NUT M10 |
8 | 13449734 | STUD M10X15X30 |
9 | 13449834 | STUD M10X15X35 |
10 | 14323811 | LOCK PLUG Ø20 MM SP=1,5 MM |
11 | 17282581 | O-RING Ø28,24 MM SP=2,62 MM |
12 | 10903111 | PLUG |
13 | 4858606 | GASKET Ø10X14X1 MM |
