GE8210G75.10A70M

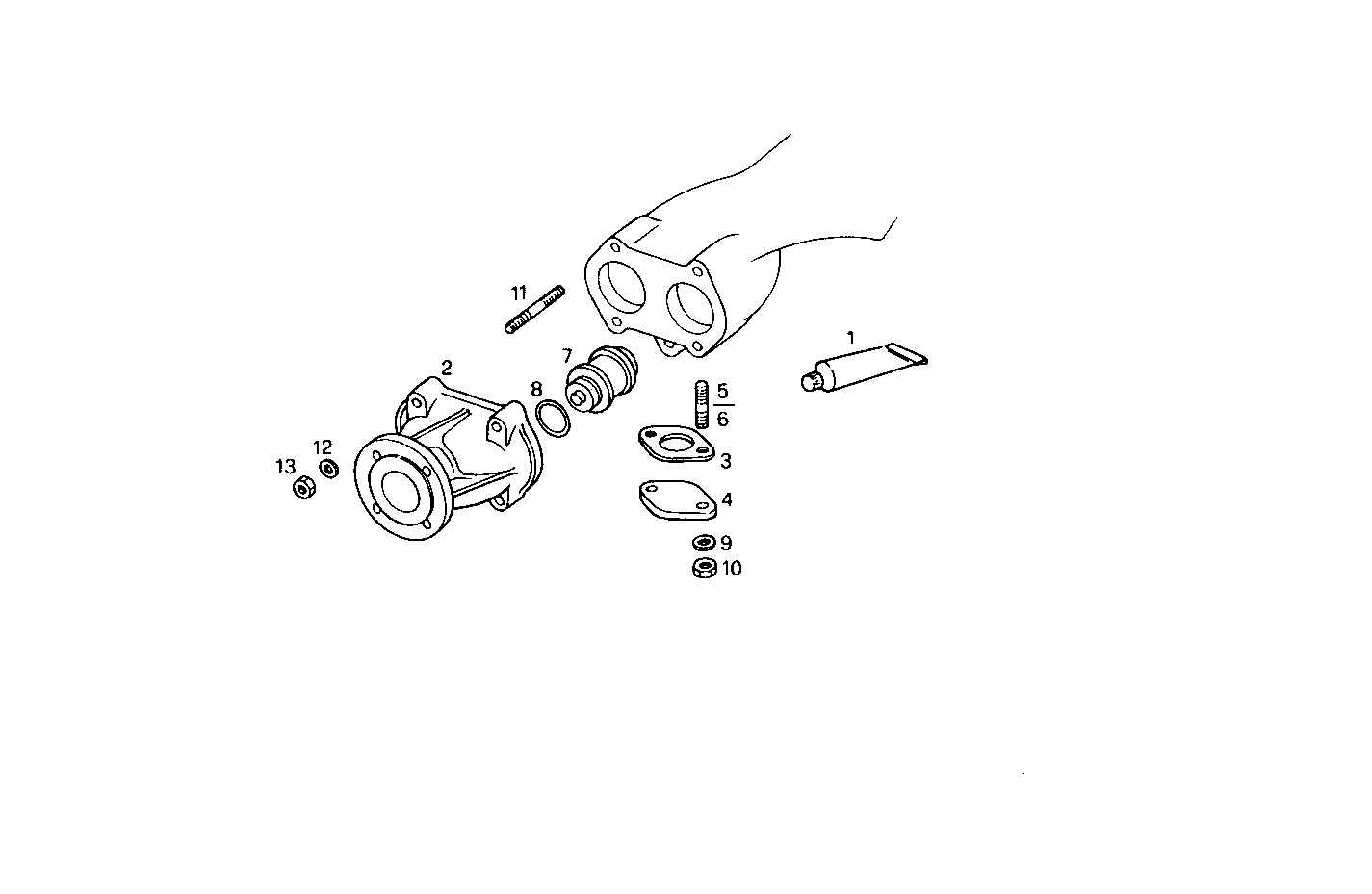

3220.101 THERMOSTAT
| Item | Part number | Description |
|---|---|---|
| 1 | 1905685 | ADHESIVE/STICKER LOCTITE |
| 2 | 8021865 | COVER |
| 3 | 4864029 | FLAT ENGINE GASKET |
| 4 | 8020416 | COVER |
| 5 | 12354521 | STUD M8X16X22 |
| 6 | 16729324 | STUD M8X12X20 MM |
| 7 | 8110948 | THERMOSTAT |
| 8 | 4863955 | O-RING Ø60 MM |
| 9 | 17094914 | WASHER 8x16 |
| 10 | 17037931 | HEXAGON NUT M8X1,25 |
| 11 | 13546821 | STUD M10X1,25X20X45 MM |
| 12 | 17793904 | WASHER Ø10X25 MM SP=1,5 |
| 13 | 17038221 | HEXAGON NUT M10 |
