GE8210G85.00A70M

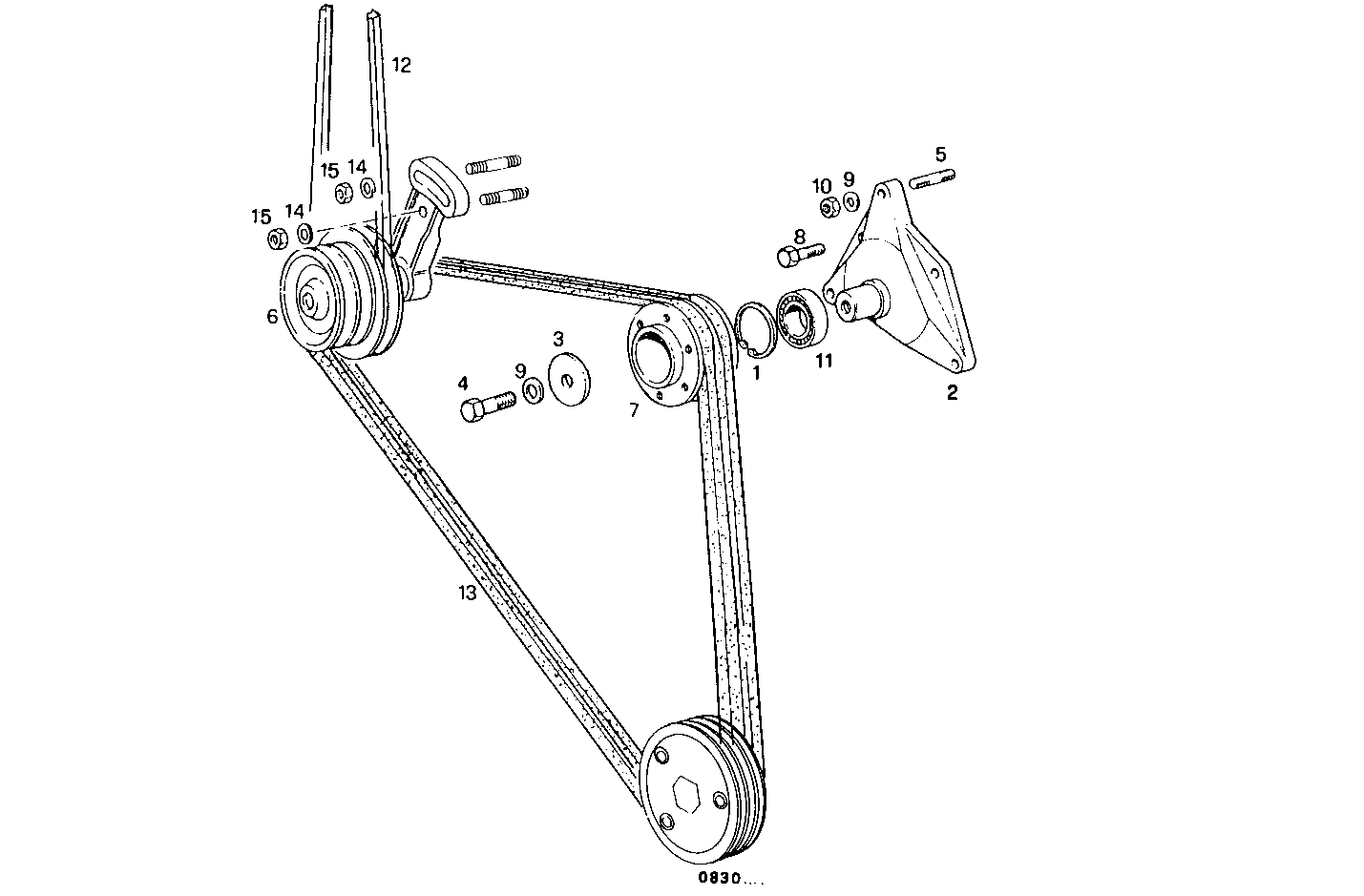

3240.109 PULLEYS AND BELTS

Iveco/FPT PULLEYS AND BELTS

Item Part number Description
1 16874776 CIRCLIP Ø85,5 MM [from 10-92]
2 98464097 SUPPORT [from 10-92]
3 4801143 WASHER
4 15540521 SCREW M12X1,25X35
5 13453721 STUD M10X25X30
6 98485209 BELT TENSIONER ASSY
7 98464098 PULLEY [from 10-92]
8 15972421 HEXAGON BOLT M10X1,25X130 MM
9 17090174 SPRING WASHER Ø10X20 MM
10 17038221 HEXAGON NUT M10
11 98427607 ENGINE BEARINGS
12 4814275 ALTERNATOR BELT
13 4854694 SET OF V-BELTS KIT
14 17091074 WASHER Ø12X24X2,8 MM
15 17038621 NUT M12
