GE8210G85.00A70M

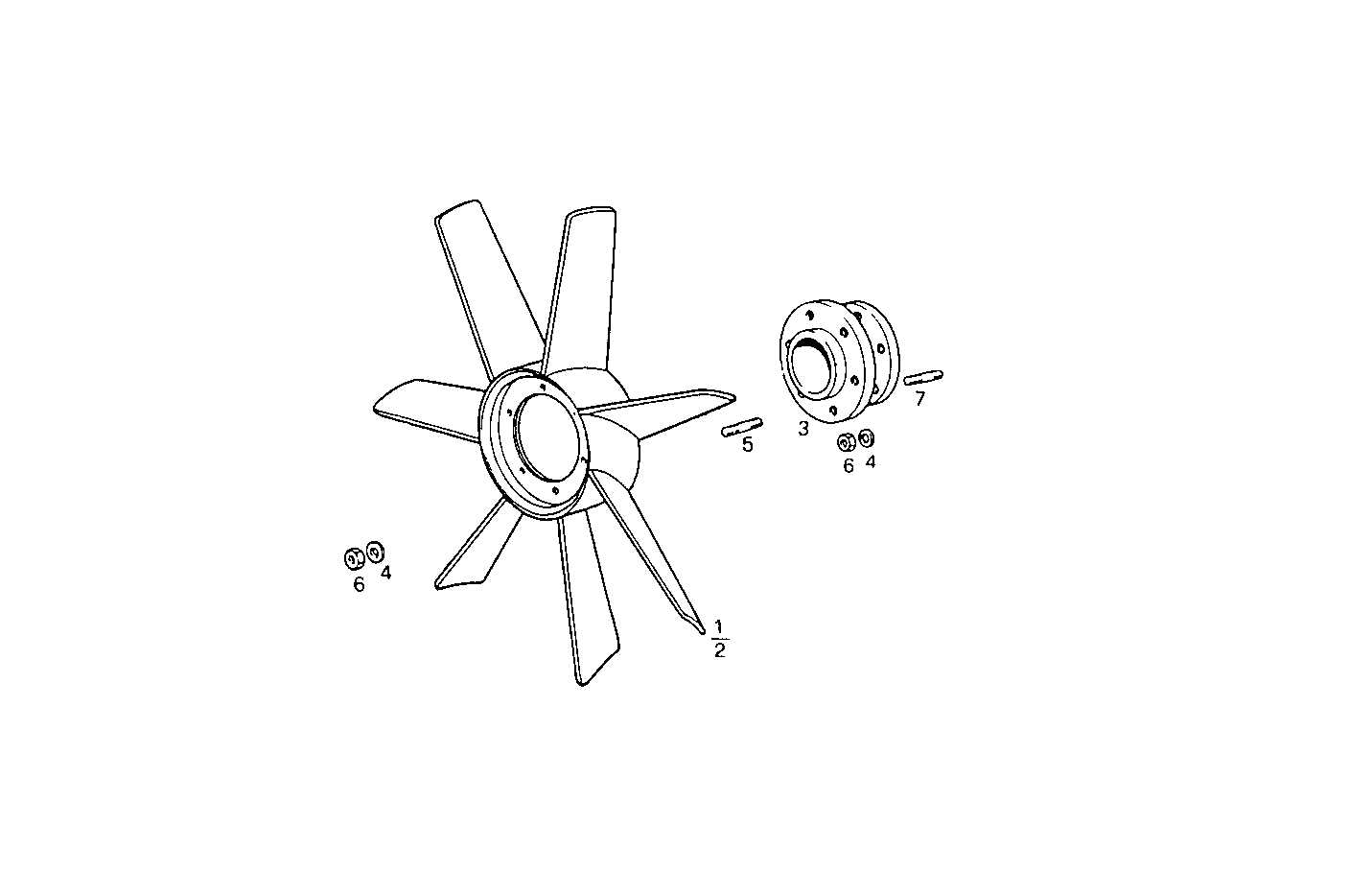

A08010043 PUSHER FAN - high position

Iveco/FPT PUSHER FAN

Item Part number Description
1 4935522 FAN Ø650 MM
2 8021734 FAN Ø650 MM
3 8006900 SPACING BAR
4 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
5 16729224 STUD M8X16 MM
6 17037931 HEXAGON NUT M8X1,25
7 16729324 STUD M8X12X20 MM
