GE8210M22.10A64S

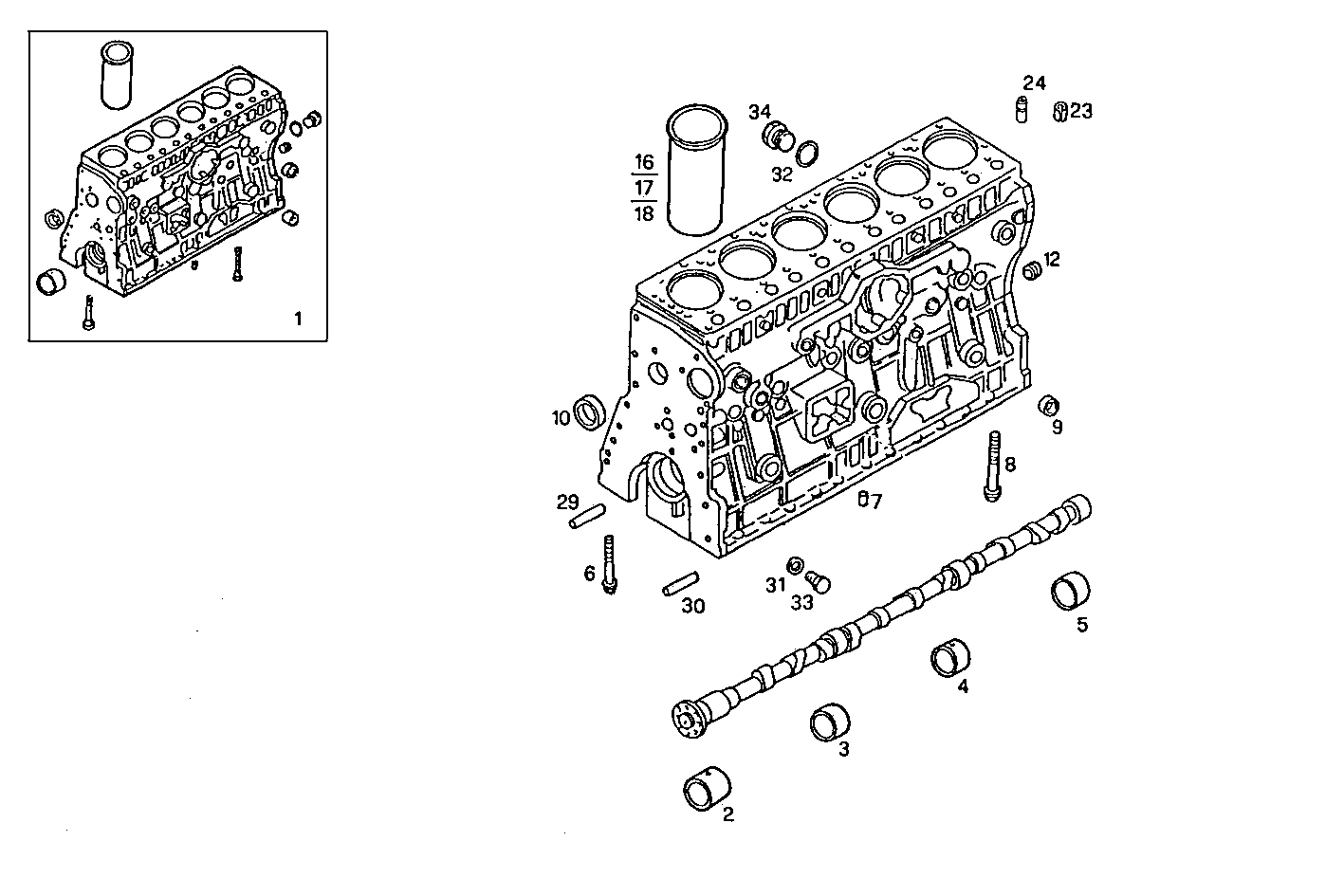

0400.016 CRANKCASE
| Item | Part number | Description |
|---|---|---|
| 1 | 99441811 | CRANKCASE ASSY |
| 2 | 4668570 | CAMSHAFT BEARING |
| 3 | 4536227 | CAMSHAFT BEARING |
| 4 | 4536228 | CAMSHAFT BEARING |
| 5 | 4573049 | CAMSHAFT BEARING |
| 6 | 4827152 | CRAHKSFT.BEAR.STUD M20 |
| 7 | 851425 | DOWEL PIN |
| 8 | 4769168 | CRAHKSFT.BEAR.STUD M20 |
| 9 | 14326101 | THREADED PLUG M8X1,25 |
| 10 | 14283370 | LOCK PLUG Ø63 MM |
| 12 | 16991170 | LOCK PLUG Ø36 MM |
| 16 | 99468534 | CYLINDER LINER +0,0 MM |
| 17 | 99468535 | CYLINDER LINER +0,05 MM |
| 18 | 99468538 | CYLINDER LINER +0,25 MM |
| 23 | 4663640 | DOWEL PIN |
| 24 | 4502626 | DOWEL PIN |
| 29 | 10837810 | DOWEL PIN Ø12 MM |
| 30 | 4533969 | DOWEL PIN |
| 31 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 32 | 10265460 | SEAL GASKET Ø42X49 MM SP=1,5 MM |
| 33 | 10300611 | LOCK PLUG M14X1,5 |
| 34 | 4665029 | LOCK PLUG M42X1,5 |
