GE8210M22.10A64S

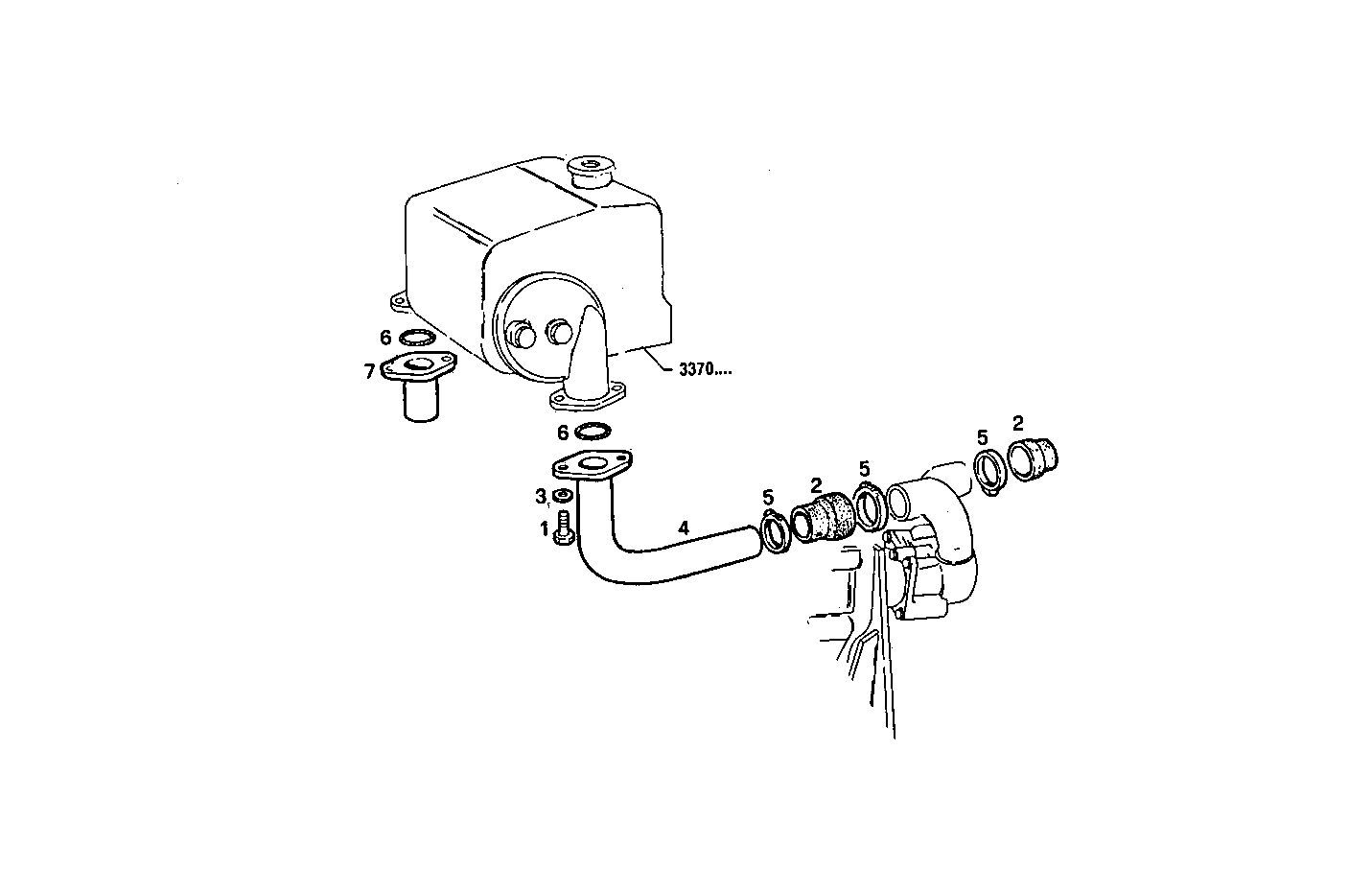

3390.007 SEA WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 15540321 | HEXAGON BOLT M12X1,25X25 MM |
| 2 | 8109706 | CONNECTOR SLEEVE |
| 3 | 17091074 | WASHER Ø12X24X2,8 MM |
| 4 | 8005320 | WATER PIPE |
| 5 | 17764990 | CLIP Ø50/70 MM |
| 6 | 17289881 | O-RING Ø50,3 MM SP=3,5 MM |
| 7 | 8110995 | WATER PIPE |
