Catalogue Menu
GE8210M22.10A64S

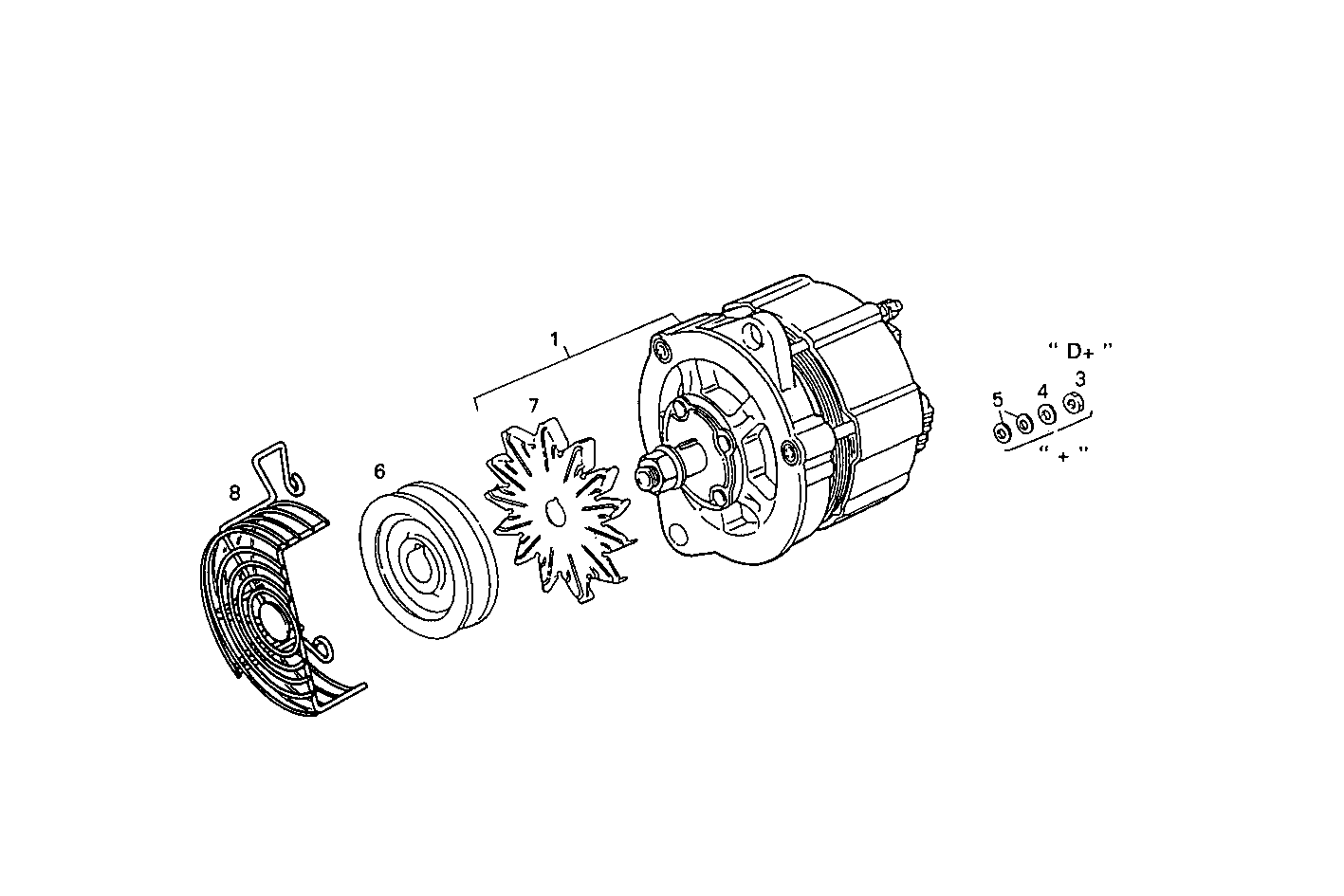

A14110009 SELF-REGULATED ALTERNATOR - 24V 55A - poles system
| Item | Part number | Description |
|---|---|---|
| 1 | 8027974 | ALTERNATOR ASSY 24V |
| 3 | 17037931 | HEXAGON NUT M8X1,25 |
| 4 | 17494834 | WASHER Ø8 MM |
| 5 | 17094914 | WASHER 8x16 |
| 6 | 4808604 | PULLEY |
| 7 | 4757196 | GENERATOR FAN BOSCH |
| 8 | 8010625 | PROTECTION |
