GE8210SRG75.10A70M

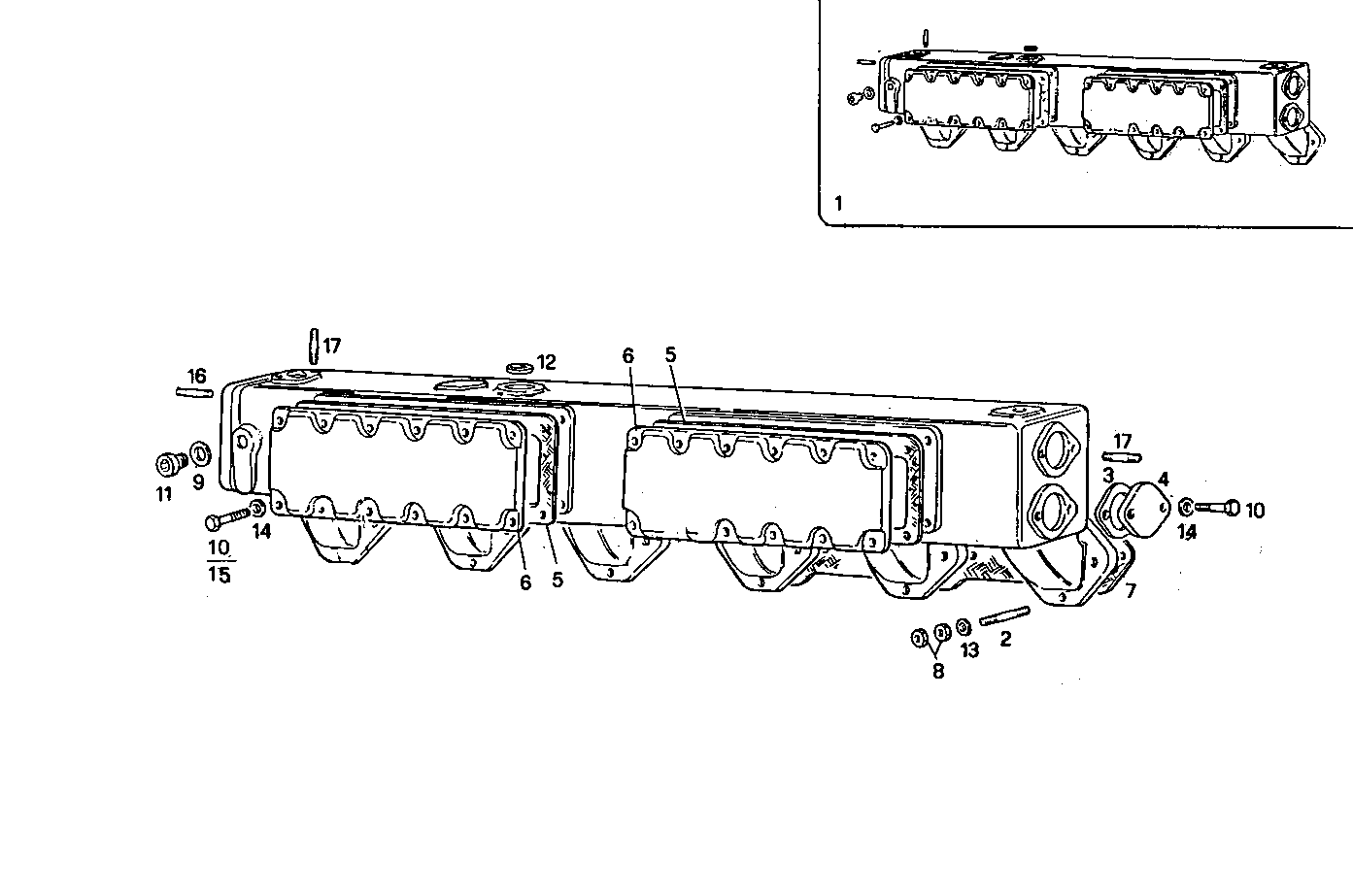

0760.176 EXHAUST MANIFOLD [D 16/12/2003] [from16/12/2003]

Iveco/FPT EXHAUST MANIFOLD

Item Part number Description
1 8024759 COOLED EXHAUST MANIF. ASSY
2 4842861 STUD
3 8009640 GASKET
4 8100154 COVER
5 8021800 GASKET
6 8021358 COVER
7 4839530 EXH. MANIFOLD GKT
8 4927248 NUT M10X1,25
9 4858610 WASHER Ø18X24 MM SP=1,5 MM
10 16605424 SCREW M8X16 MM (8.8)
11 16992540 PLUG M18X1,5
12 16991170 LOCK PLUG Ø36 MM
13 16665614 WASHER Ø10,5 MM
14 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
15 16605824 HEXAGON BOLT M8X35 MM
16 13449830 STUD M10X1,25X35 MM
17 16729324 STUD M8X12X20 MM
