GE8210SRG75.10A70M

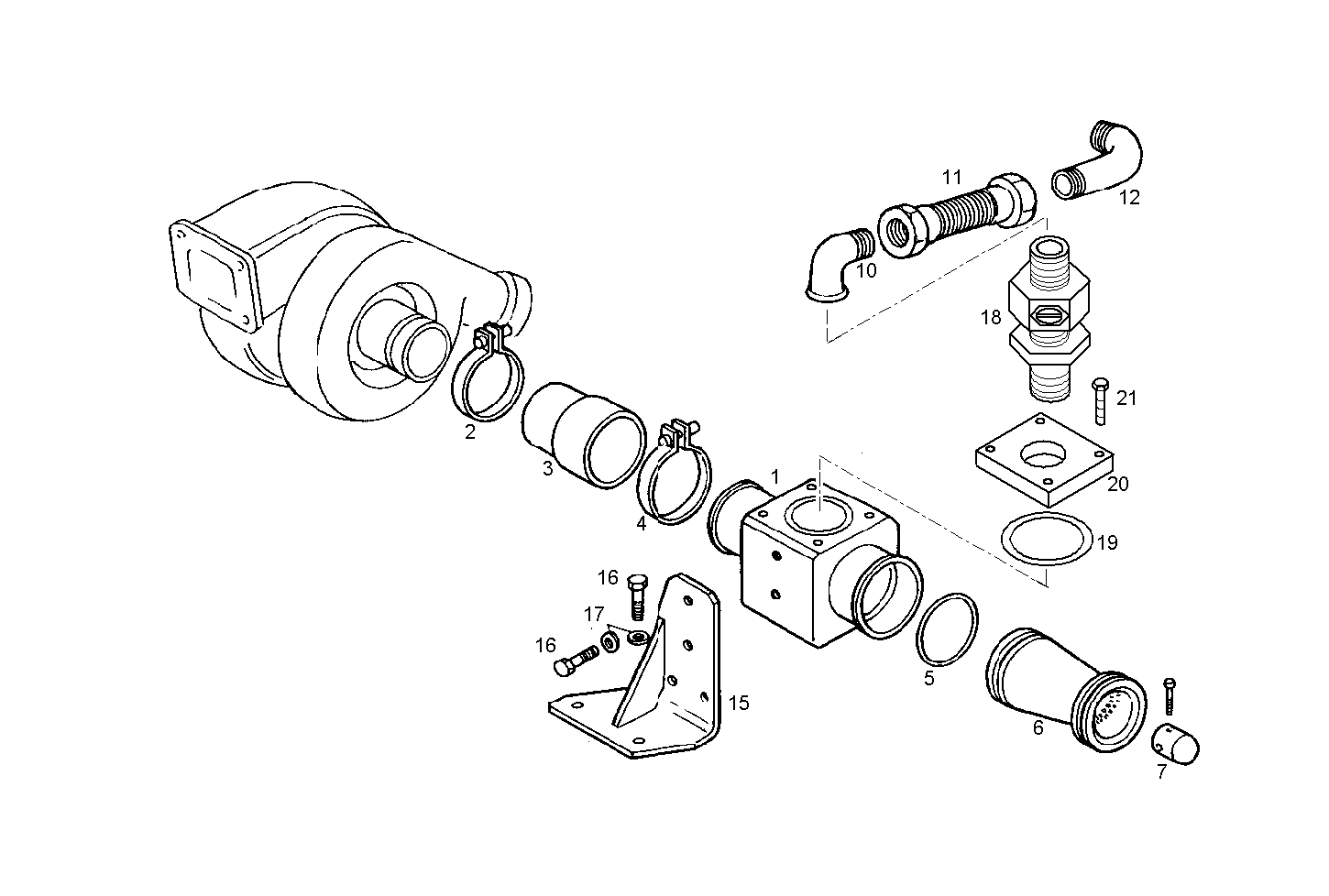

1600.013/02 POWERING
Item | Part number | Description |
---|---|---|
1 | 8031483 | GAS ENGINE CARBURETTOR |
2 | 17768881 | CLIP |
3 | 8026834 | CONNECTOR SLEEVE |
4 | 17769291 | CLIP |
5 | 17290581 | O-RING Ø72,63X3,53 MM |
6 | 8026229 | VENTURI HOUSING |
7 | 8026483 | VENTURI HOUSING |
10 | 8026151 | PIPE SOCKET |
11 | 8025035 | HOSE |
12 | 8025999 | PIPE SOCKET |
15 | 8026833 | RETAINER |
16 | 16605524 | HEXAGON BOLT M8X20 MM |
17 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
18 | 8031554 | HAND M.A.S. |
19 | 17280181 | O-RING Ø53,70X1,78 MM |
20 | 8031765 | FLANGE |
21 | 16689124 | CYLIND-HEAD SCREW M6X16 MM |
