GE8210SRG85.10A70E

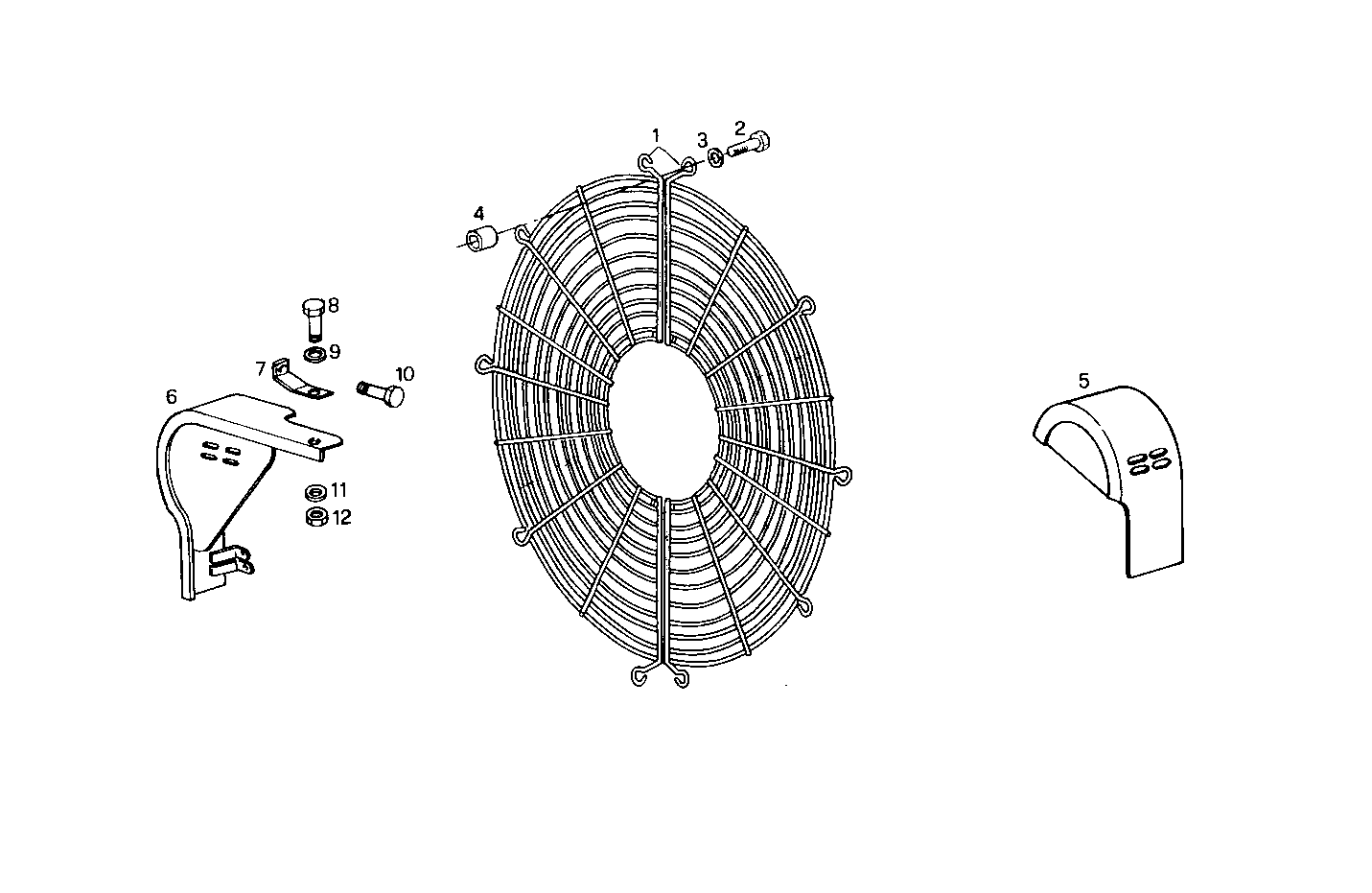

A48010014 GUARD - for fan and belts
| Item | Part number | Description |
|---|---|---|
| 1 | 8027607 | PROTECTION FOR FAN |
| 2 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 3 | 17089774 | SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
| 4 | 17816214 | SPACER Ø10X8,5X18 MM |
| 5 | 8027512 | PROTECTION FOR AUXILIARY WATER PUMP |
| 6 | 8027458 | PROTECTION FOR GENERATOR |
| 7 | 8018396 | RETAINER |
| 8 | 16605734 | HEXAGON BOLT M8X30 MM |
| 9 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 10 | 16606124 | HEXAGON BOLT M8X50 MM |
| 12 | 17037931 | HEXAGON NUT M8X1,25 |
