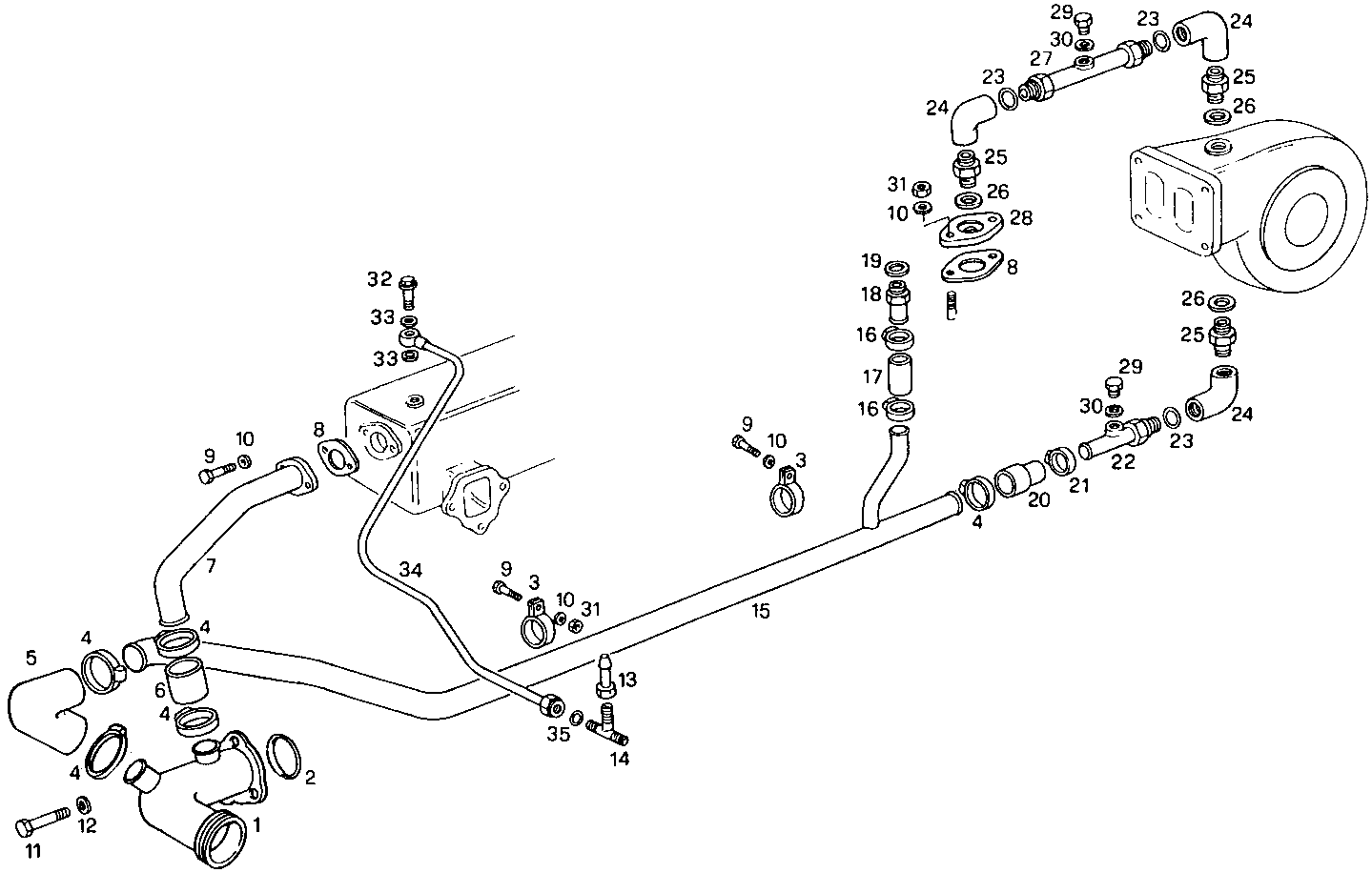

| Item |
Part number |
Description |
|
1 |
8110718 |
WATER PIPE |
|
2 |
17296181 |
O-RING Ø59,69X5,33 MM |
|
3 |
4928851 |
CLIP |
|
4 |
17764791 |
CLIP Ø32/50 MM |
|
5 |
8110497 |
CONNECTOR SLEEVE |
|
6 |
8110724 |
RUBBER SLEEVE |
|
7 |
8110631 |
WATER PIPE |
|
8 |
8009640 |
GASKET |
|
9 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
10 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
11 |
16606724 |
HEXAGON BOLT M8X90 MM |
|
13 |
8021758 |
WATER PIPE |
|
14 |
8112120 |
PIPE SOCKET |
|
15 |
8027073 |
WATER PIPE |
|
16 |
17764593 |
CLIP Ø20/32 MM |
|
16 |
17764693 |
CLIP Ø25/40 MM |
|
17 |
99452230 |
RUBBER SLEEVE Ø50 MM |
|
17 |
98420478 |
RUBBER SLEEVE |
|
18 |
8024797 |
PIPE SOCKET M30X1,5 |
|
18 |
8114298 |
PIPE SOCKET [up to 15-12-03] |
|
19 |
10303360 |
SEAL GASKET Ø27,3 MM [up to 15-12-03] |
|
19 |
10303460 |
SEAL GASKET Ø30x36x1,5 MM |
|
20 |
8021906 |
CONNECTOR SLEEVE |
|
21 |
17764691 |
CLIP Ø25/40 MM |
|
22 |
8027441 |
WATER PIPE |
|
23 |
8024652 |
O-RING Ø15 MM |
|
24 |
16526514 |
ELBOW COUPLING |
|
25 |
8110943 |
PIPE SOCKET M30X1,5/M25X1,5 |
|
26 |
98429282 |
SEAL GASKET Ø26X33 MM SP=1,5 MM |
|
27 |
8021913 |
WATER PIPE |
|
28 |
8021905 |
FLANGE |
|
29 |
11903111 |
LOCK PLUG M10X1,25 |
|
30 |
4858606 |
GASKET Ø10X14X1 MM |
|
31 |
17037931 |
HEXAGON NUT M8X1,25 |
|
32 |
8009696 |
SCREW CONNECTOR M12X1,5X25 |
|
33 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
34 |
8021961 |
WATER PIPE |
|
35 |
8024645 |
O-RING Ø4 MM |
