GE8210SRi25.00A955

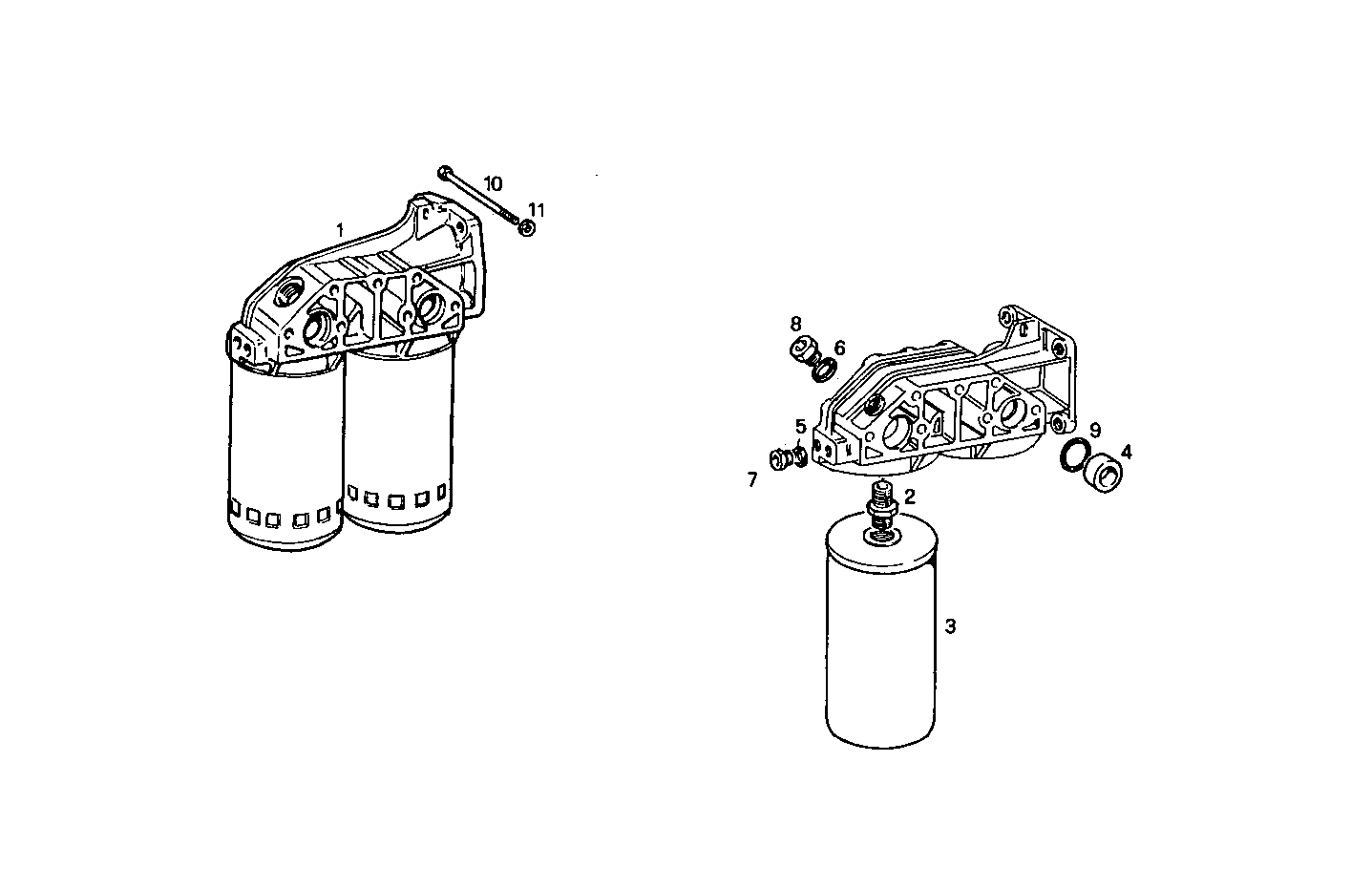

3020.017 OIL FILTERS
| Item | Part number | Description |
|---|---|---|
| 1 | 4667916 | OIL FILTER ASSY |
| 2 | 4657869 | BULKHEAD STR.COUPL |
| 3 | 1907570 | OIL FILTER CARTRIDGE |
| 4 | 4538571 | CENTERING BUSH |
| 5 | 10263460 | WASHER Ø22X28X1,5 MM |
| 6 | 10265060 | SEAL GASKET Ø32X38 MM SP=1,5 MM |
| 7 | 10275011 | PLUG M22X1,5 |
| 8 | 10276111 | LOCK PLUG M32X1,5 |
| 9 | 17282581 | O-RING Ø28,24 MM SP=2,62 MM |
| 10 | 15972424 | HEXAGON BOLT M10X1,25X130 MM |
| 11 | 17090274 | WASHER Ø10X20 MM |
