GE8210SRi25.00A955

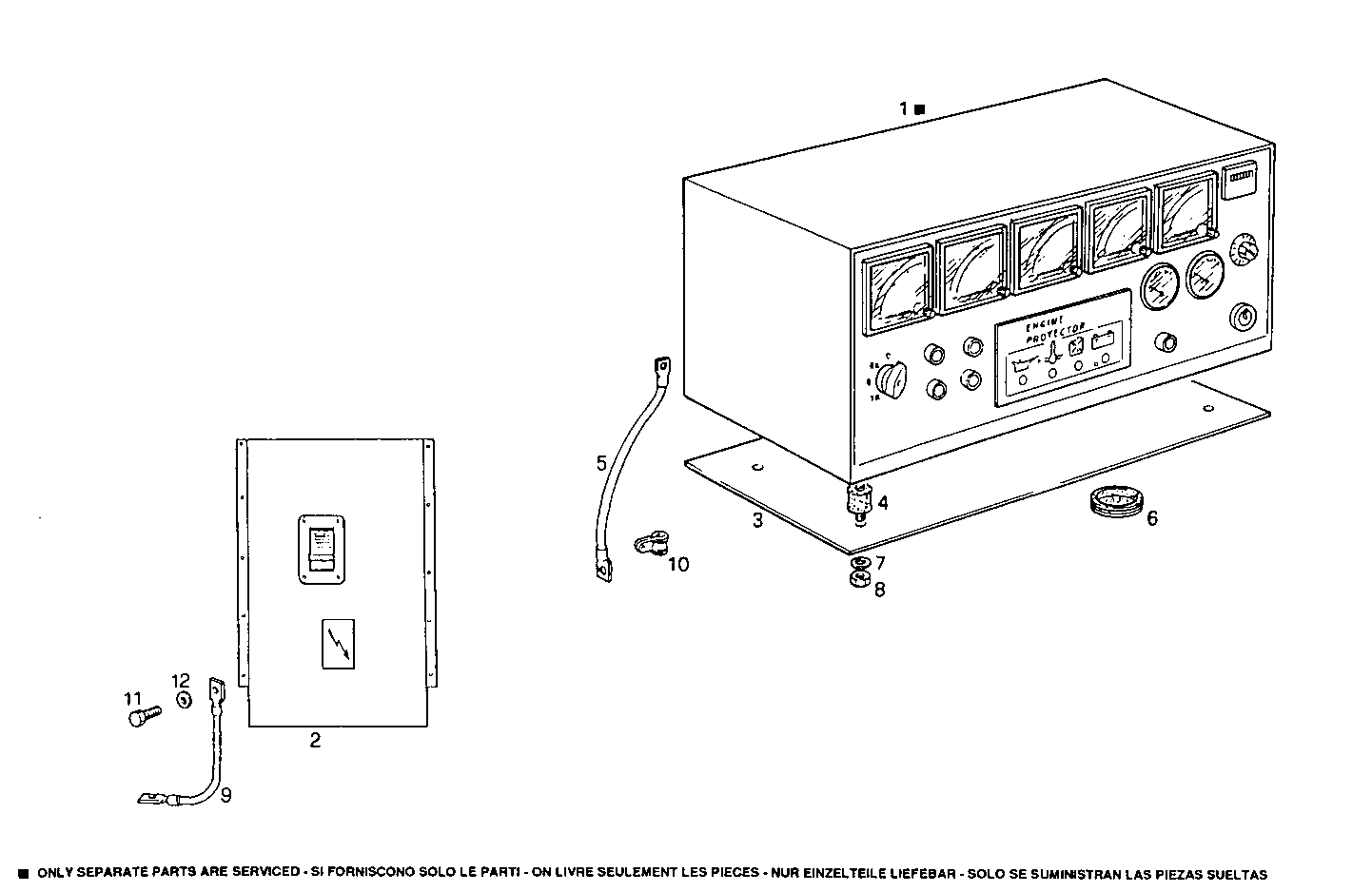

A60210045 MANUAL CONTROL BOARD FOR ELECT. MACHINE - STAMFORD

Iveco/FPT MANUAL CONTROL BOARD FOR ELECT. MACHINE

Item Part number Description
1 8009060 CONTROL BOARD ASSY 200-210KVA 380V 50-60HZ [from 07-93]
2 8110787 SWITCH 400A
3 8111018 COVER
4 8104155 DOWEL
5 8006993 EARTH WIRE
6 8113214 INSULATING RING
7 17088474 WASHER Ø6X12 MM
8 17037821 HEXAGON NUT M6X1
9 8104358 EARTH WIRE
10 17314890 CLIP
11 16043124 SCREW M8X14 MM
12 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
