GE8210SRi25.00A955

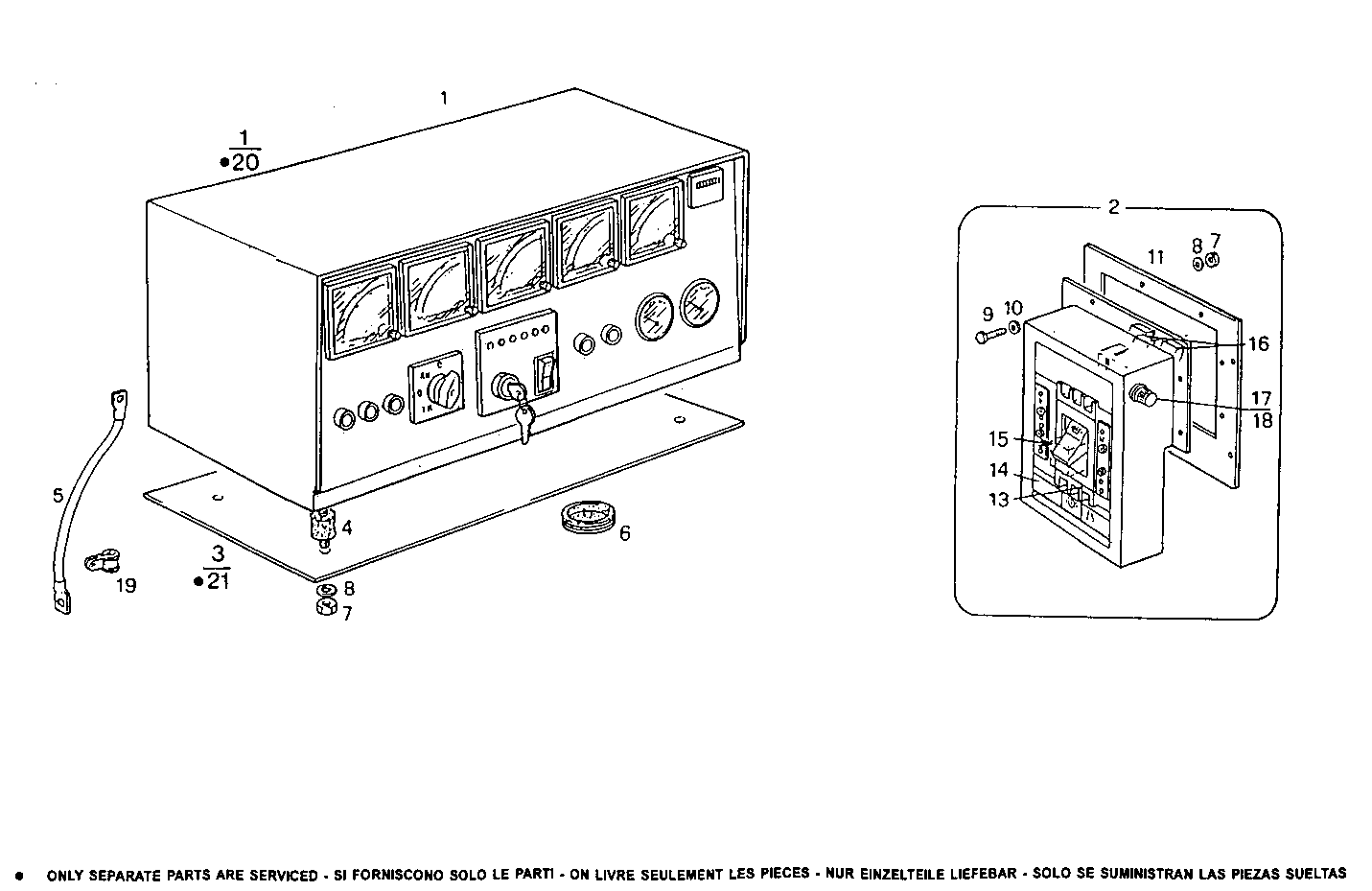

A60230051 MANUAL CONTROL BOARD FOR ELECT. MACHINE - MARELLI [D 07-1995] [from07-1995]
Item | Part number | Description |
---|---|---|
1 | 8018940 | CONTROL BOARD ASSY 220V/380V 50-60HZ |
2 | 8020590 | SWITCH 400A |
3 | 8019260 | COVER |
4 | 8104155 | DOWEL |
5 | 8110852 | EARTH WIRE |
6 | 8113214 | INSULATING RING |
7 | 17037821 | HEXAGON NUT M6X1 |
8 | 17088474 | WASHER Ø6X12 MM |
9 | 16603524 | SCREW M6X12 MM (8.8) |
10 | 17094714 | WASHER Ø6,4X12 MM |
11 | 8021114 | COVER |
13 | 8021332 | THERMOSWITCH |
14 | 8021327 | SWITCH |
15 | 8021328 | MINIMUN TENSION COIL |
16 | 8090287 | TRANSFORMATOR |
17 | 8105267 | FUSE BOX 2A |
18 | 8105216 | FUSE 10A |
19 | 17314890 | CLIP |
20 | 8009060 | CONTROL BOARD ASSY 200-210KVA 380V 50-60HZ [from 07-93] |
21 | 8010157 | COVER [up to 08-94] |
