GE8210SRi25.01A955

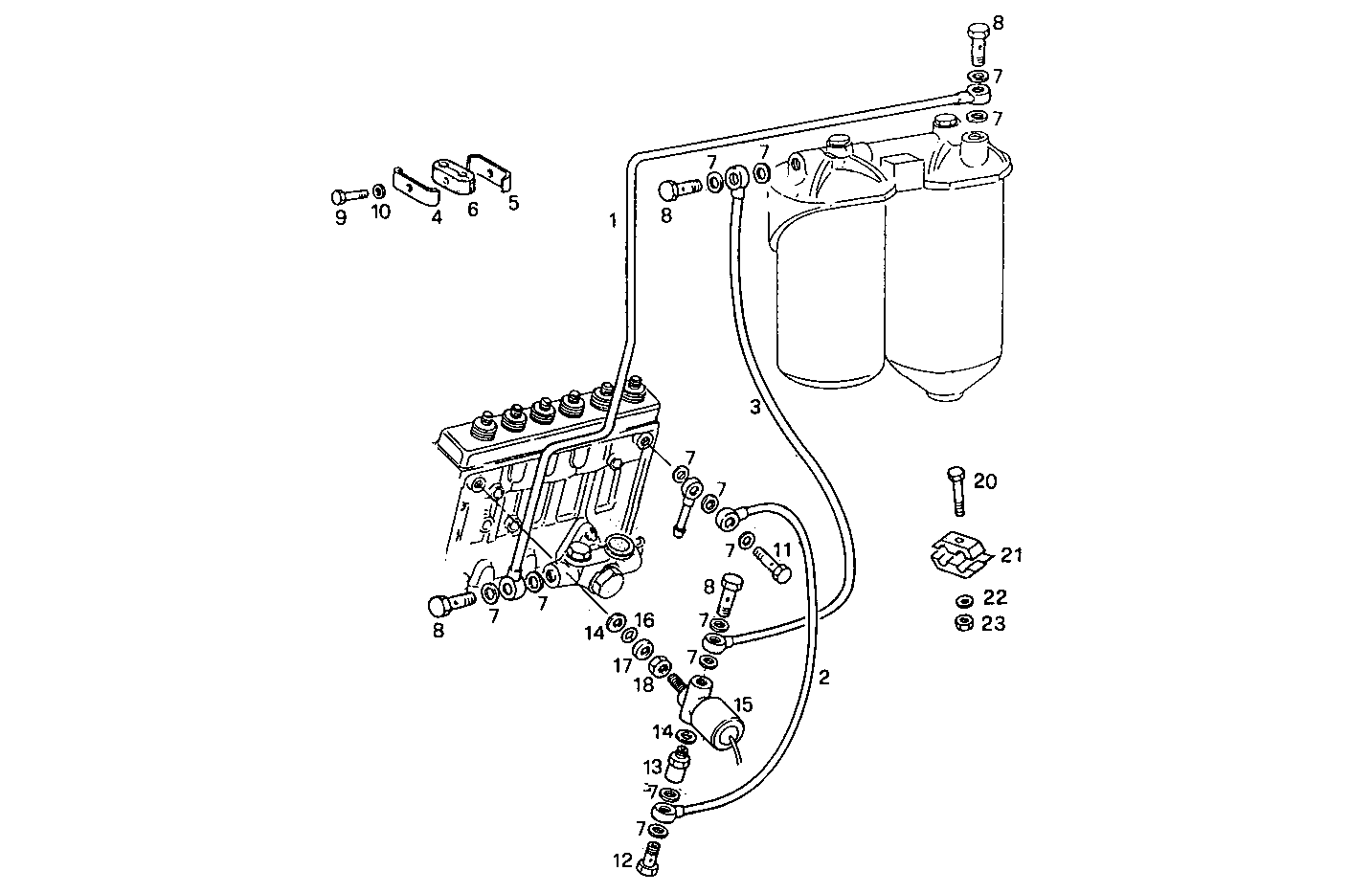

2030.104 FUEL LINES

Iveco/FPT FUEL LINES

Item Part number Description
1 8016444 FUEL LINE [from 07-94]
2 8018344 FUEL LINE [from 07-94]
3 8019000 FUEL LINE
4 4644288 CLIP
5 4644289 CLIP
6 4871771 RUBBER LUG
7 98474308 SEAL GASKET Ø14X22 MM
8 4864083 SCREW CONNECTOR M14X1,5X30 MM
9 16603824 SCREW M6X25
10 17088474 WASHER Ø6X12 MM
11 61608319 SCREW CONNECTOR
12 8020609 SCREW CONNECTOR [from 04-94]
13 8102465 VALVE
14 4858608 SEAL GASKET dia.14x19,5x1,5
15 8017500 ELECTROVALVE [from 04-94]
16 17281581 O-RING Ø12,37X2,62 MM
17 8006339 CAP
18 16508711 NUT M14X1,5 [from 05-92]
19 98404882 PIPE SOCKET Ø8 MM
20 16605924 SCREW M8X40 MM
21 8010505 CLAMP Ø16 MM
22 17094914 WASHER 8x16
23 17152821 NUT M8 [up to 555939]
