GE8210SRI25.01R970

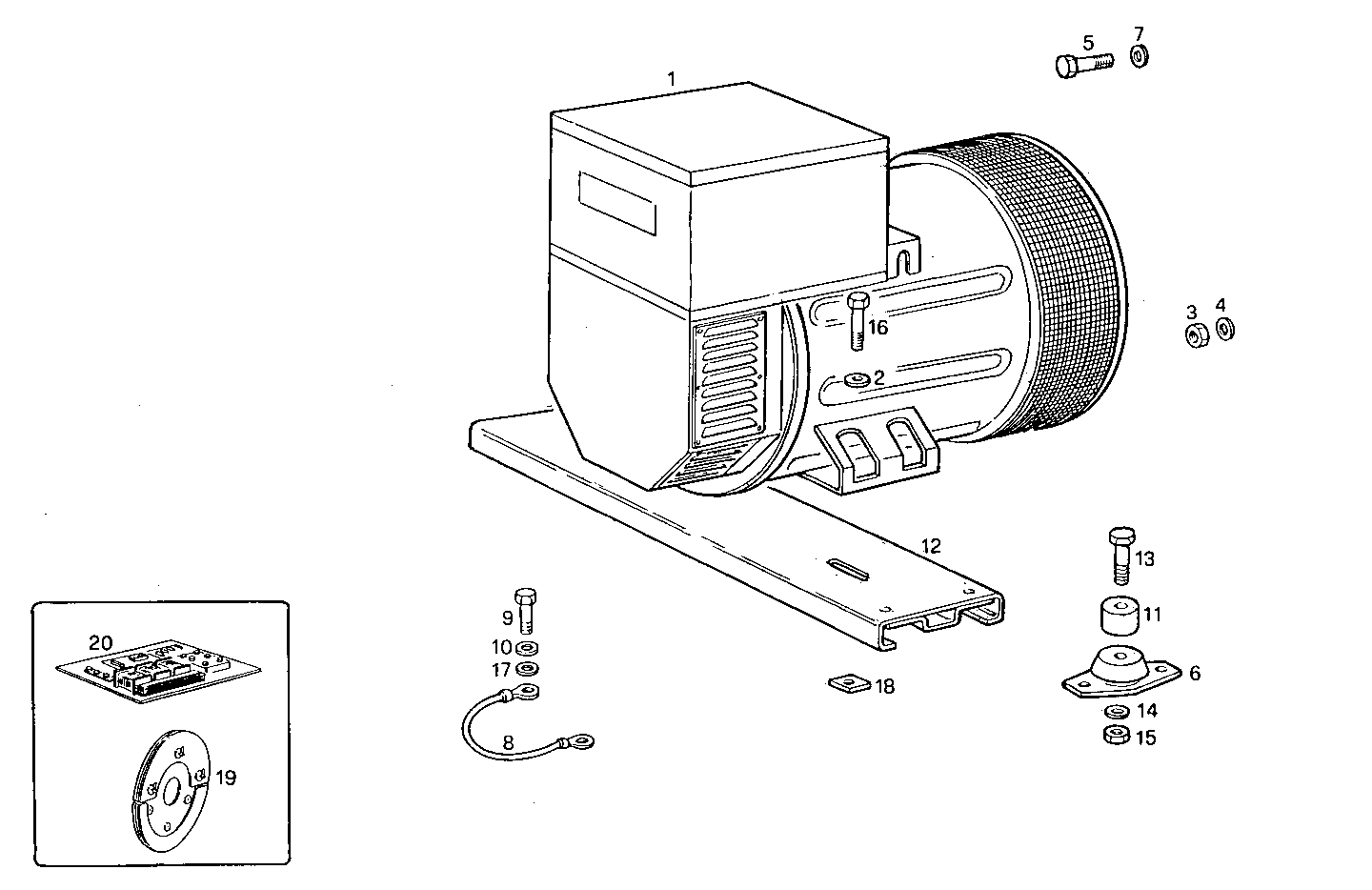

A37410026 SINGLE BEARING ELECTRIC MACHINE - MECC-ALTE

Iveco/FPT SINGLE BEARING ELECTRIC MACHINE

Item Part number Description
1 8028100 ELECTRIC MACHINE ECO 37 1L 50-60HZ
2 17092774 WASHER Ø20X38X4,6 MM
3 17038221 HEXAGON NUT M10
4 17090174 SPRING WASHER Ø10X20 MM
5 15540431 HEXAGON BOLT M12X1,25X30 MM
6 4955094 RUBBER PAD
7 17091074 WASHER Ø12X24X2,8 MM
8 8104707 WIRE/CABLE
9 16605524 HEXAGON BOLT M8X20 MM
10 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
11 8108891 SPACING BAR
12 8019651 SUPPORT
13 16620524 SCREW M24X120
14 17093174 WASHER Ø24X46X5,4 MM
15 17039721 HEXAGON NUT M24
16 16617424 SCREW M20X60
17 16665504 WASHER Ø8 MM
18 8019231 PLATE
19 8093777 EL.MACH.DIODE BRIDGE MECC-ALTE
20 8093778 EL.MACHINE VOLTAGE REGUL. MECC-ALTE
