GE8210SRi26.01A50L

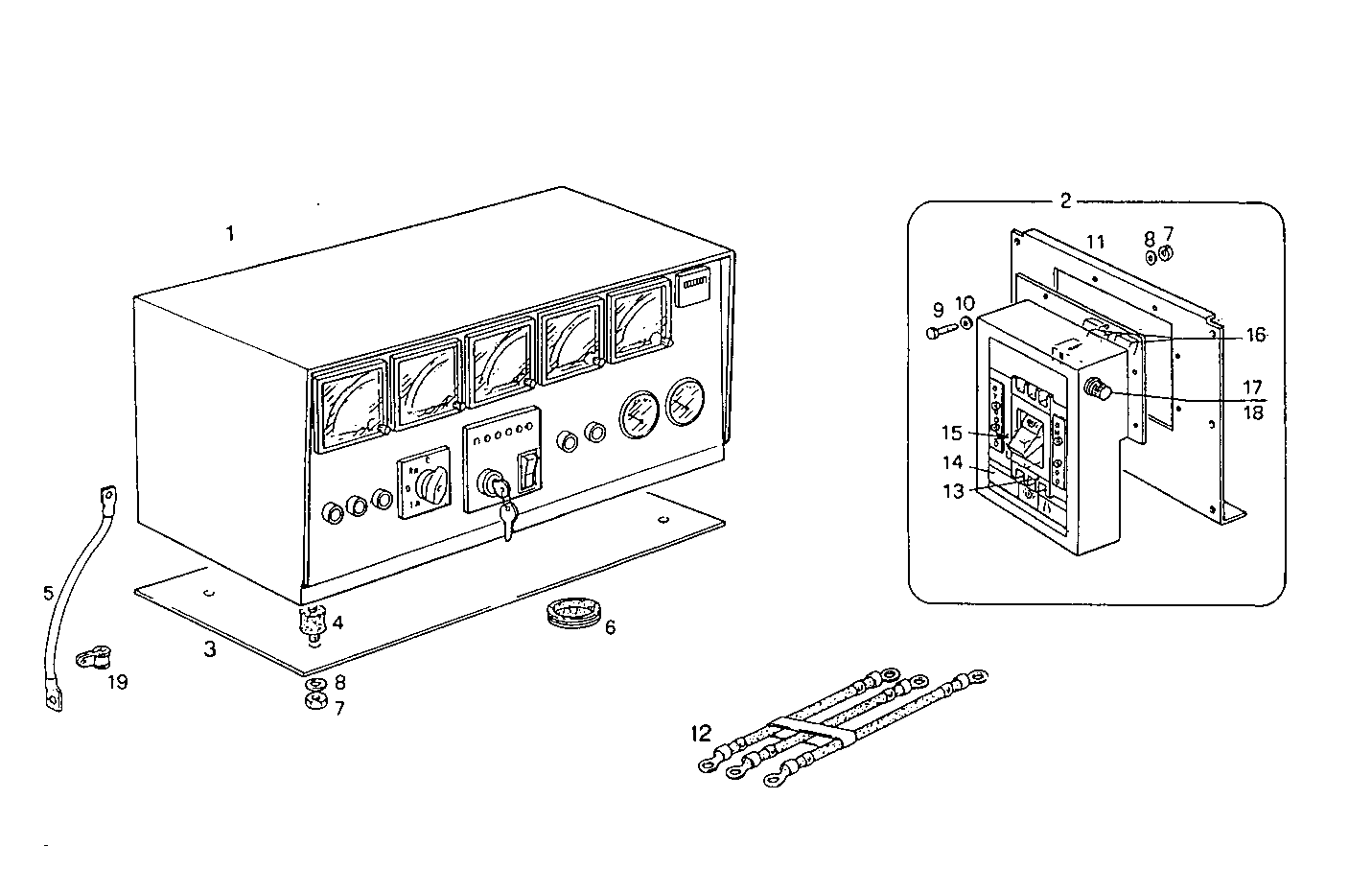

A60220064 MANUAL CONTROL BOARD FOR ELECT. MACHINE - LEROY [D 07-1995] [from07-1995]

Iveco/FPT MANUAL CONTROL BOARD FOR ELECT. MACHINE

Item Part number Description
1 8018957 CONTROL BOARD ASSY 220V/380V 50-60HZ
2 8020591 SWITCH 600A
3 8019257 COVER
4 8104155 DOWEL
5 8110852 EARTH WIRE
6 8113214 INSULATING RING
7 17037821 HEXAGON NUT M6X1
8 17088474 WASHER Ø6X12 MM
9 16603524 SCREW M6X12 MM (8.8)
10 17094714 WASHER Ø6,4X12 MM
11 8021224 COVER
12 8020691 WIRE/CABLE
13 8021333 SWITCH
14 8021327 SWITCH
15 8021328 MINIMUN TENSION COIL
16 8090288 TRANSFORMATOR
17 8105267 FUSE BOX 2A
18 8105216 FUSE 10A
19 17314890 CLIP
