GE8210SRi26.01A70L

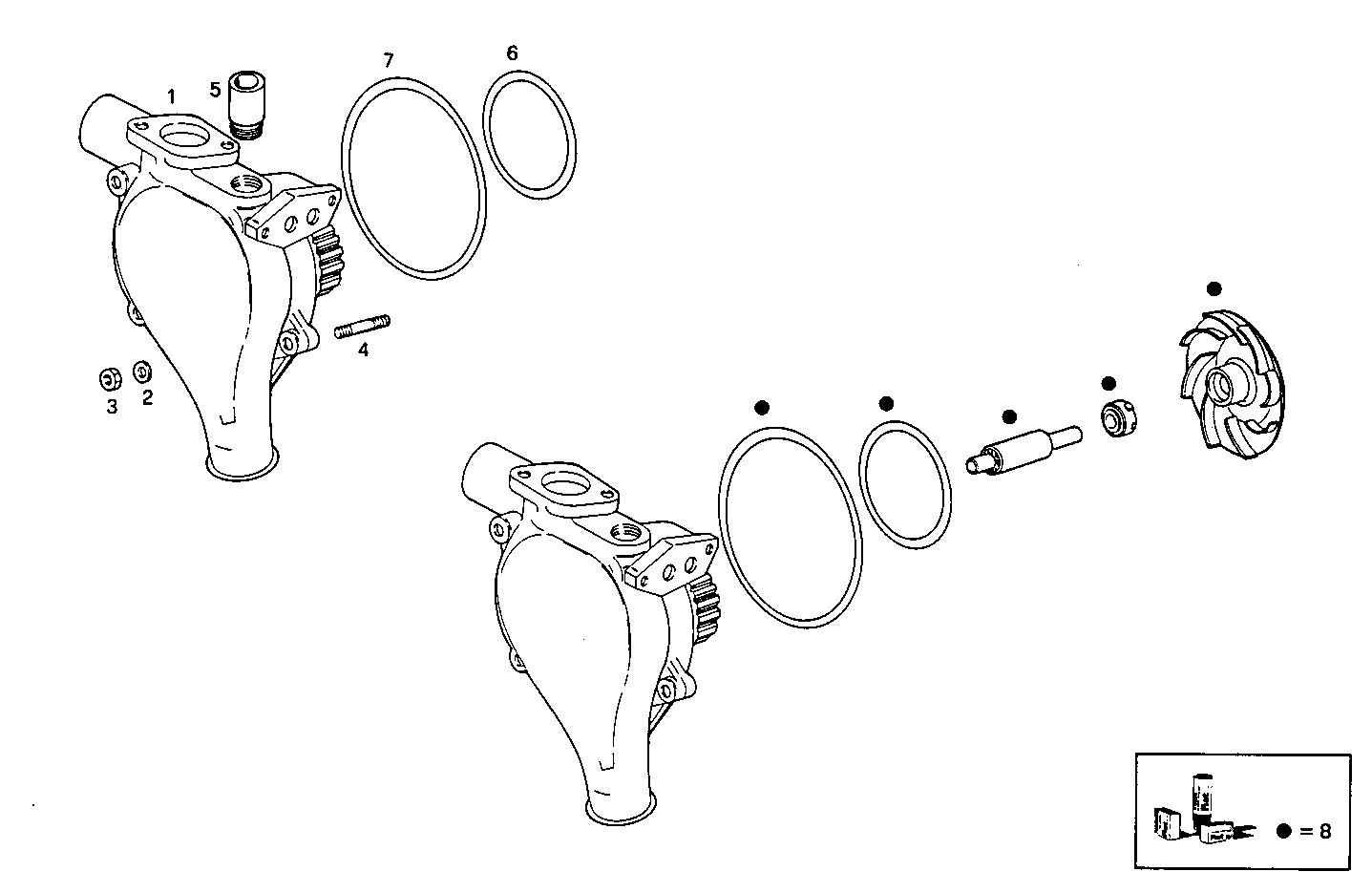

3200.090 WATER PUMP
Item | Part number | Description |
---|---|---|
1 | 4808471 | WATER PUMP ASSY |
2 | 11193871 | WASHER Ø8X16X1,4 MM |
3 | 17037931 | HEXAGON NUT M8X1,25 |
4 | 13516824 | STUD M8X12X20 |
5 | 61315469 | FILLER NECK |
6 | 14460781 | O-RING Ø71,12 MM SP=2,62 MM |
7 | 14461680 | O-RING Ø2,62X120,32 MM |
8 | 42530032 | WATER PUMP |
