GE8210SRi26.01A70L

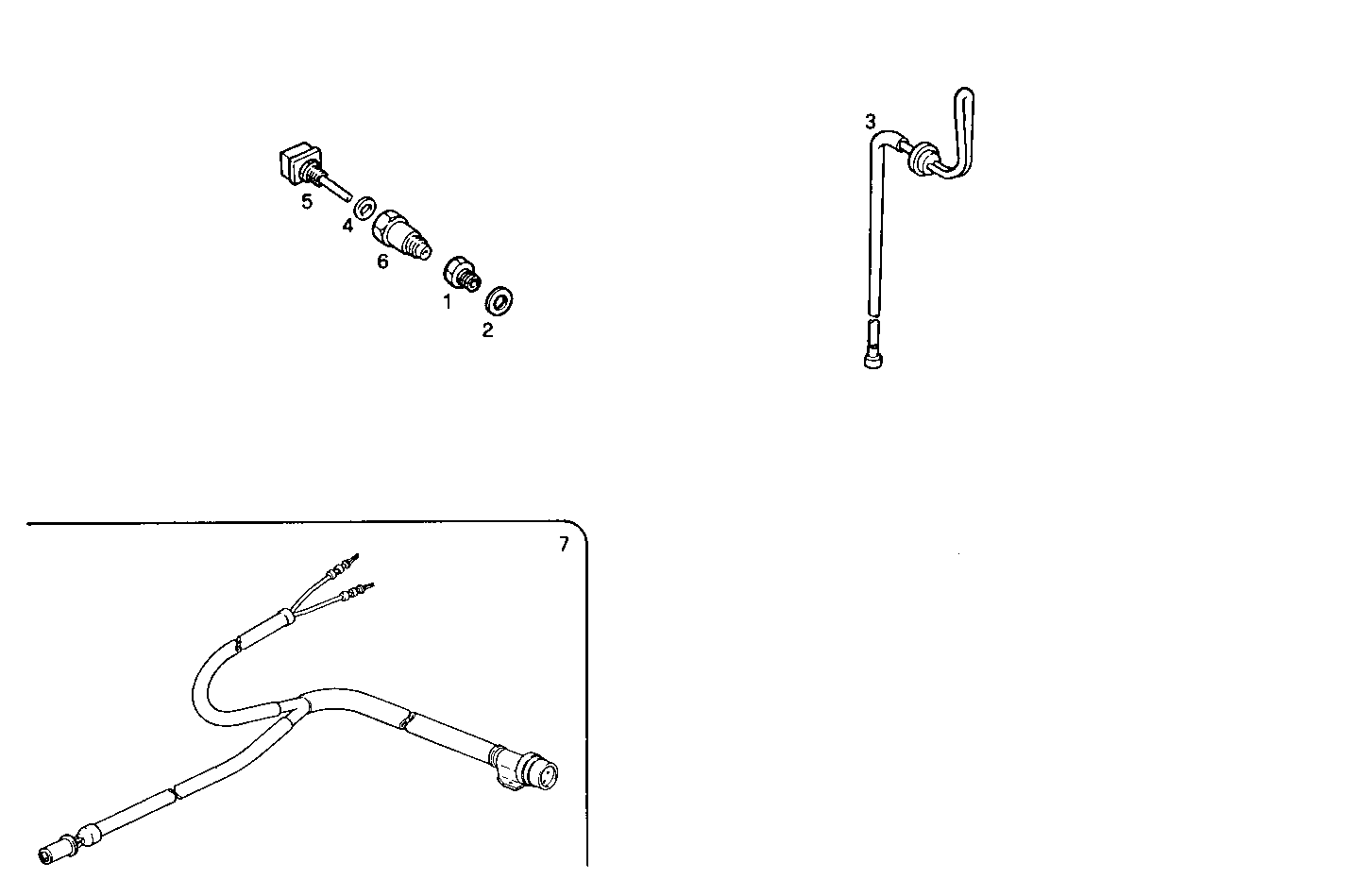

A20040048 WATER PREHEATER DEVICE - 220V [D 03-1994] [from03-1994]

Iveco/FPT WATER PREHEATER DEVICE - 220V

Item Part number Description
1 8109299 BUSH M24X1,5/M16X1,5
2 98429281 SEAL GASKET Ø24X31 MM SP=1,5 MM
3 98450928 RESISTOR
4 11270460 GASKET Ø17X21X1,5 MM
5 8017120 THERMOSTAT [from 10-93]
6 8017119 SPACING BAR [from 10-93]
7 8023323 ENGINE HARNESS
