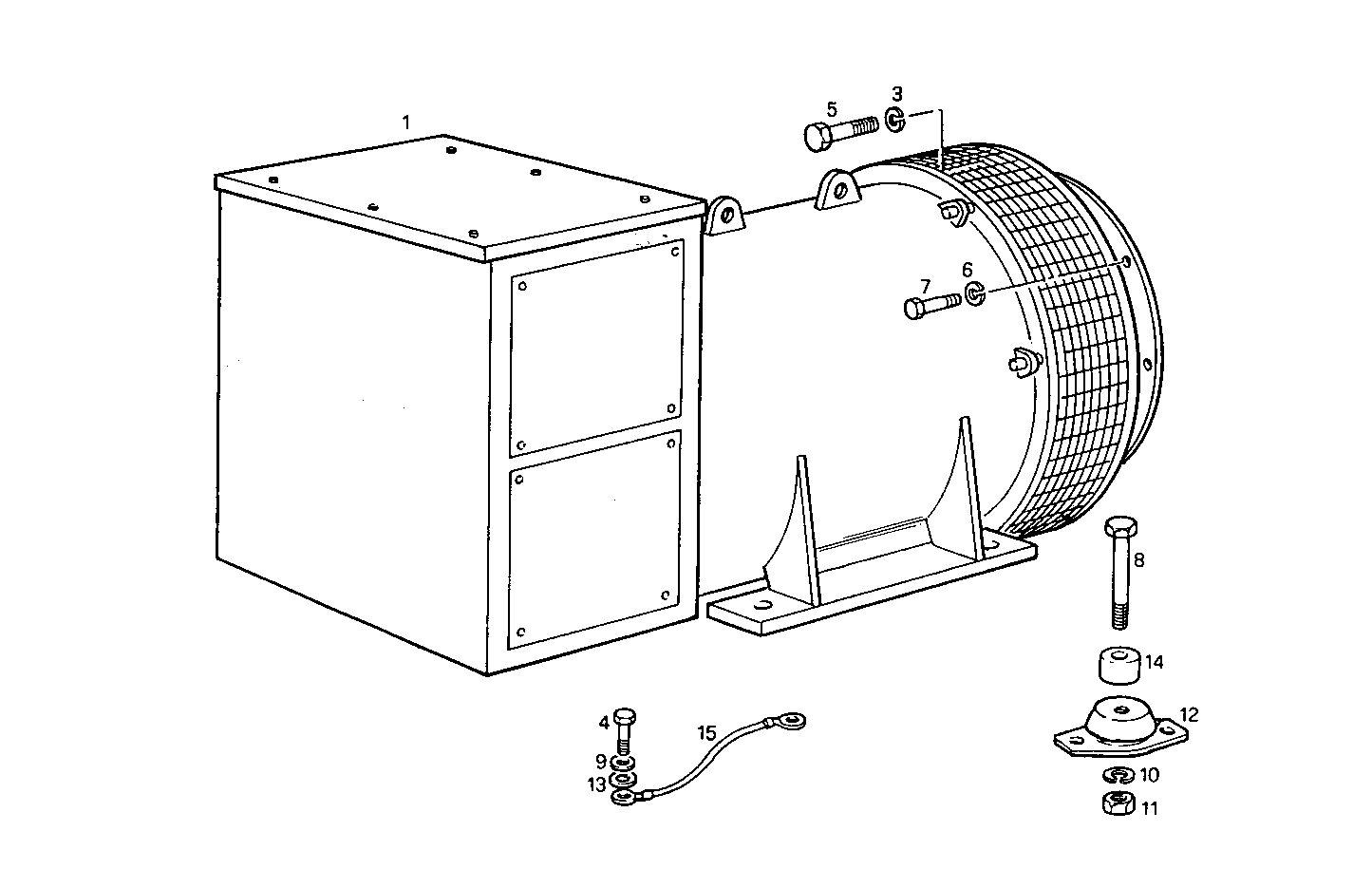

Item |
Part number |
Description |
1 |
8015646 |
ELECTRIC MACHINE LSA 461 VL12 220V-380V [up to ...] |
3 |
11198379 |
SPRING WASHER Ø10X20 MM SP=2,6 |
4 |
15970521 |
HEXAGON BOLT M10X20 MM |
5 |
11234721 |
HEXAGON BOLT M10X1,25X45 MM |
6 |
17091171 |
WASHER Ø12X24X3,2 MM |
7 |
15540431 |
HEXAGON BOLT M12X1,25X30 MM |
8 |
15978121 |
HEXAGON BOLT |
9 |
10730501 |
WASHER Ø10,2 MM |
10 |
11200179 |
SPRING WASHER Ø14X32 MM |
11 |
12164011 |
HEXAGON NUT M14X1,5 [up to…] |
12 |
4927807 |
RUBBER PAD |
13 |
11190679 |
SPRING WASHER Ø10X27 MM SP=2,5 |
14 |
8005402 |
SPACING BAR 35MM |
15 |
8104707 |
WIRE/CABLE |
