GE8210SRi26.01A70S

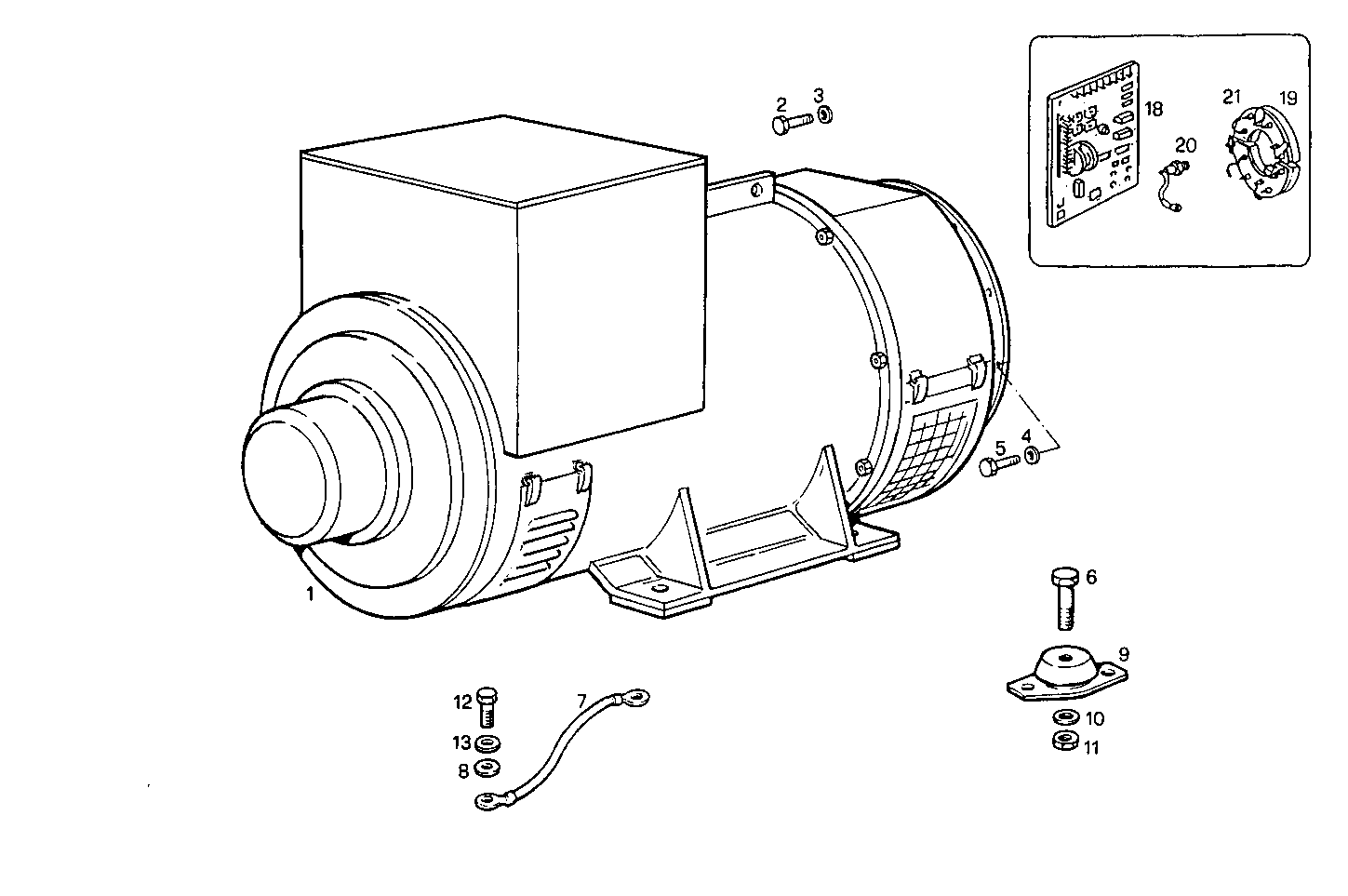

A37010039 SINGLE BEARING ELECTRIC MACHINE - STAMFORD

Iveco/FPT SINGLE BEARING ELECTRIC MACHINE

Item Part number Description
1 8015526 ELECTRIC MACHINE HC434/1D 50-60HZ
2 15970921 HEXAGON BOLT M10X1,25X35 MM
3 11198379 SPRING WASHER Ø10X20 MM SP=2,6
4 17091171 WASHER Ø12X24X3,2 MM
5 15542731 HEXAGON BOLT M12X1,25X28 MM
6 15997521 SCREW
7 8104358 EARTH WIRE
8 10730501 WASHER Ø10,2 MM
9 4955094 RUBBER PAD
10 11200679 SPRING WASHER Ø24,5 MM
11 12164511 HEXAGON NUT M24X2
12 15970521 HEXAGON BOLT M10X20 MM
13 11190679 SPRING WASHER Ø10X27 MM SP=2,5
18 8106748 VOLTAGE REGULATOR Stamford
19 8106740 DIODE Stamford - REVERSE
20 8106741 DIODE Stamford - FORWARD
21 8106742 SUPPRESSOR Stamford
