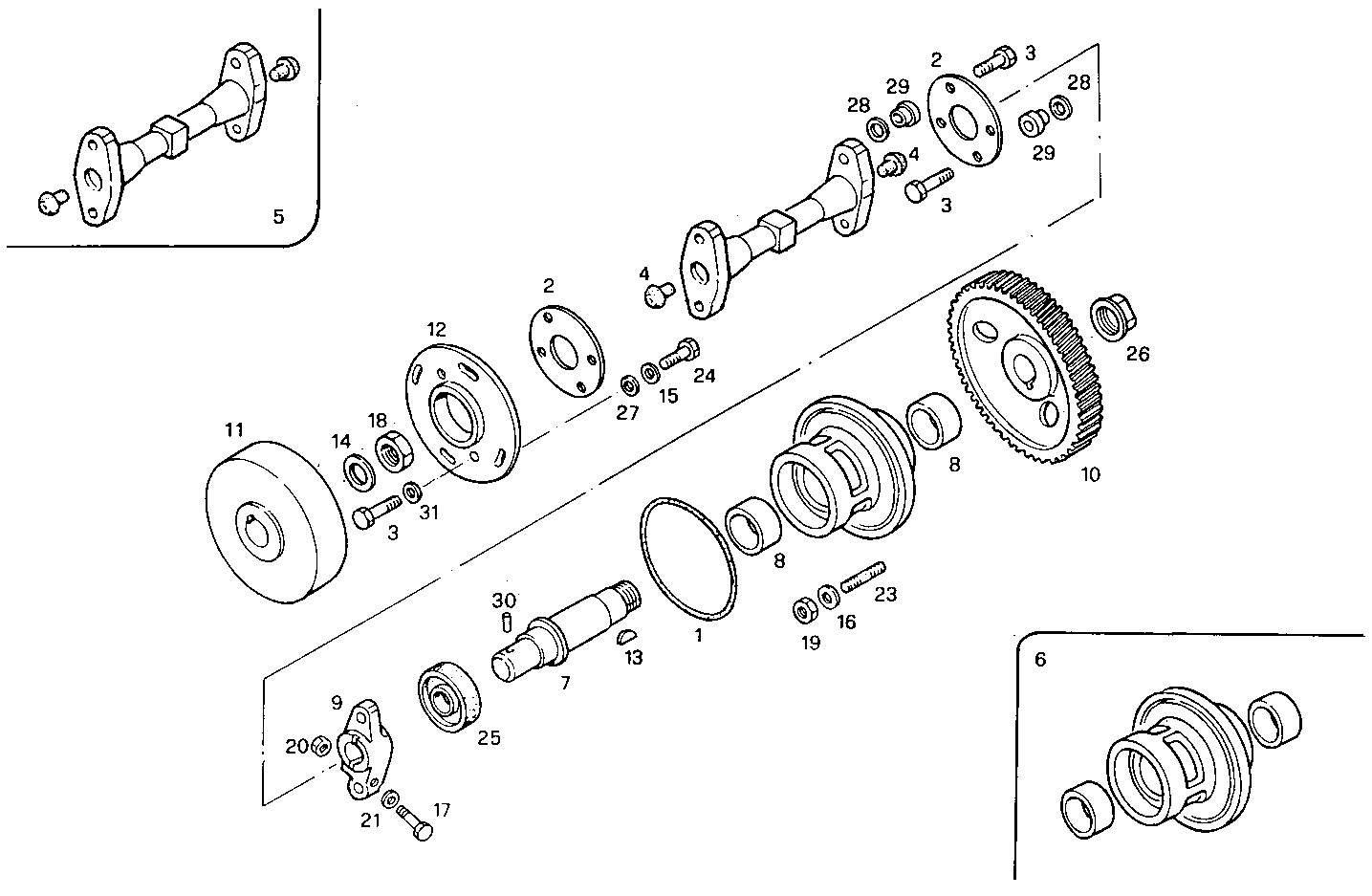

1410.059 INJECTION PUMP DRIVE

Iveco/FPT INJECTION PUMP DRIVE

Item Part number Description
1 17292481 O-RING Ø132,9 MM SP=3,5 MM
2 4882440 RING
3 16675734 HEXAGON BOLT M10X25 MM
4 4608219 RUBBER PAD
5 98425508 SHAFT ASSY
6 98441163 SUPPORT ASSY
7 99448787 INJECT.PUMP SPIND
8 4529701 BEARING BUSH
9 98462133 INJECT.PUMP SLEEVE
10 98418371 INJ.PUMP DRIV.GEA
11 8012297 HUB
12 500304324 INJECT.PUMP SLEEVE ASSY
13 10206320 KEY 5X7,5 MM
14 17092574 SPRING WASHER Ø18X36X4,2 MM
15 17095104 WASHER Ø10X21X2 MM
17 16240631 HEXAGON BOLT M12X1,25X65 MM
18 17039231 NUT M18X1,5
19 17038221 HEXAGON NUT M10
20 17042931 NUT M12
21 98462135 WASHER
23 13449424 STUD M10X15X22
24 16607724 HEXAGON BOLT M10X1,5X30 MM (8.8)
25 98494989 SHAFT SEAL Ø45X75 MM SP=10 MM
26 4799474 HEXAGON NUT
27 17090174 SPRING WASHER Ø10X20 MM
28 4882441 WASHER
29 99447927 BUSH
30 17254970 DOWEL PIN Ø5 MM
