GE8210SRi26.02A955

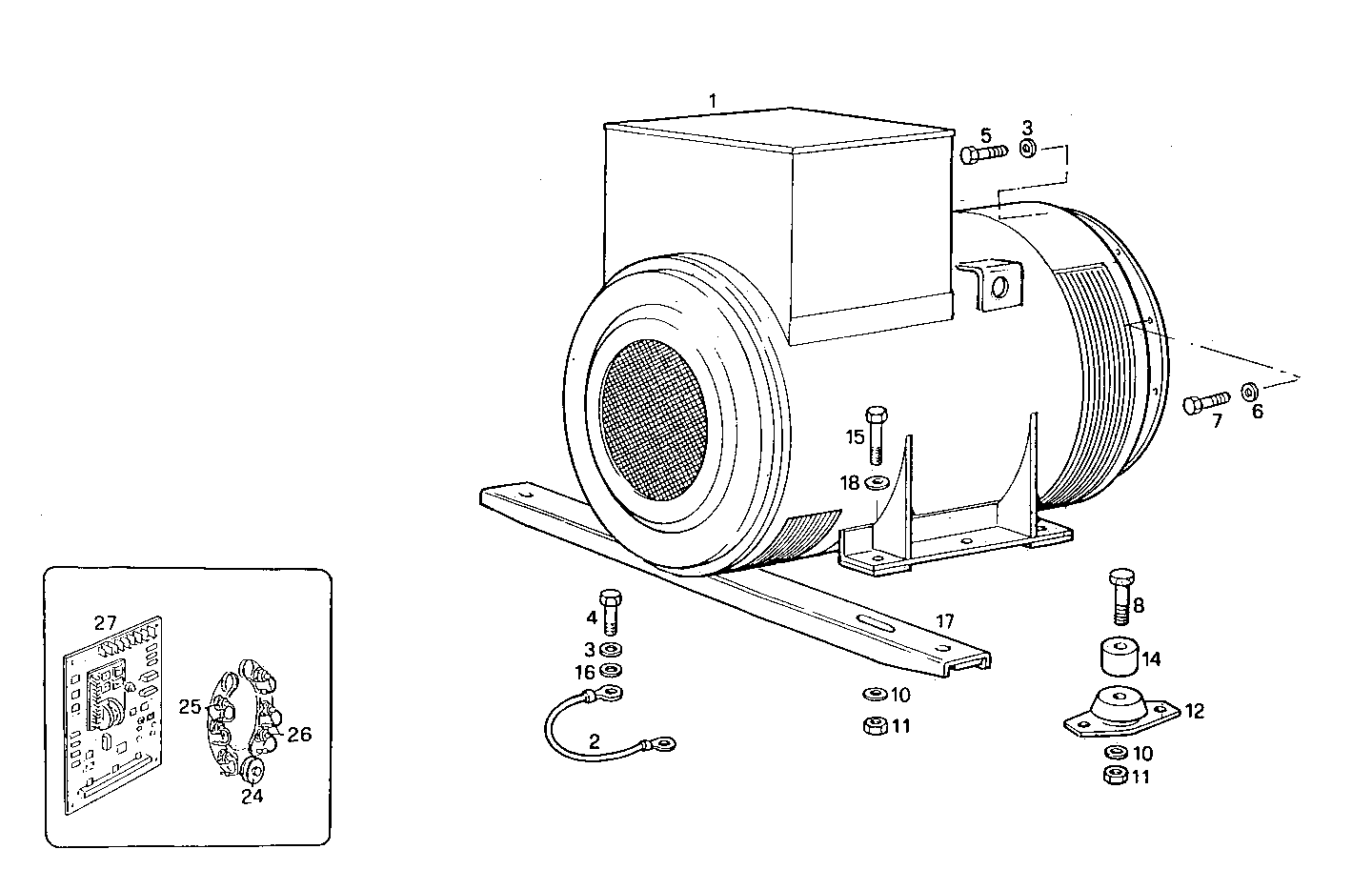

A37210067 SINGLE BEARING ELECTRIC MACHINE - MARELLI

Iveco/FPT SINGLE BEARING ELECTRIC MACHINE

Item Part number Description
1 8009786 ELECTRIC MACHINE M7B 315 SA/4 50-60HZ
2 8110852 EARTH WIRE
3 17090174 SPRING WASHER Ø10X20 MM
4 15970521 HEXAGON BOLT M10X20 MM
5 11307021 HEXAGON BOLT M10X40 MM
6 17091174 SPRING WASHER Ø12X24 MM
7 15540431 HEXAGON BOLT M12X1,25X30 MM
8 16620624 SCREW M24X130
10 17093174 WASHER Ø24X46X5,4 MM
11 17039721 HEXAGON NUT M24
12 4955094 RUBBER PAD
14 8108891 SPACING BAR
15 16620124 SCREW M24X3X80
16 17095104 WASHER Ø10X21X2 MM
17 8016859 SUPPORT
18 8016962 WASHER
24 8106490 SUPPRESSOR MARELLI
25 8106488 EL.MACHINE DIODE MARELLI - REVERSE
26 8106487 EL.MACHINE DIODE MARELLI - FORWARD
27 8091766 EL.MACHINE VOLTAGE REGUL. MARELLI
