GE8210SRi26.03R970

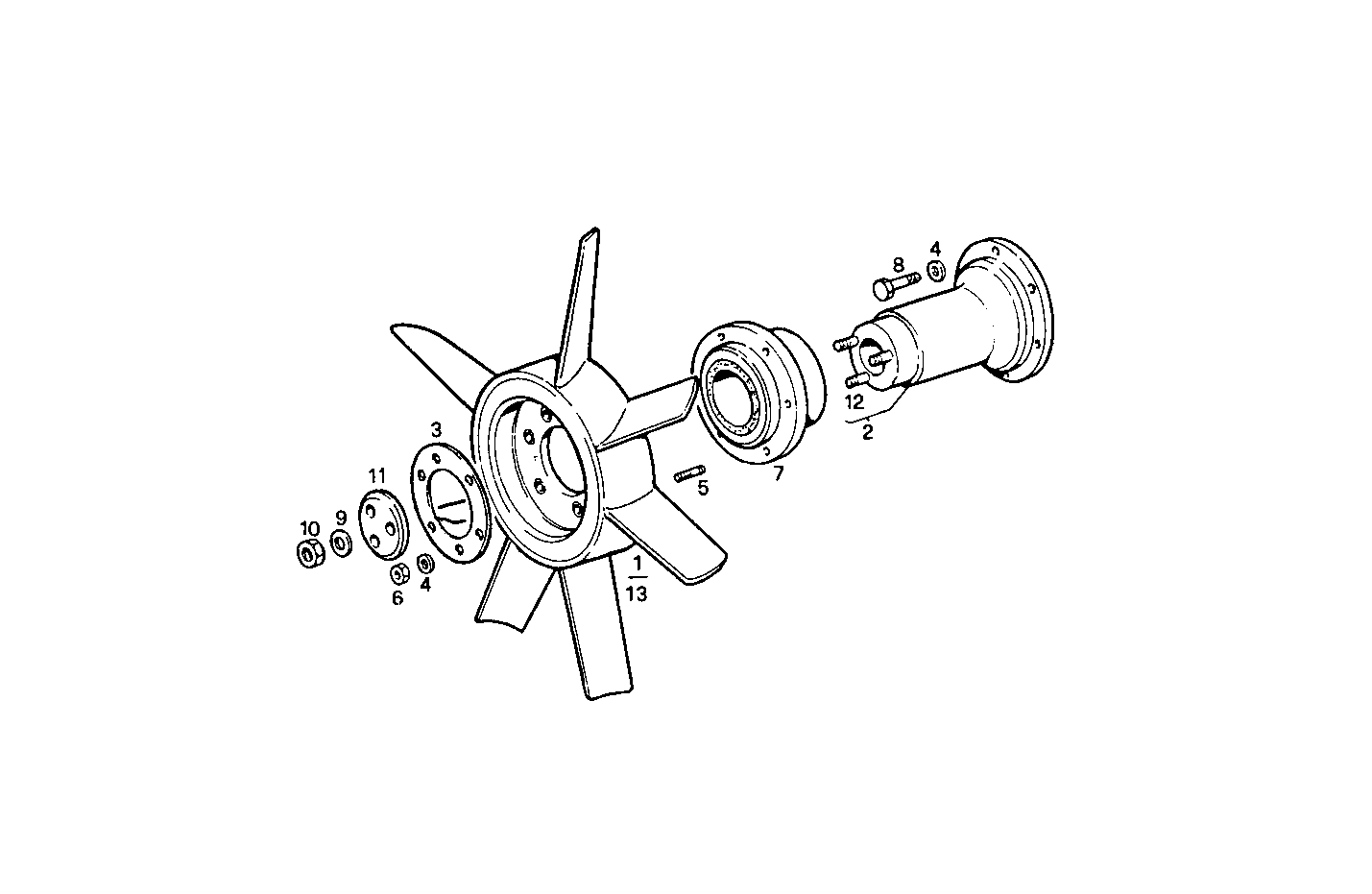

3230.010 FAN

Iveco/FPT FAN

Item Part number Description
1 8104135 FAN Ø820 MM
2 8108873 HUB ASSY
3 4933279 RING
4 17089471 SPRING WASHER Ø16X8 MM SP=1,4 MM
5 16729224 STUD M8X16 MM
6 17037931 HEXAGON NUT M8X1,25
7 8031260 FLEXIBLE COUPLING
8 16043721 HEXAGON BOLT M8X28 MM
9 17090174 SPRING WASHER Ø10X20 MM
10 17038221 HEXAGON NUT M10
11 8108876 SPACING BAR
12 13546421 STUD M10X1,25X48 MM
13 8021735 FAN DIA 820
