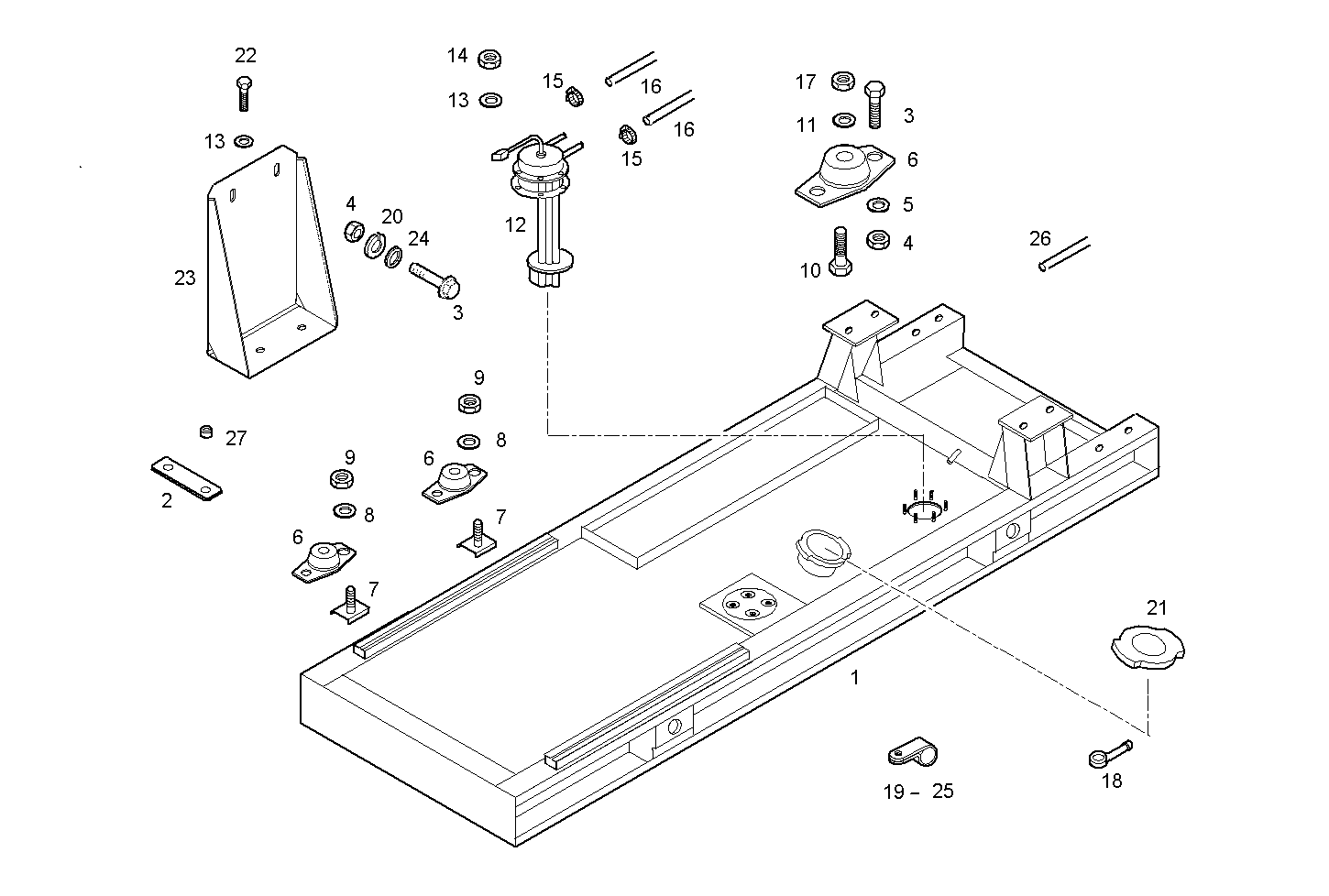

| Item |
Part number |
Description |
|
1 |
8016837 |
SUBBSAE-SUPPORT FRAME |
|
2 |
8010041 |
SPACING BAR SP=7 MM |
|
3 |
16614824 |
SCREW M16X50 |
|
4 |
17038931 |
HEXAGON NUT M16X2 |
|
5 |
17092374 |
SPRING WASHER Ø16X34X3,6 MM |
|
6 |
4955094 |
RUBBER PAD |
|
7 |
8015168 |
SCREW |
|
8 |
17091974 |
SPRING WASHER Ø14X32 MM SP=3,4 MM |
|
9 |
17038721 |
NUT M14X2 [from ...] |
|
10 |
16620124 |
SCREW M24X3X80 |
|
11 |
17093174 |
WASHER Ø24X46X5,4 MM |
|
12 |
8016863 |
FUEL LEVEL GAUGE |
|
13 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
14 |
17037621 |
HEXAGON NUT M4 |
|
15 |
18087991 |
CLIP Ø8/16 MM |
|
16 |
17723082 |
BREATHER PIPE |
|
17 |
17039721 |
HEXAGON NUT M24 |
|
18 |
98413896 |
PIPE SOCKET Ø8 MM |
|
19 |
17317390 |
FASTENING BRACKET Ø28 MM x M8 |
|
20 |
17092174 |
SPRING WASHER Ø16X32X3,4 |
|
21 |
8018375 |
PLUG |
|
22 |
16607524 |
HEXAGON BOLT M10X1,5X20 MM (8.8) |
|
23 |
8016858 |
SUPPORT |
|
24 |
17095704 |
WASHER Ø16X30 MM |
|
25 |
4936278 |
CLIP |
|
26 |
19053382 |
HOSE |
|
27 |
8019415 |
SPACING BAR |
