GE8210SRi26.03R970

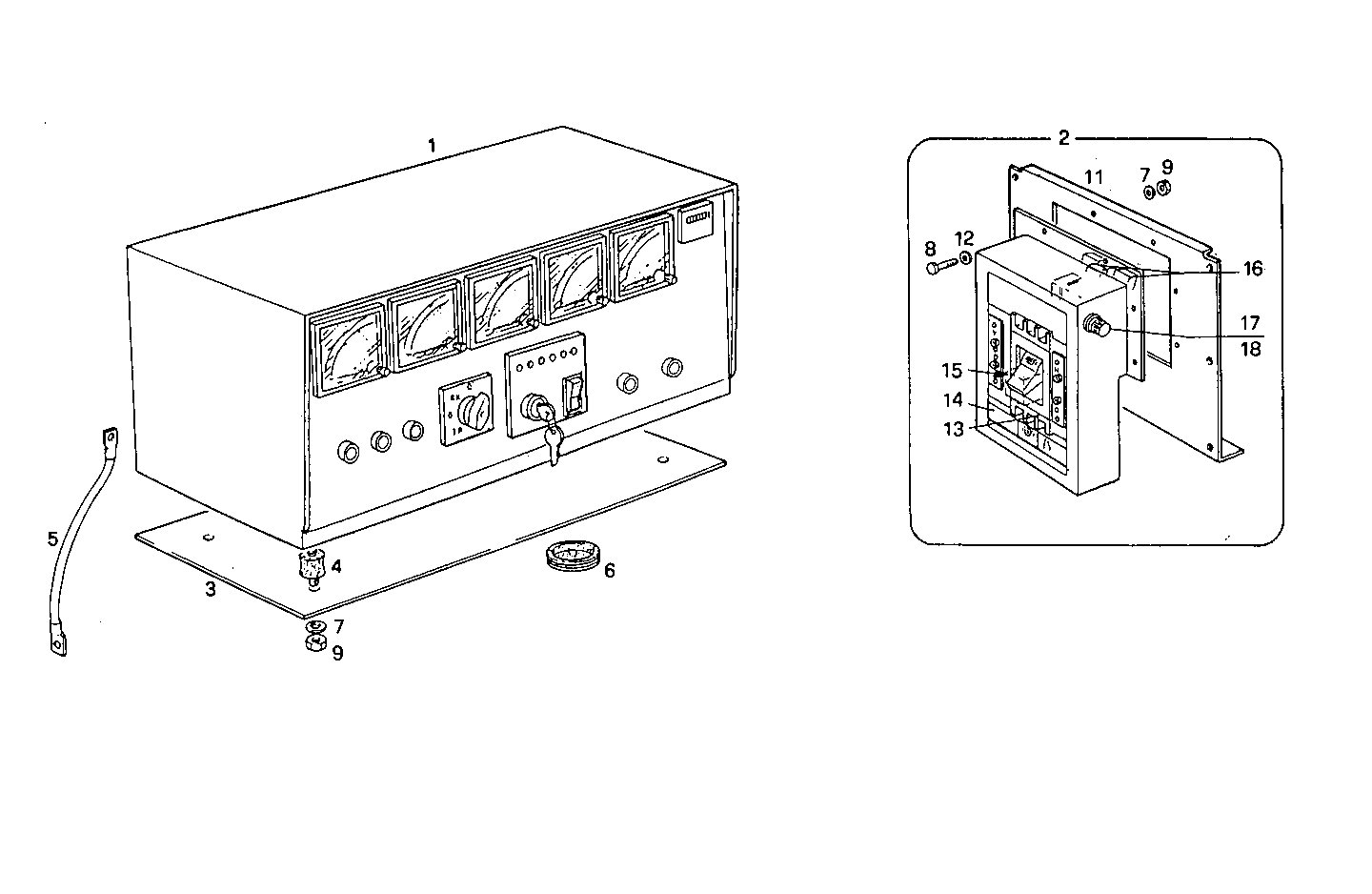

A60310010 MANUAL CONTROL BOARD FOR ELECT. MACHINE - STAMFORD

Iveco/FPT MANUAL CONTROL BOARD FOR ELECT. MACHINE

Item Part number Description
1 8022361 CONTROL BOARD ASSY 220V/380V 50HZ-60HZ
2 8020591 SWITCH 600A
3 8109259 COVER
4 8104155 DOWEL
5 8006993 EARTH WIRE
6 8113214 INSULATING RING
7 17088474 WASHER Ø6X12 MM
8 16603524 SCREW M6X12 MM (8.8)
9 17037821 HEXAGON NUT M6X1
11 8027609 COVER
12 17094714 WASHER Ø6,4X12 MM
13 8021333 SWITCH
14 8021327 SWITCH
15 8021328 MINIMUN TENSION COIL
16 8090288 TRANSFORMATOR
17 8105267 FUSE BOX 2A
18 8105216 FUSE 10A
