GE8210SRi27.00A955

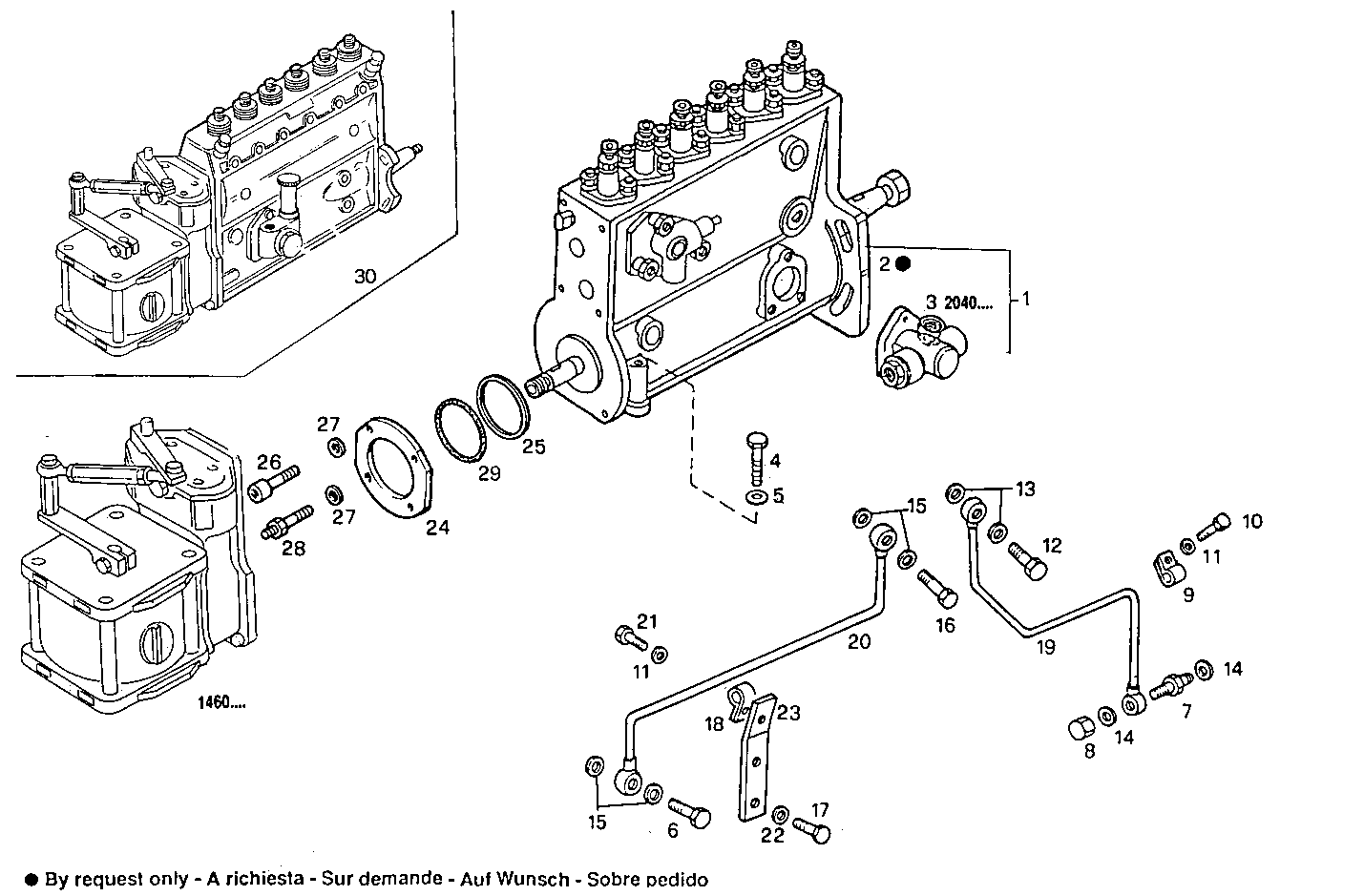

1400.066 INJECTION PUMP ASSY

Iveco/FPT INJECTION PUMP ASSY

Item Part number Description
1 8016795 INLINE INJECT.PUMP ASSY
2 8012017 INLINE INJECT.PUMP ASSY BOSCH
3 8093372 FUEL PUMP
4 15971621 HEXAGON BOLT M10X1,25X90 MM
5 17090174 SPRING WASHER Ø10X20 MM
6 4864083 SCREW CONNECTOR M14X1,5X30 MM
7 4621393 THREADED UNION
8 11902111 PLUG
9 17316190 PIPE CLIP Ø6 MM
10 16043124 SCREW M8X14 MM
11 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
12 705736 SCREW CONNECTOR
13 4858606 GASKET Ø10X14X1 MM
14 4837613 GASKET [up to ...]
15 98474308 SEAL GASKET Ø14X22 MM
16 98479387 SCREW CONNECTOR [from 301968]
17 15004021 HEXAGON BOLT M10X1,25X25 MM
18 17316490 CLIP
19 98443555 PIPE
20 98474954 PIPE
21 16043021 HEXAGON BOLT M8X12 MM
23 4645737 FASTENING BRACKET
24 8008549 FLANGE
25 8008548 GASKET
26 8008550 SCREW
27 17128634 WASHER Ø6 MM
28 8008551 SCREW
29 17284281 O-RING Ø55,24X2,62 MM
30 8092990 INLINE INJECT.PUMP ASSY
