GE8210SRi27.00A955

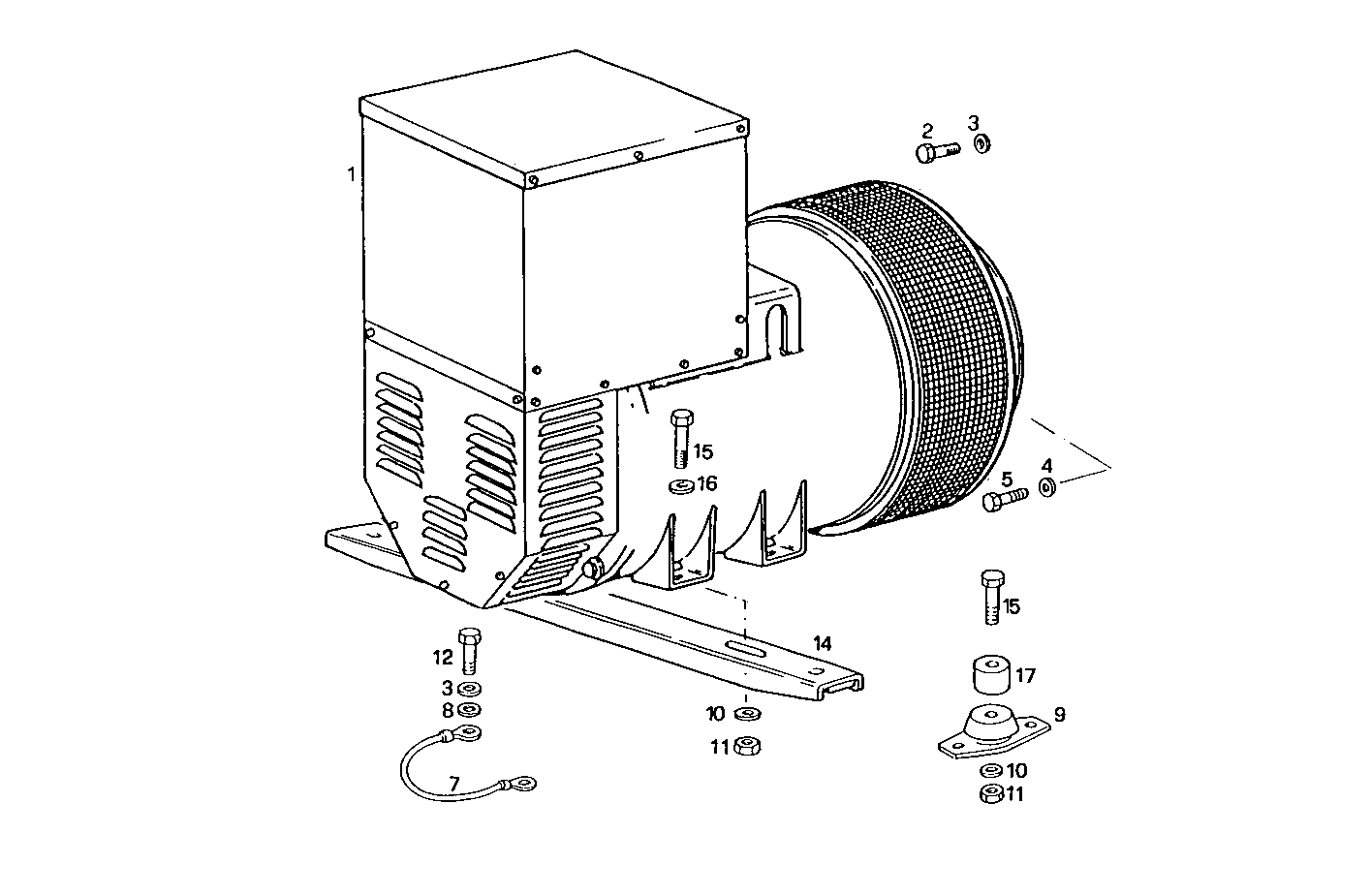

A37410059 SINGLE BEARING ELECTRIC MACHINE - MECC-ALTE
| Item | Part number | Description |
|---|---|---|
| 1 | 8028084 | ELECTRIC MACHINE ECO 40 1S 50-60HZ |
| 2 | 11343821 | HEXAGON BOLT M10X1,25X50 MM |
| 3 | 17090174 | SPRING WASHER Ø10X20 MM |
| 4 | 17091171 | WASHER Ø12X24X3,2 MM |
| 5 | 15540431 | HEXAGON BOLT M12X1,25X30 MM |
| 7 | 8023916 | EARTH WIRE |
| 8 | 17095104 | WASHER Ø10X21X2 MM |
| 9 | 4955094 | RUBBER PAD |
| 10 | 17093174 | WASHER Ø24X46X5,4 MM |
| 11 | 17039721 | HEXAGON NUT M24 |
| 12 | 16607424 | SCREW M10X16 |
| 14 | 8016859 | SUPPORT |
| 15 | 16620224 | SCREW M24X90 |
| 16 | 8016962 | WASHER |
| 17 | 8108891 | SPACING BAR |
