GE8210SRi27.00A955

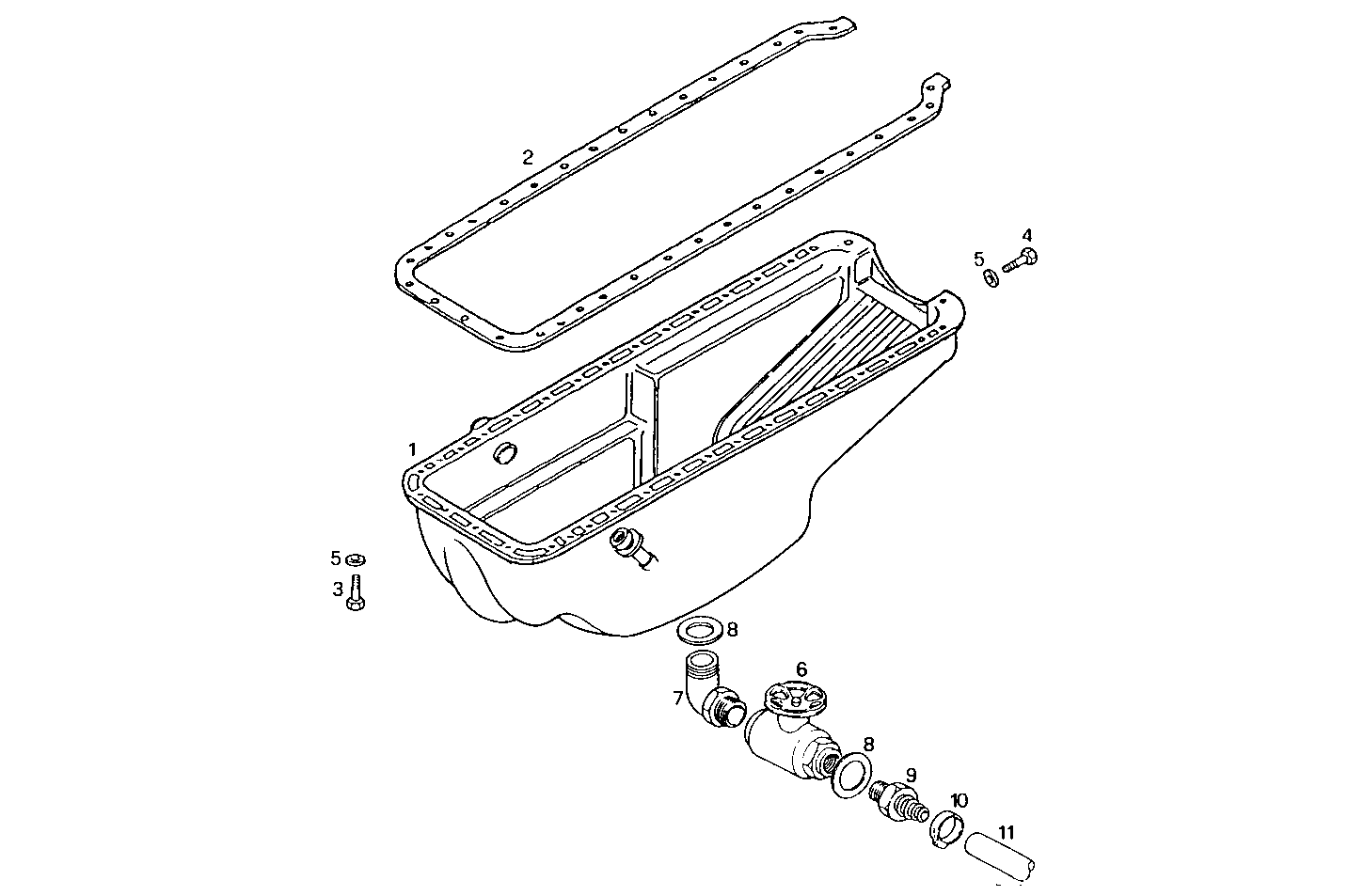

A49020005 DRAIN COCK
| Item | Part number | Description |
|---|---|---|
| 1 | 4638299 | OIL SUMP ASSY |
| 2 | 98493262 | OIL SUMP GASKET |
| 3 | 10929824 | HEXAGON BOLT M10X1,25X25 MM |
| 4 | 10923624 | SCREW |
| 5 | 17090174 | SPRING WASHER Ø10X20 MM |
| 6 | 4930837 | RETAINER COCK |
| 7 | 4930839 | PIPE SOCKET |
| 8 | 11271460 | GASKET Ø21X26X1,5 MM |
| 10 | 17764592 | CLIP Ø20/32 MM |
| 11 | 4931236 | OIL HOSE Ø24X18 - L=680 MM |
