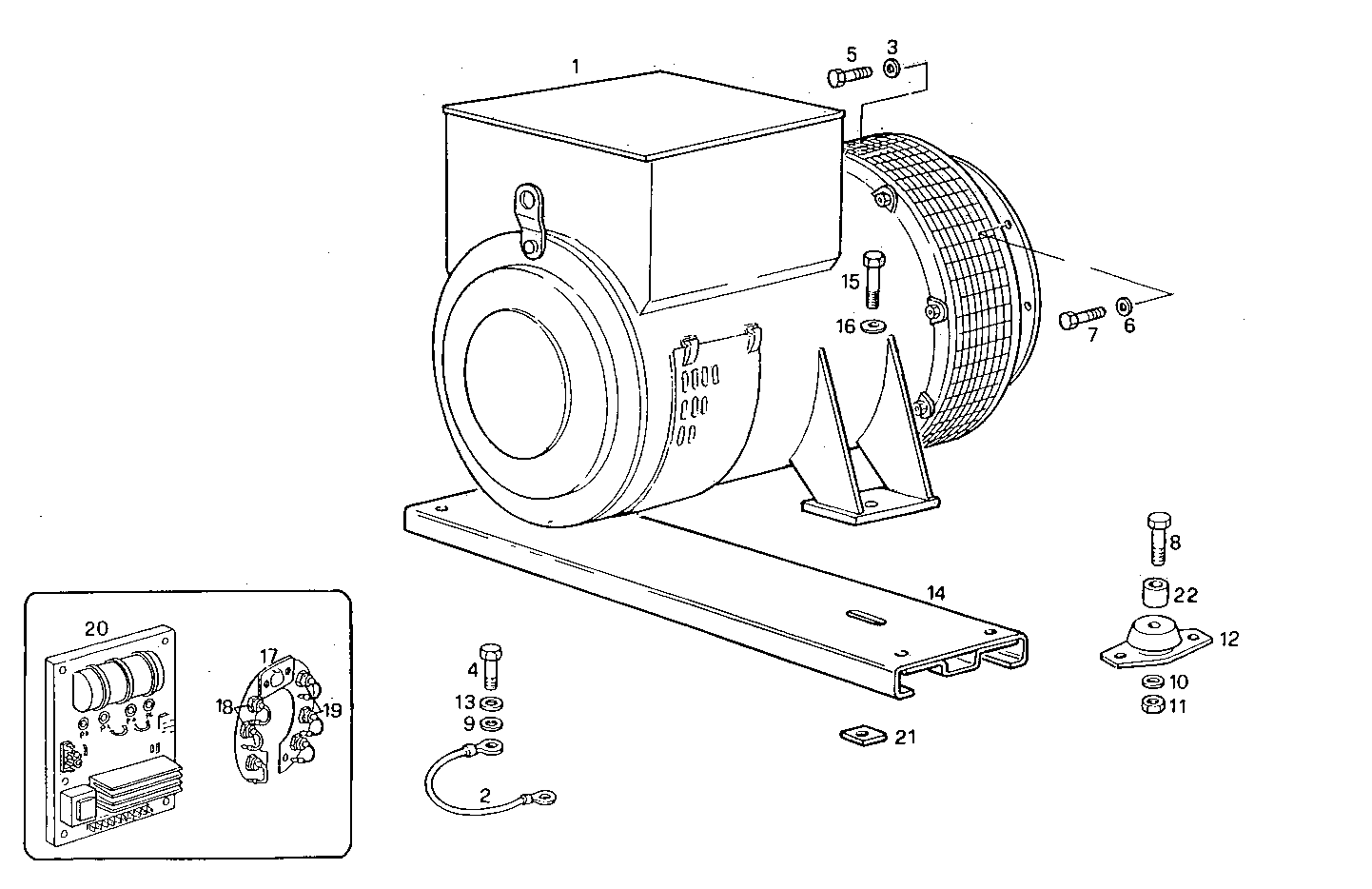

| Item |
Part number |
Description |
|
1 |
8016223 |
ELECTRIC MACHINE LSA 471 M4 50-60HZ |
|
2 |
8110852 |
EARTH WIRE |
|
3 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
4 |
16607424 |
SCREW M10X16 |
|
5 |
11234721 |
HEXAGON BOLT M10X1,25X45 MM |
|
6 |
17091174 |
SPRING WASHER Ø12X24 MM |
|
7 |
15540421 |
SCREW M12X1,25X30 |
|
8 |
16620224 |
SCREW M24X90 |
|
9 |
17095104 |
WASHER Ø10X21X2 MM |
|
10 |
17093171 |
WASHER Ø24X46X5,4 MM |
|
11 |
17039721 |
HEXAGON NUT M24 |
|
12 |
4955094 |
RUBBER PAD |
|
14 |
8019196 |
SUPPORT |
|
15 |
16620124 |
SCREW M24X3X80 |
|
16 |
17093174 |
WASHER Ø24X46X5,4 MM |
|
17 |
8092295 |
SUPPRESSOR |
|
18 |
8092297 |
DIODE - |
|
19 |
8092296 |
DIODE + |
|
20 |
8092292 |
EL.MACHINE VOLTAGE REGUL. |
|
21 |
8019197 |
PLATE |
|
22 |
8016025 |
SPACING BAR |
