GE8210SRi27.01A955

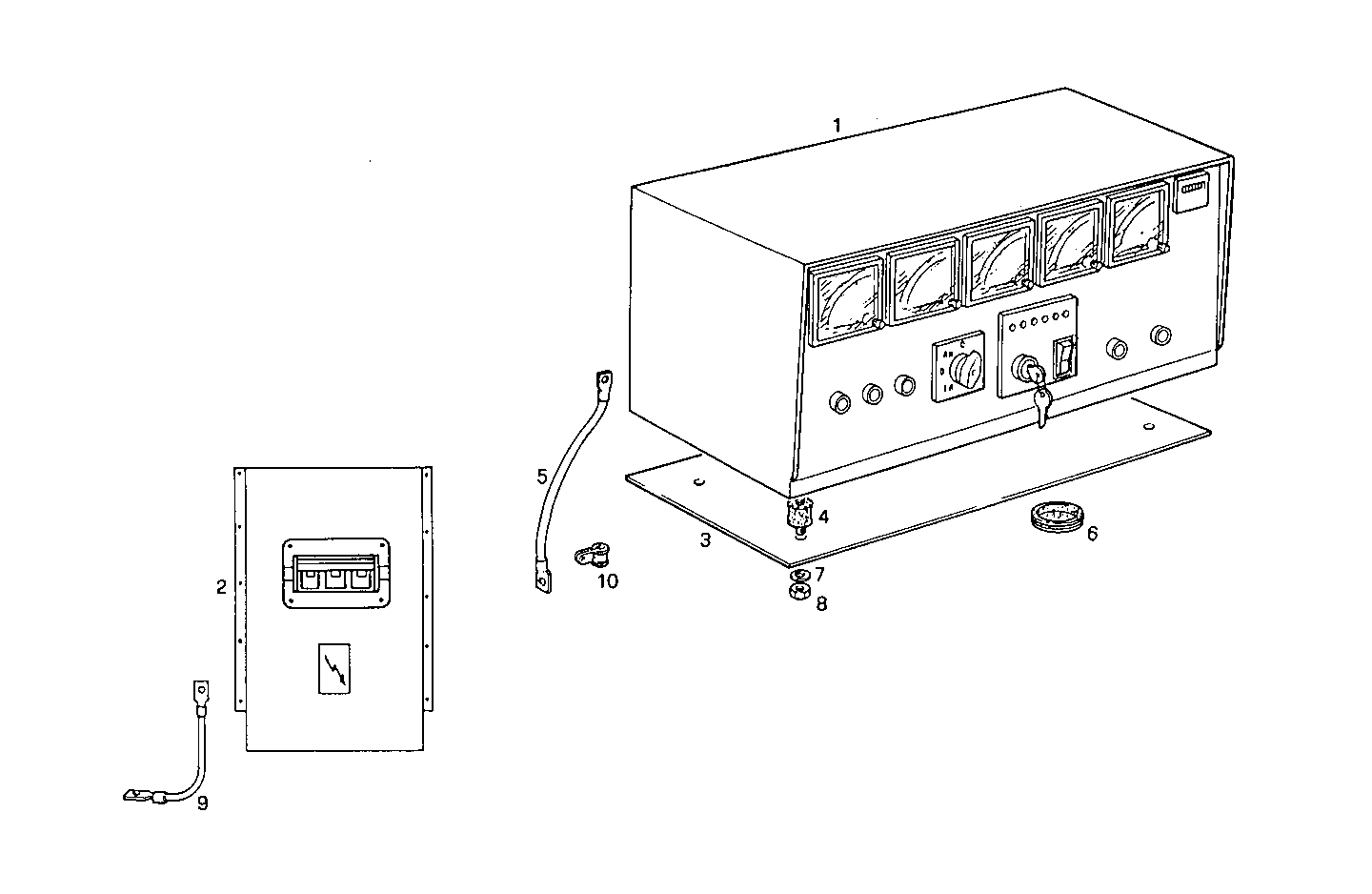

A60320005 MANUAL CONTROL BOARD FOR ELECT. MACHINE - LEROY

Iveco/FPT MANUAL CONTROL BOARD FOR ELECT. MACHINE

Item Part number Description
1 8023928 CONTROL BOARD ASSY 220V 50-60Hz
2 8023931 SWITCH 1000A
3 8019273 COVER
4 8104155 DOWEL
5 8006993 EARTH WIRE
6 8113214 INSULATING RING
7 17088474 WASHER Ø6X12 MM
8 17037821 HEXAGON NUT M6X1
9 8104707 WIRE/CABLE
10 17314890 CLIP
