GE8210SRi27.01A955

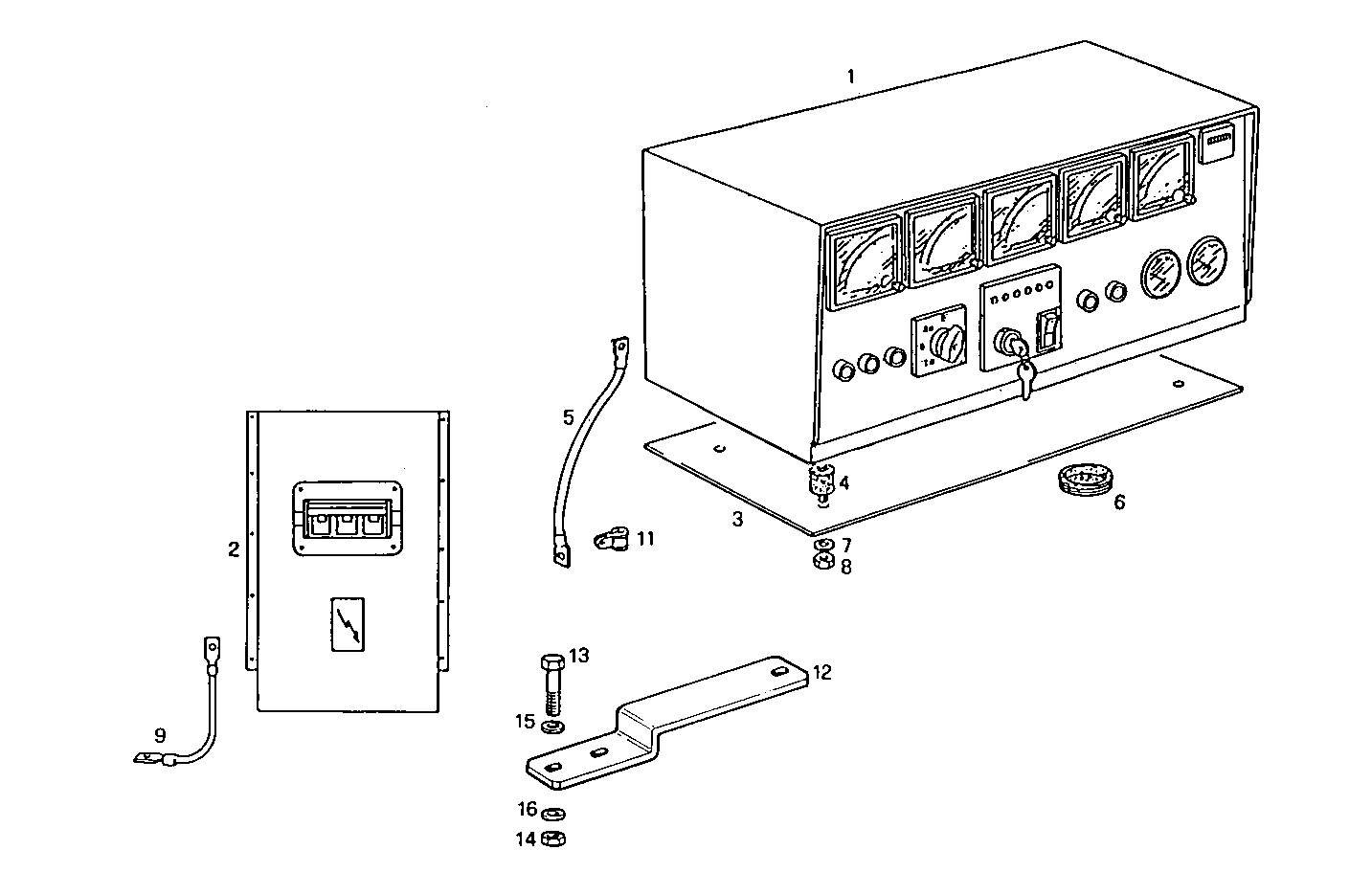

A60330003 MANUAL CONTROL BOARD FOR ELECT. MACHINE - MARELLI (GAC-HUGLI)
| Item | Part number | Description |
|---|---|---|
| 1 | 8023928 | CONTROL BOARD ASSY 220V 50-60Hz |
| 2 | 8023932 | SWITCH 1000A |
| 3 | 8019260 | COVER |
| 4 | 8104155 | DOWEL |
| 5 | 8006993 | EARTH WIRE |
| 6 | 8113214 | INSULATING RING |
| 7 | 17088474 | WASHER Ø6X12 MM |
| 8 | 17037821 | HEXAGON NUT M6X1 |
| 9 | 8110852 | EARTH WIRE |
| 11 | 17314890 | CLIP |
| 12 | 8021249 | RETAINER |
| 13 | 16610124 | HEXAGON BOLT M12X40 MM |
| 14 | 17038421 | HEXAGON NUT M12 (8) |
| 15 | 17091074 | WASHER Ø12X24X2,8 MM |
| 16 | 17095204 | WASHER Ø12X20 MM |
